The new Azure tripod series from Leofoto combines state-of-the-art design principles with well thought-out features for photographers who value stability, flexibility and a compact pack size. Whether for outdoor shooting, studio use or ground-level macro photography, Azure tripods are true all-rounders.

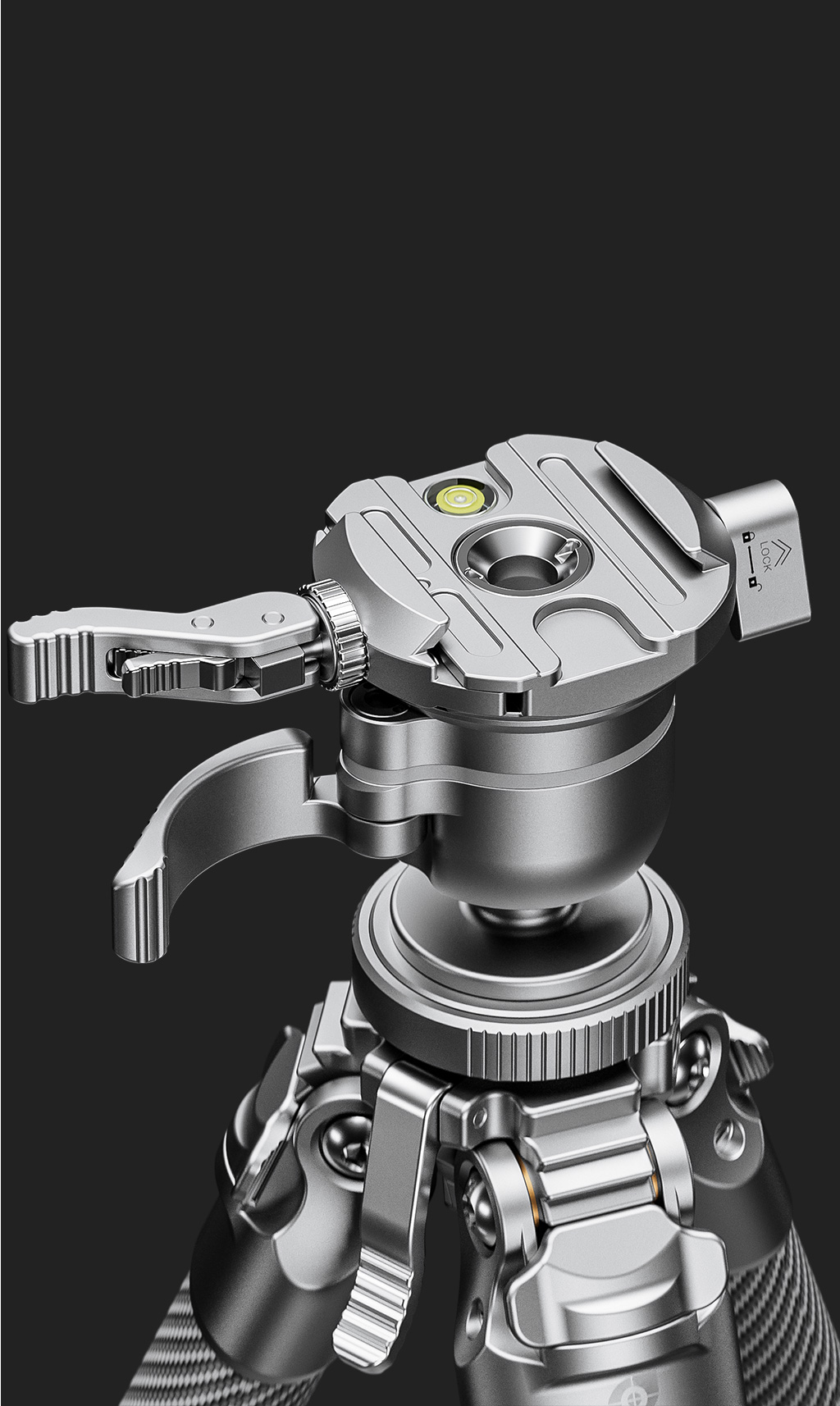

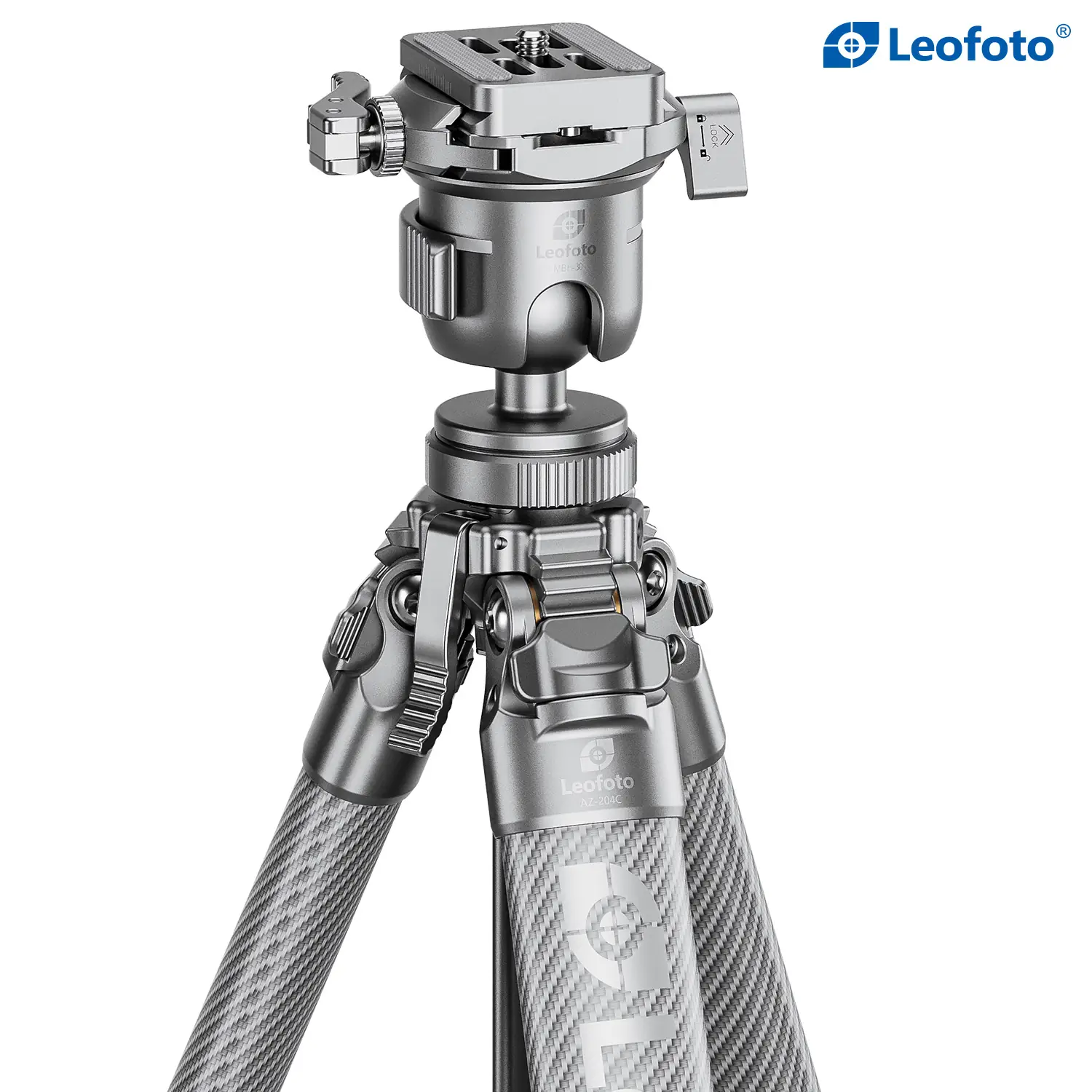

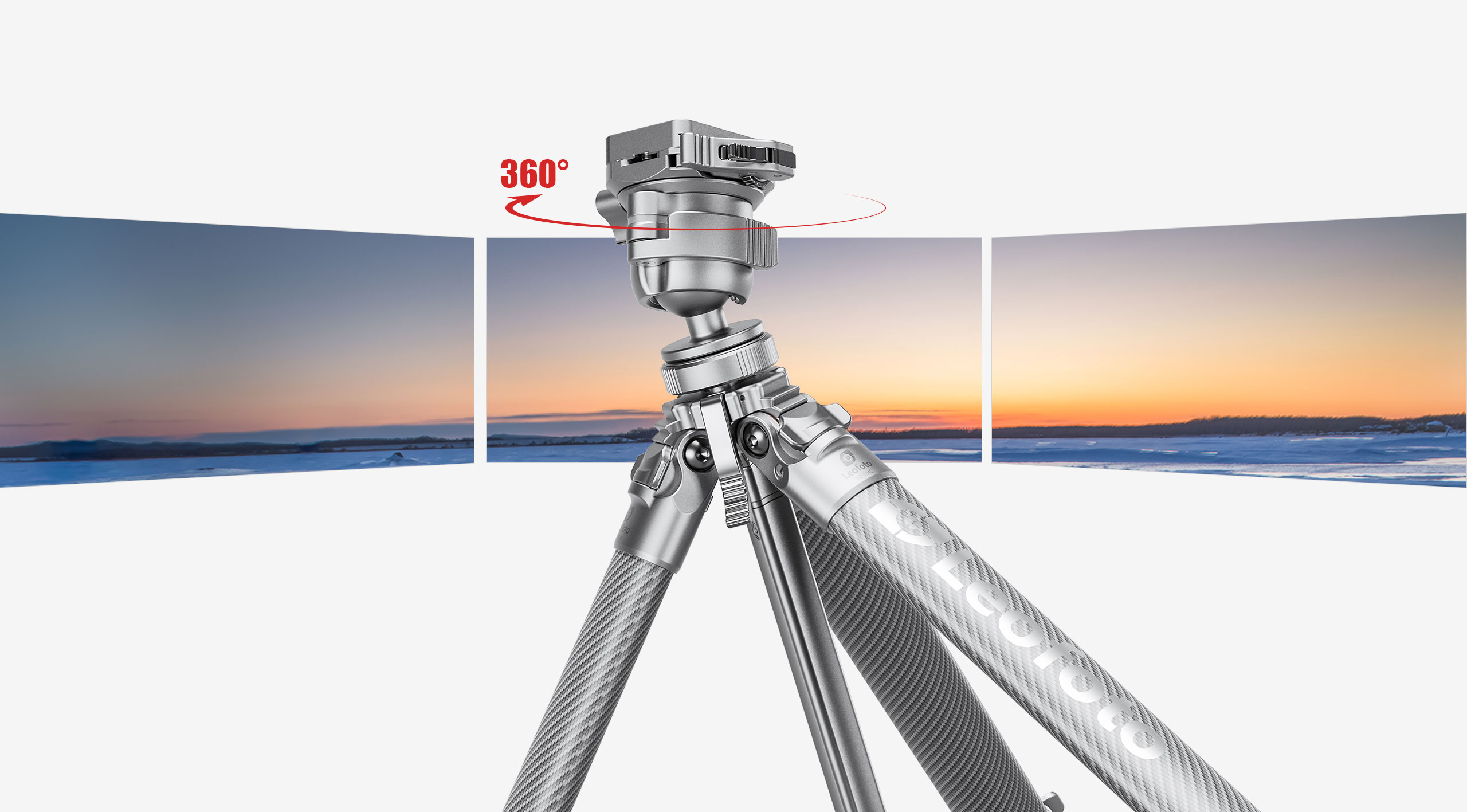

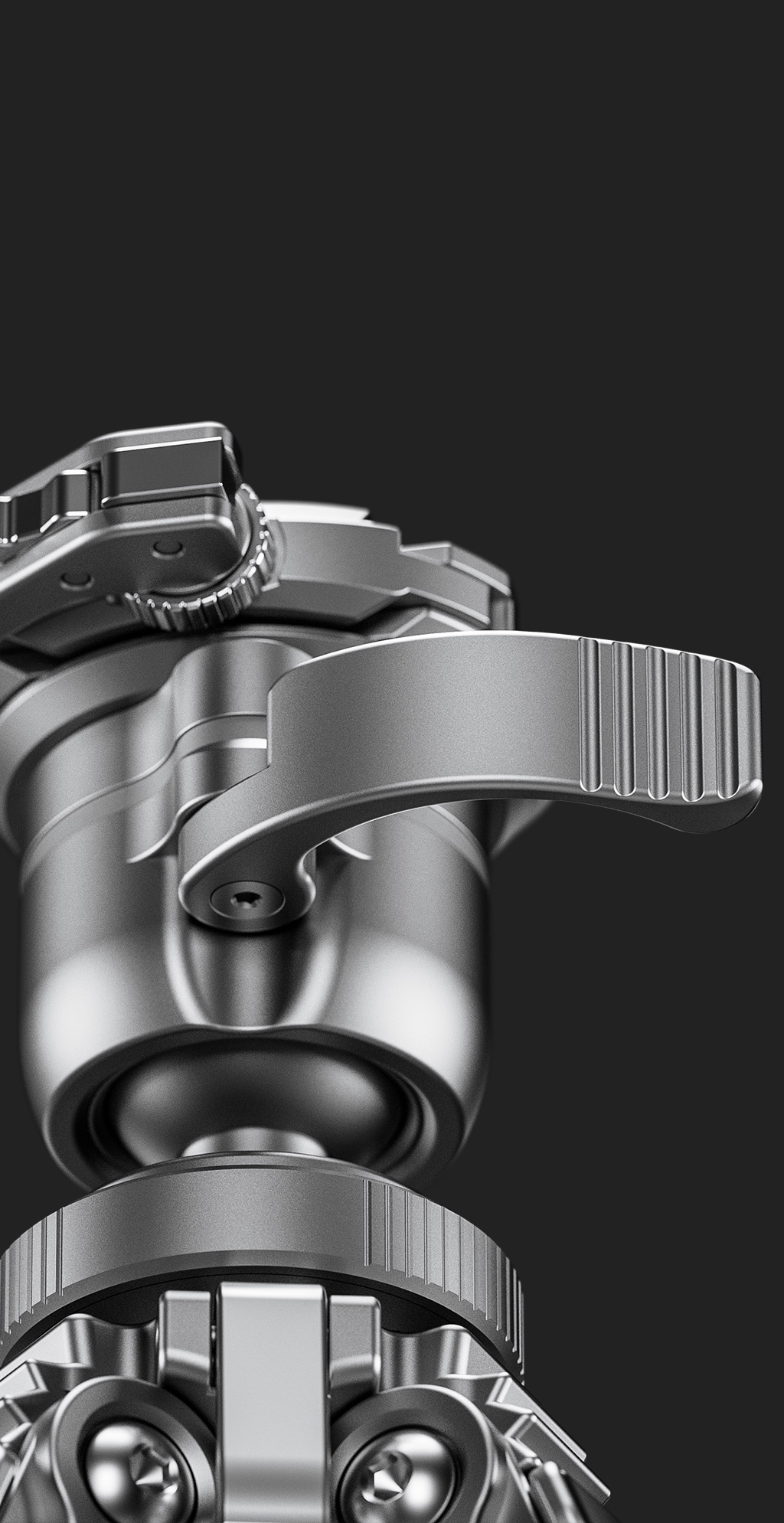

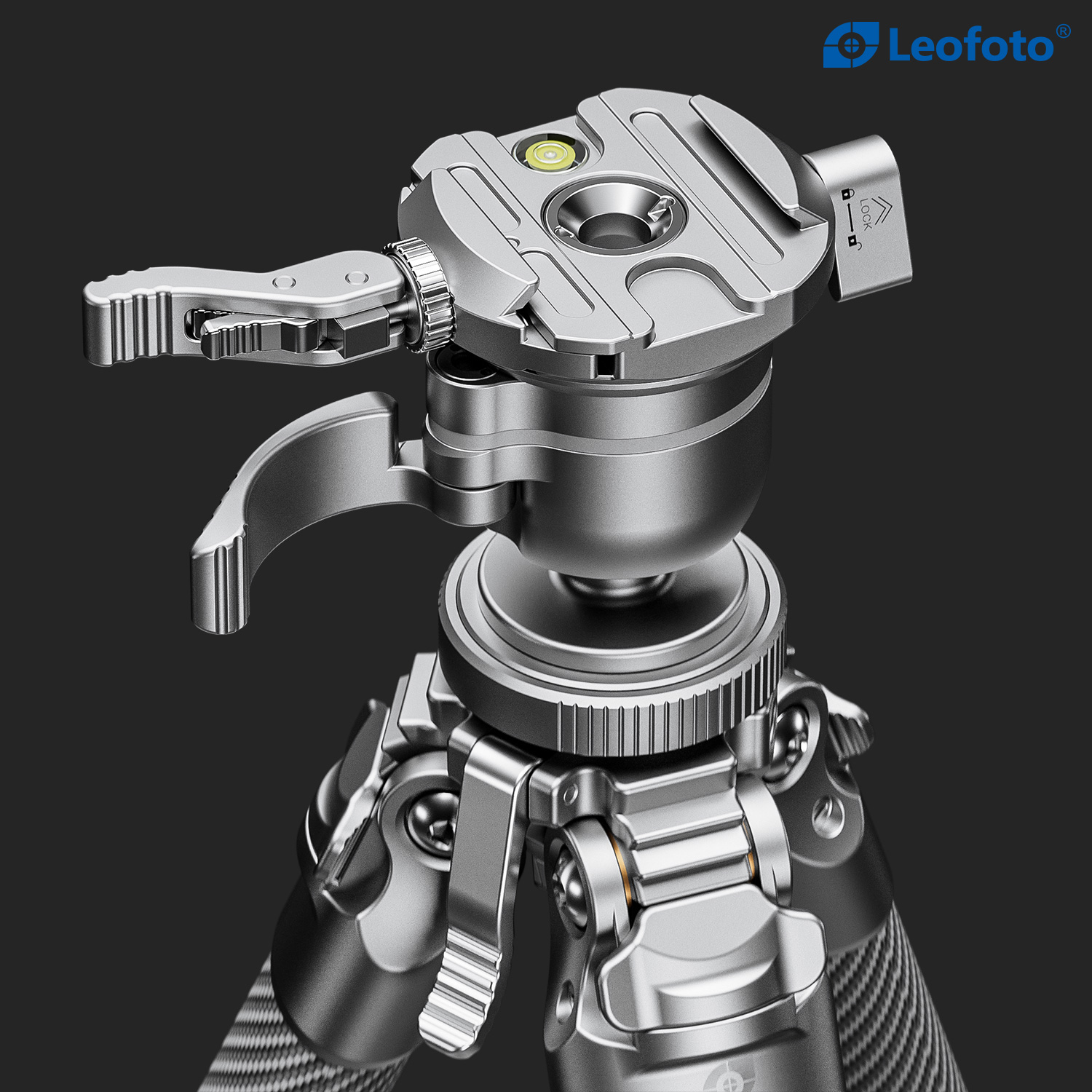

Lightweight yet exceptionally rigid, the MBH-30 features a 30mm ball and full 360° panoramic rotation. Both the ball and clamp use quick-release lever locks, all finished in a sleek matte silver-gray metallic design.

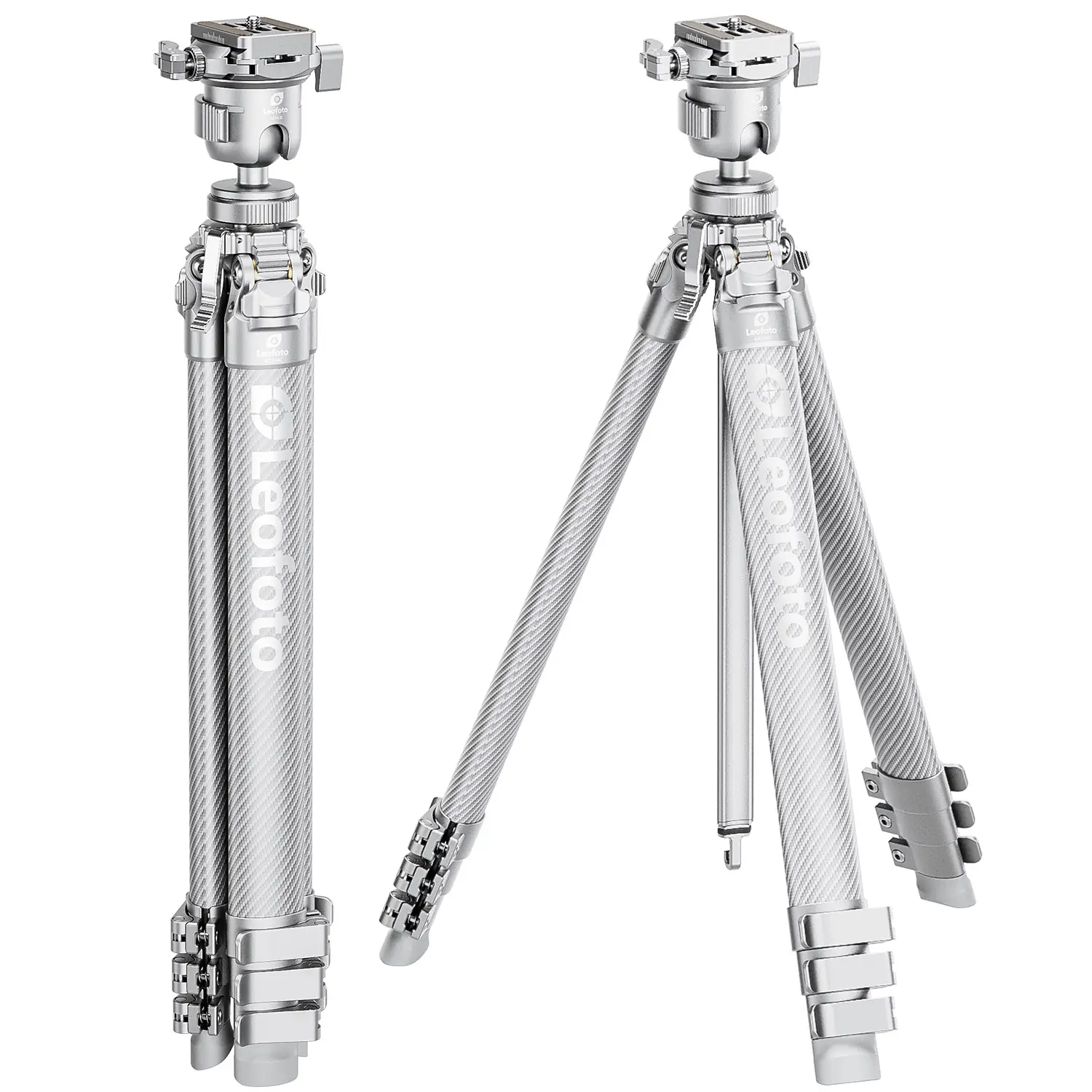

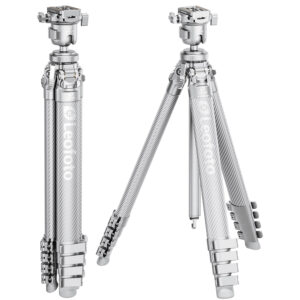

AZ-204C+MBH-30

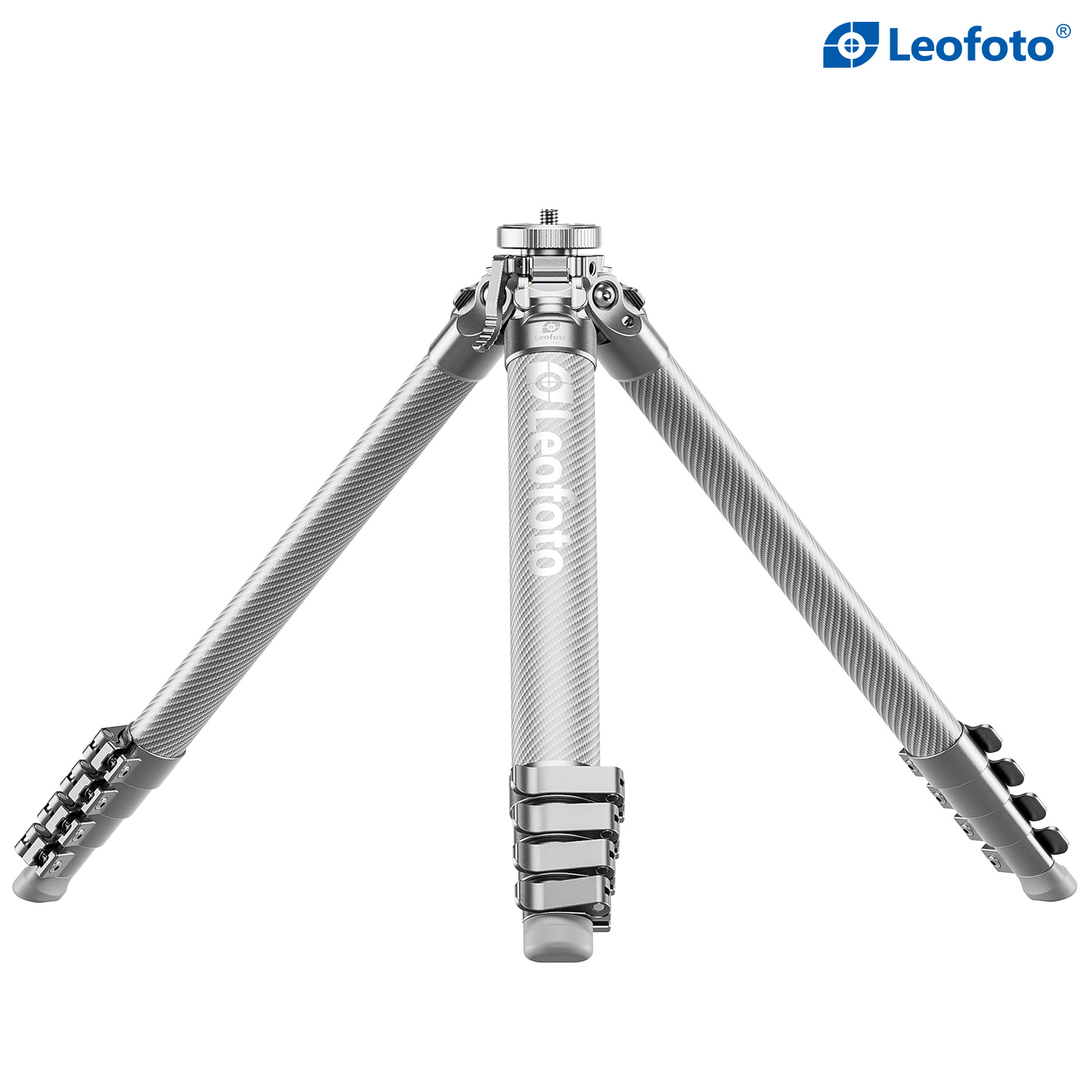

Ultra-Compact Tripod
The new Azure tripod series from Leofoto combines state-of-the-art design principles with well thought-out features for photographers who value stability, flexibility and a compact pack size. Whether for outdoor shooting, studio use or ground-level macro photography, Azure tripods are true all-rounders.

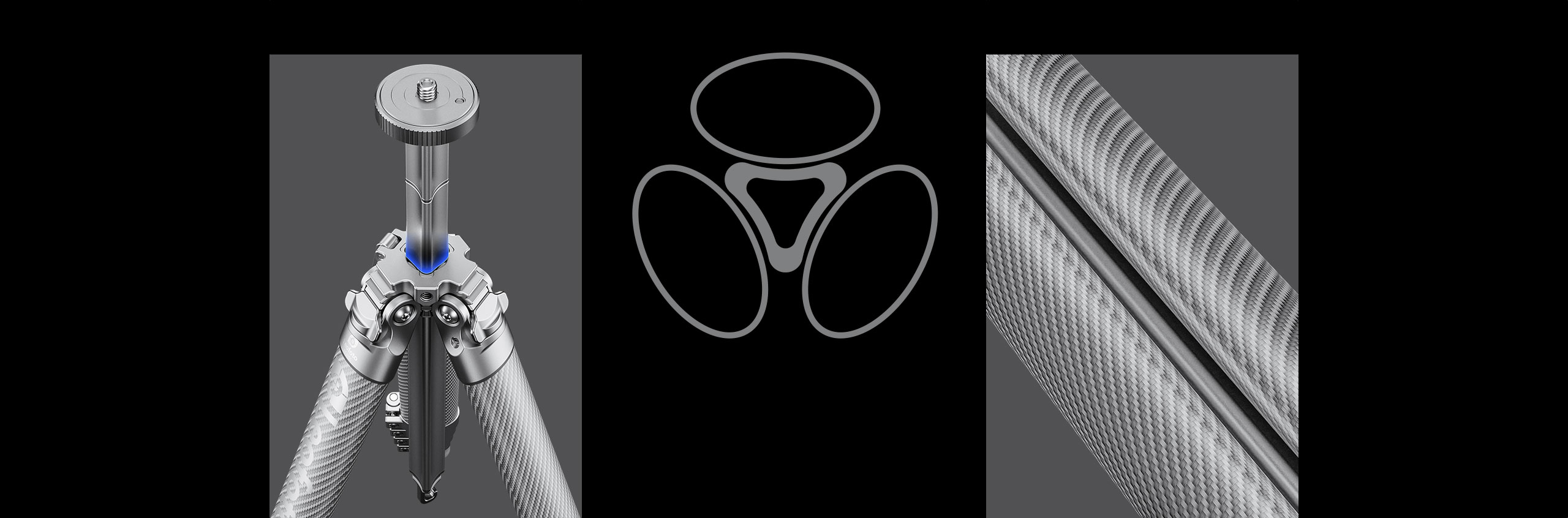

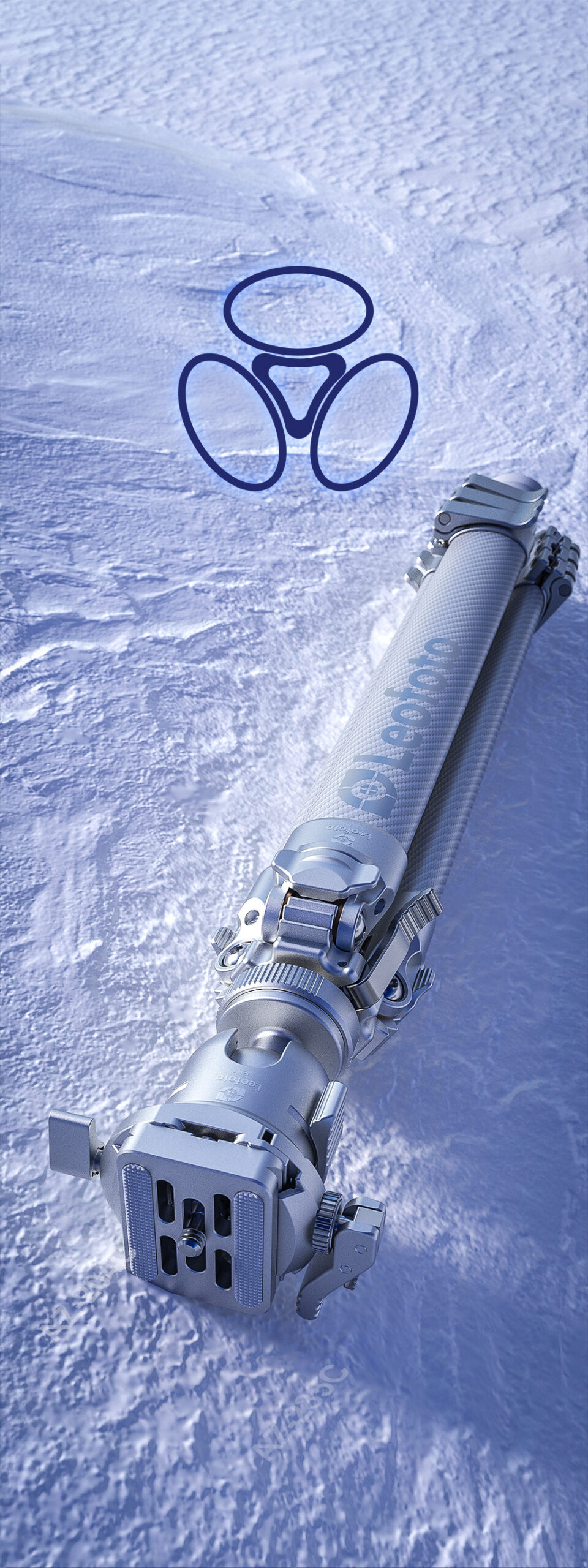

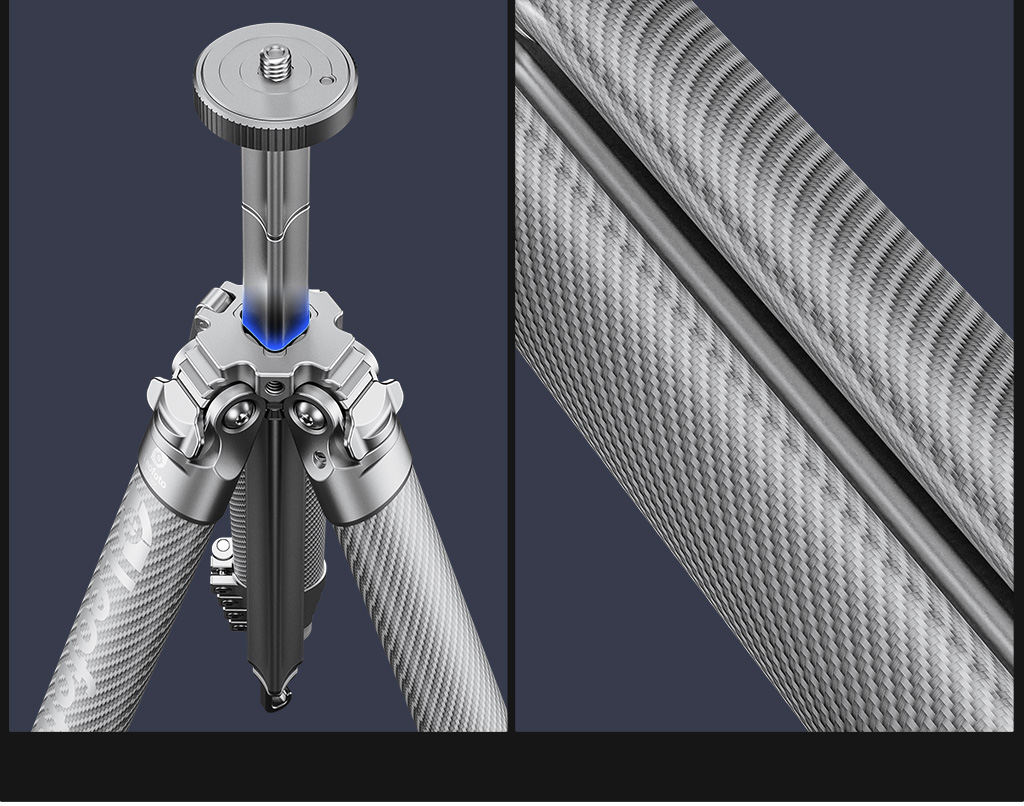

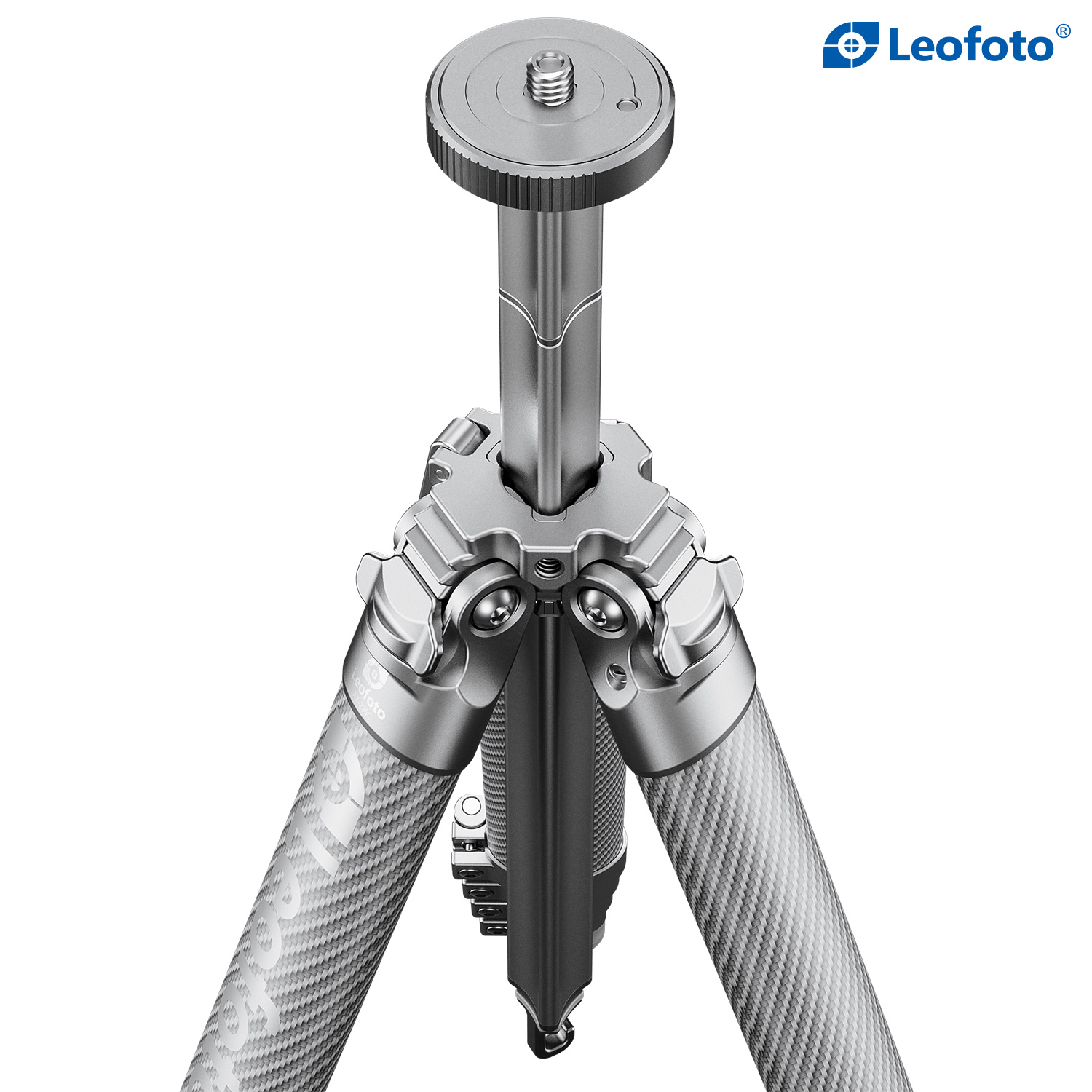

“Y”-shaped Center Column

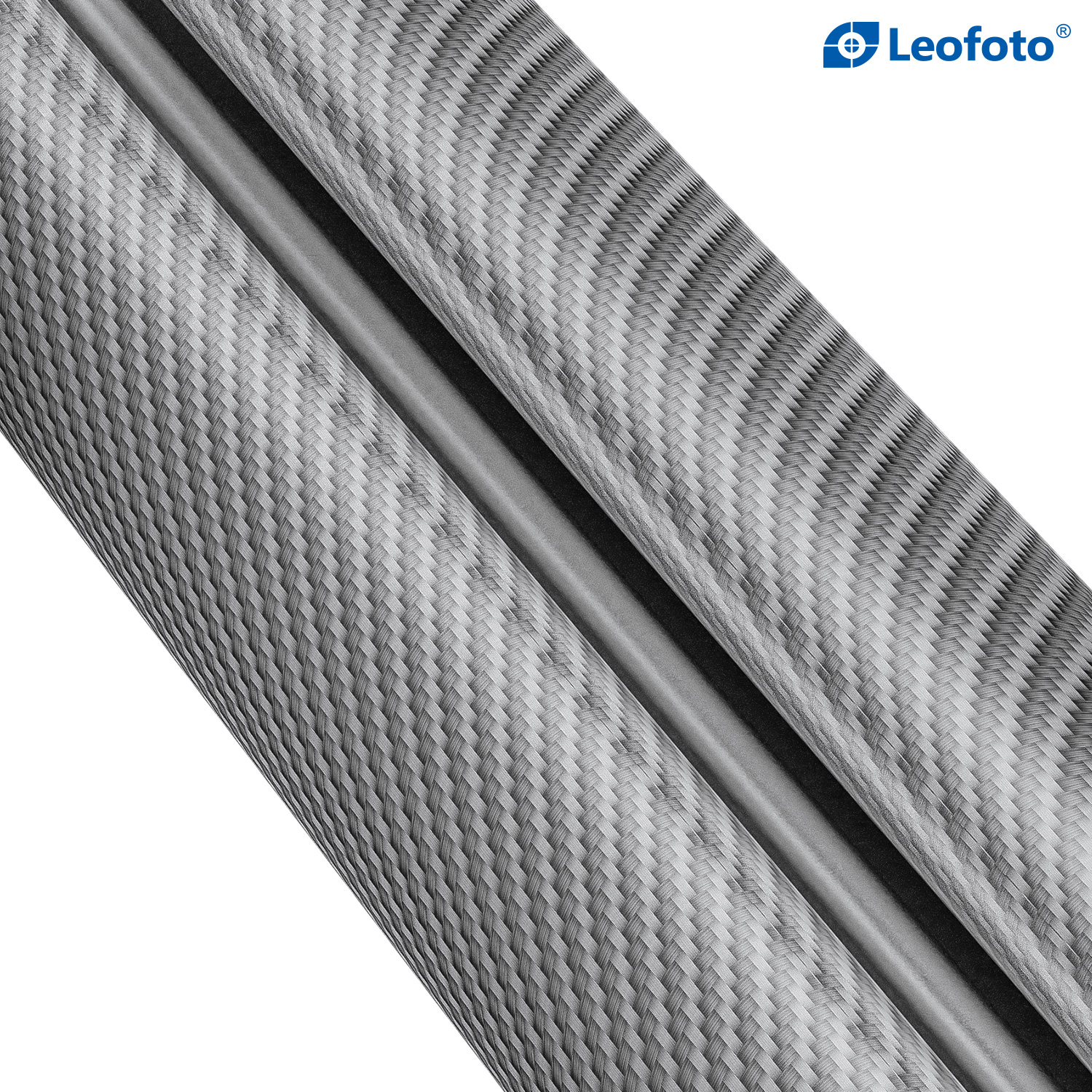

Oval Leg Tubes
Center column is designed to be Y shaped to reduce the space of the tripod and make the tripod more tight and compact without sacrificing the stability of the tripod.

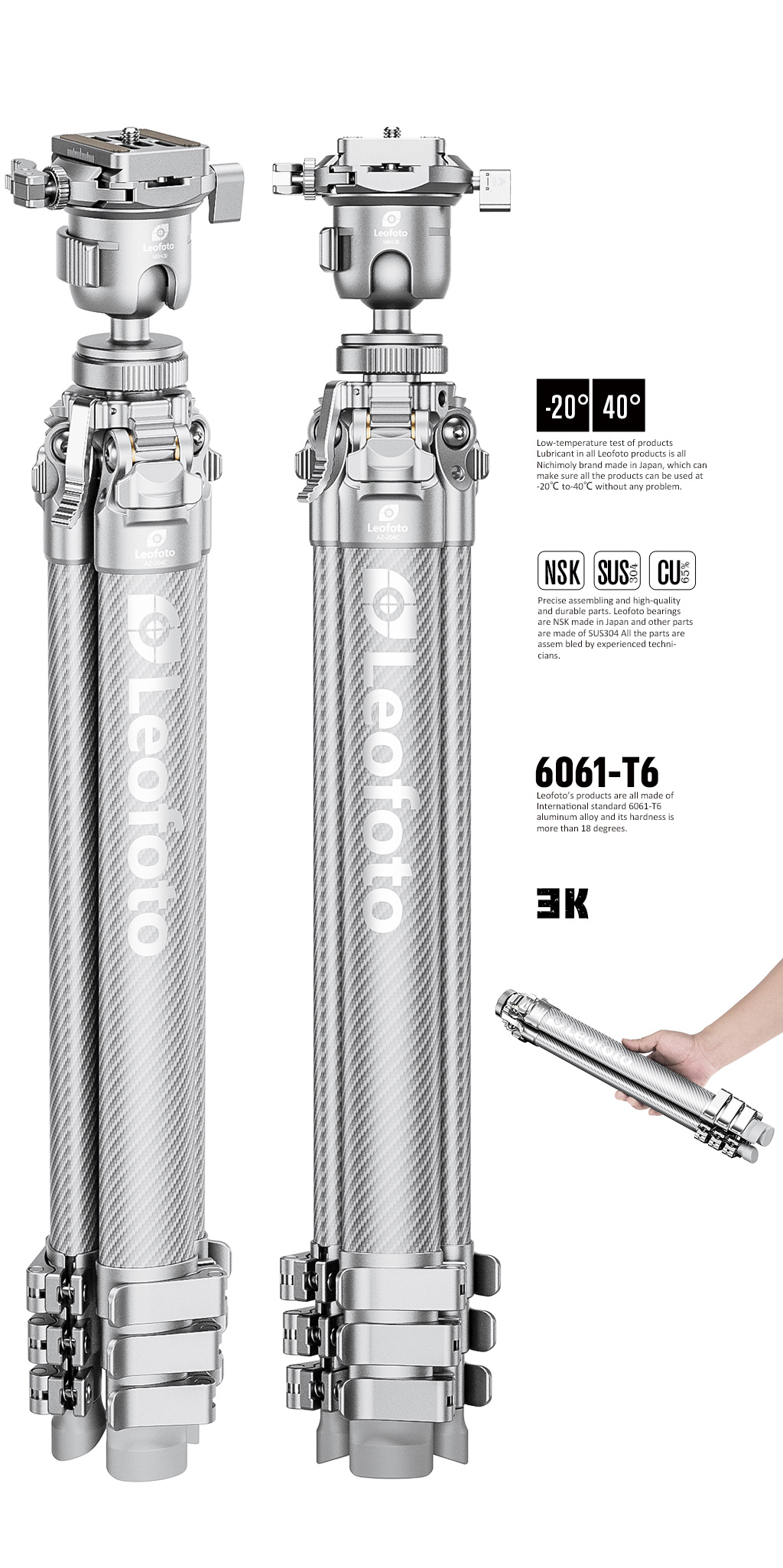

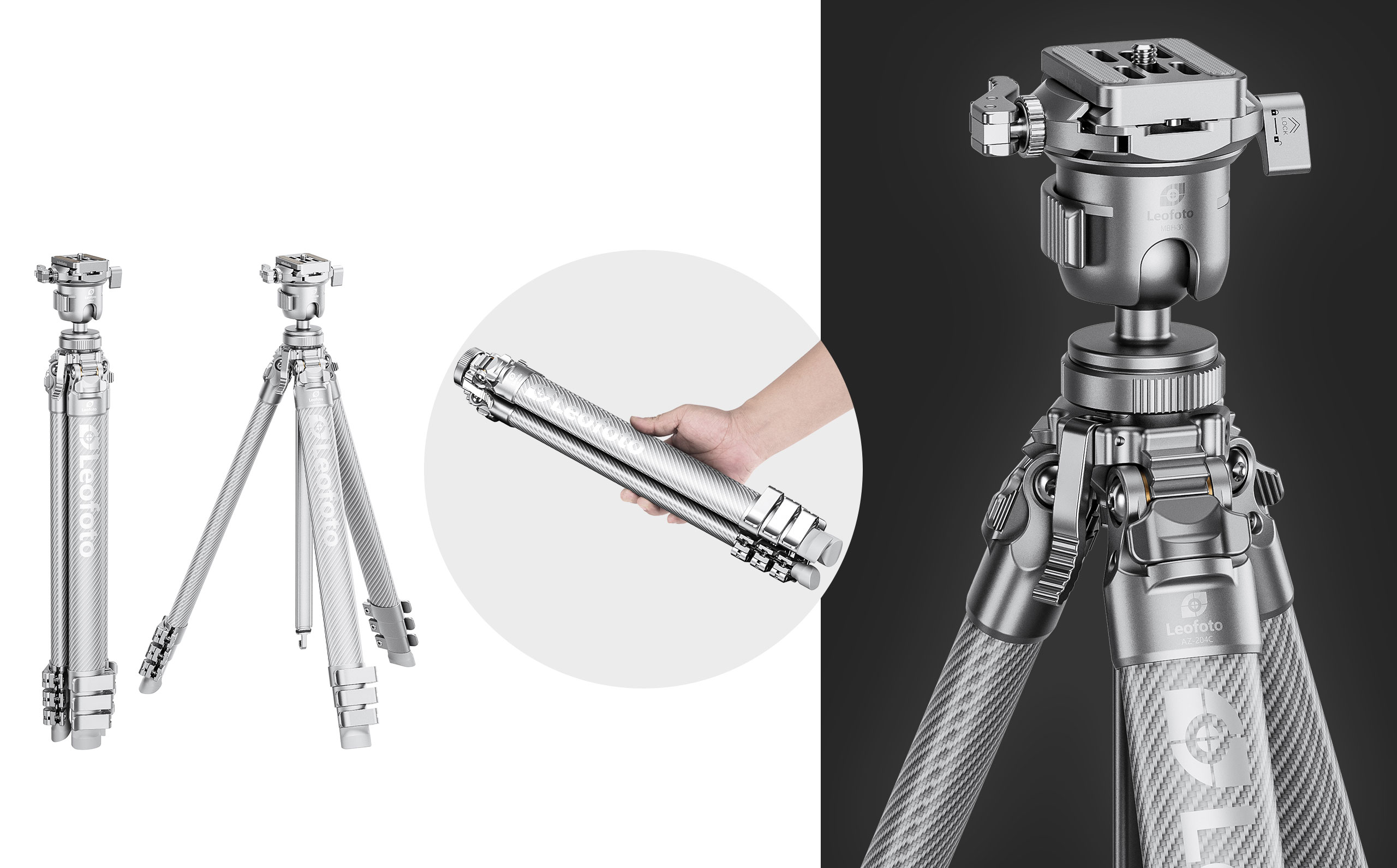

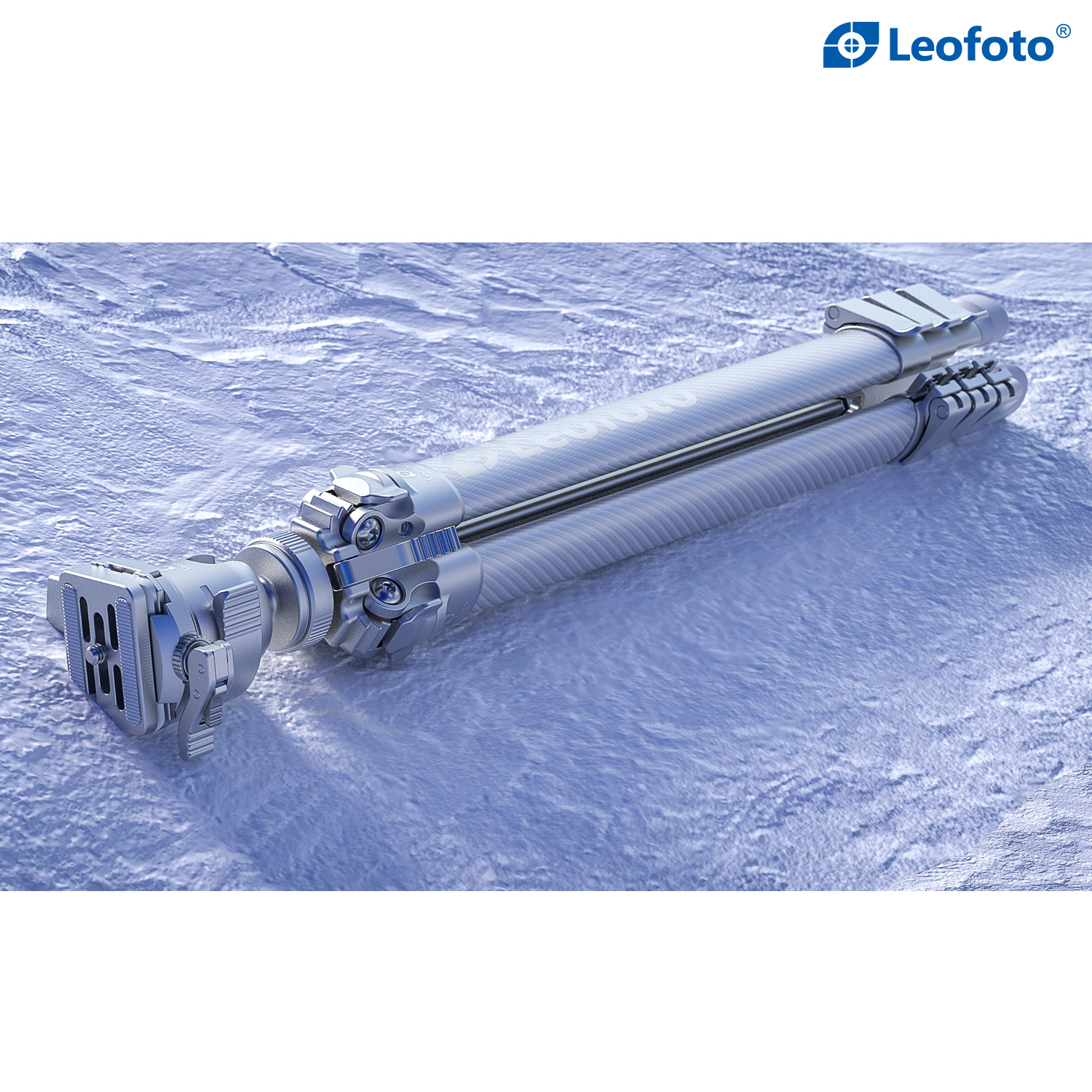

Ultra-compact and fits in one hand
Y-column + oval legs deliver pro-level stability in half the space. Navigate tight studios, staircases, or tabletops effortlessly. Ditch bulky tripods.

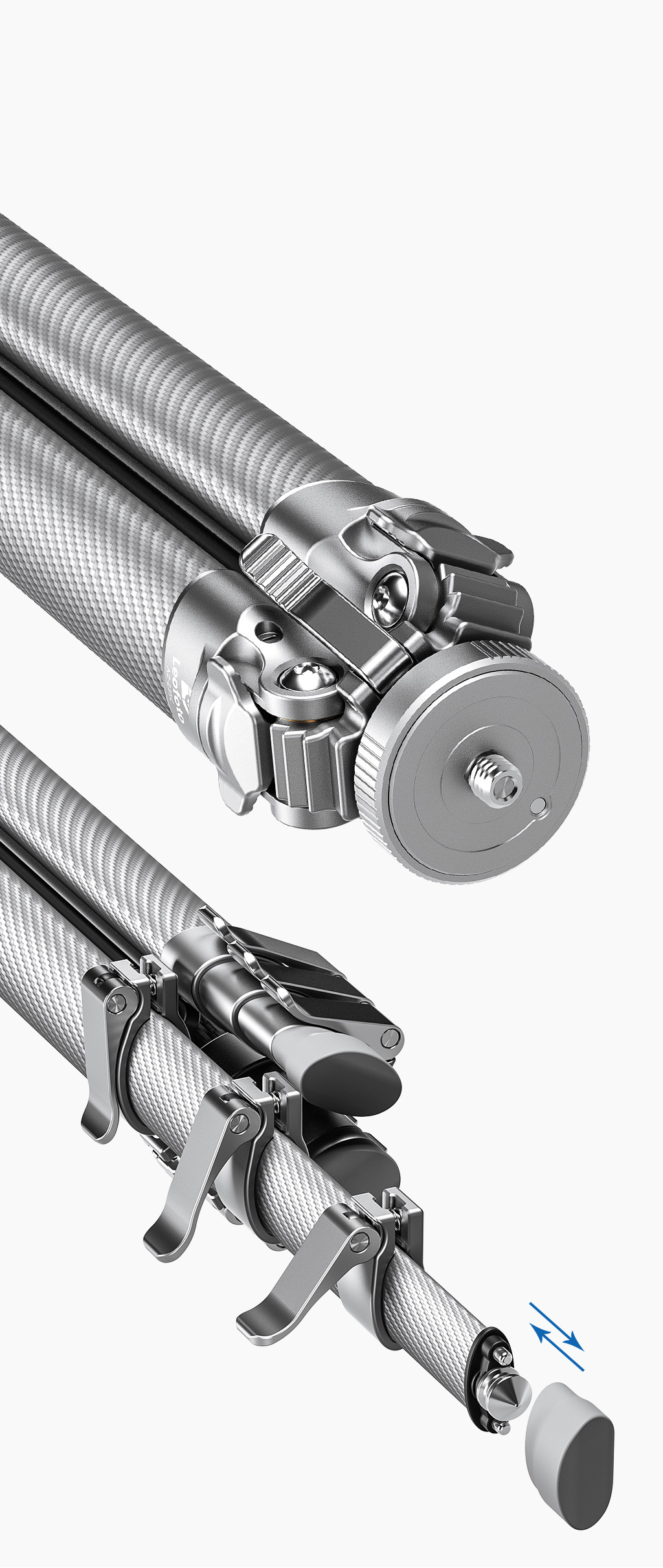

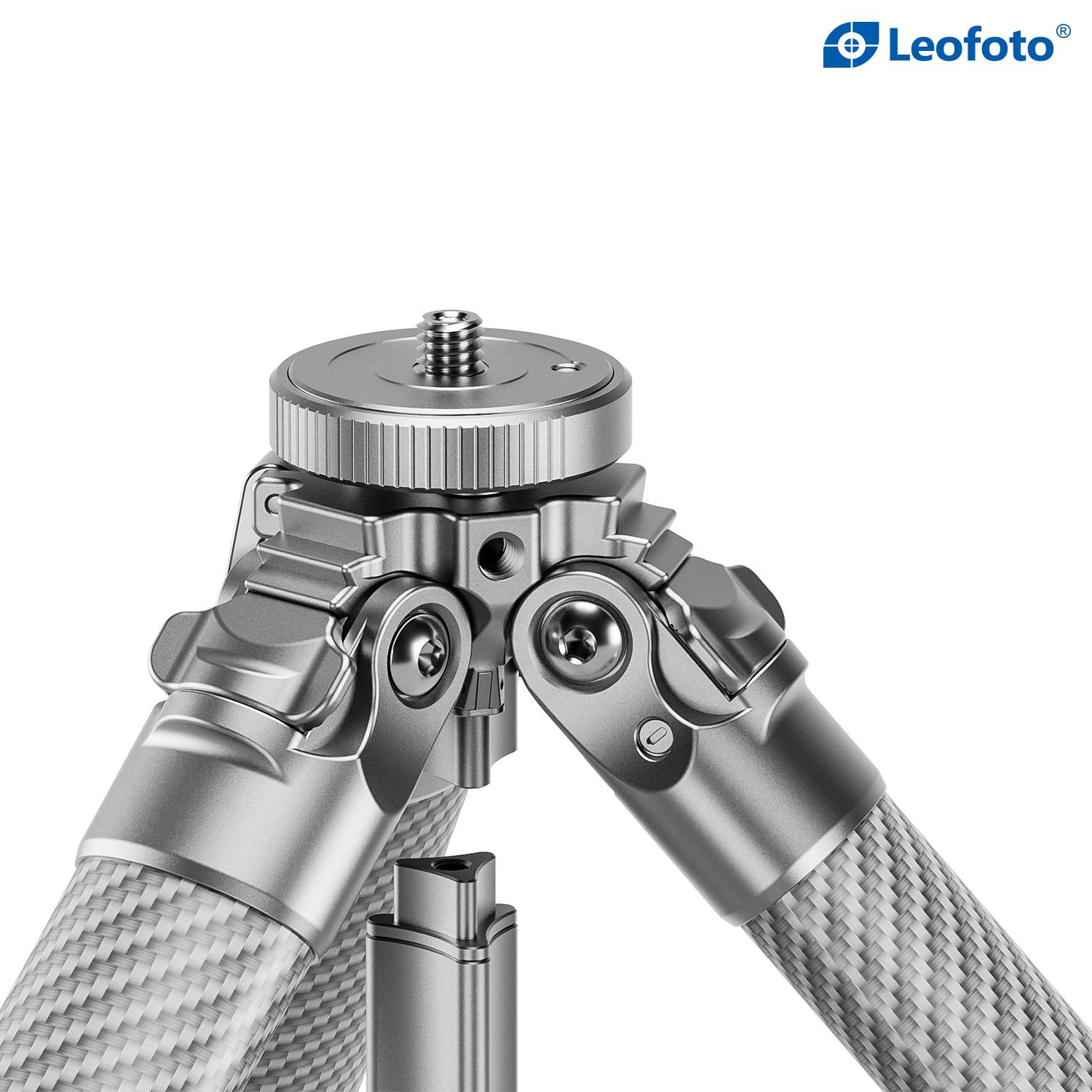

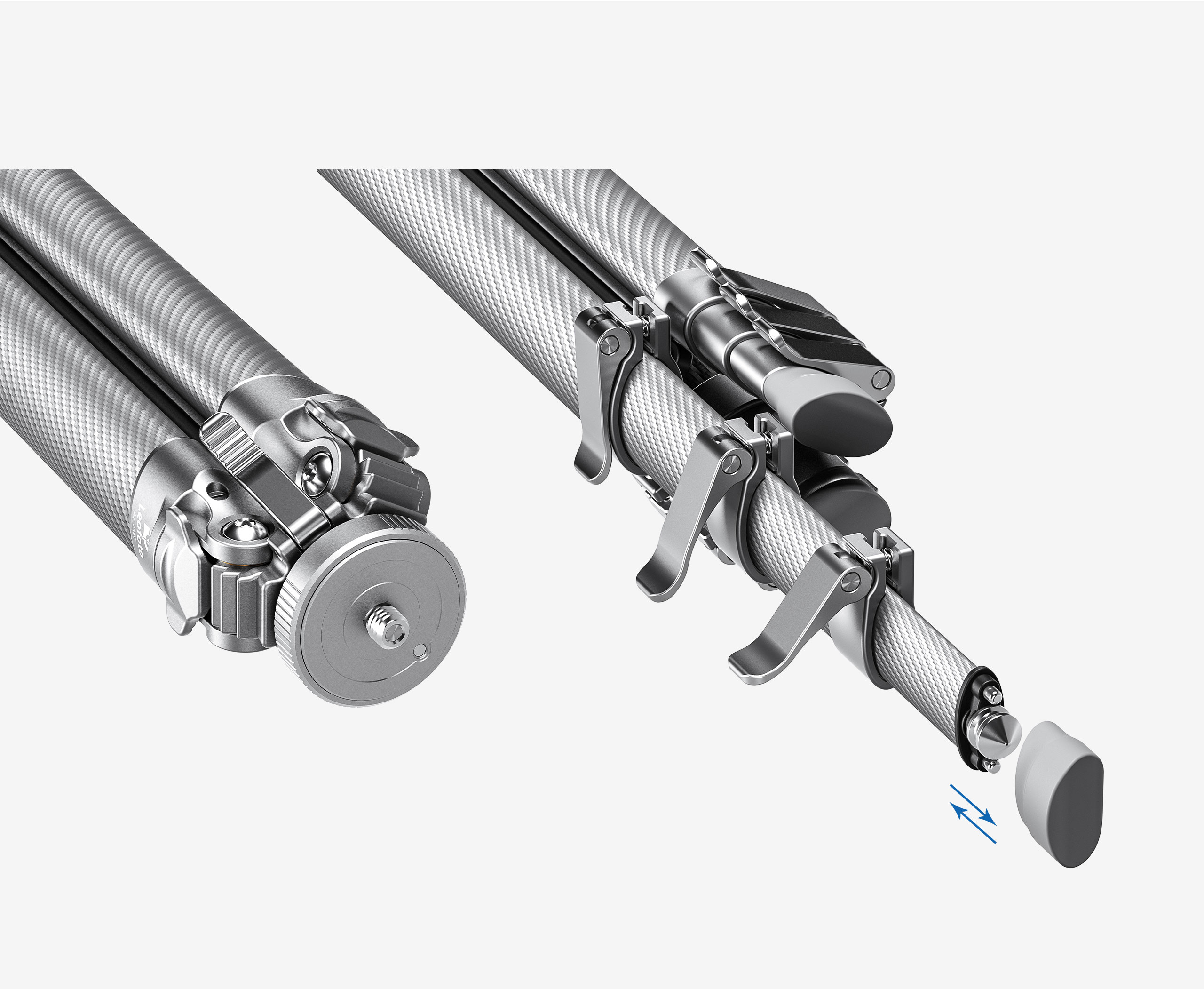

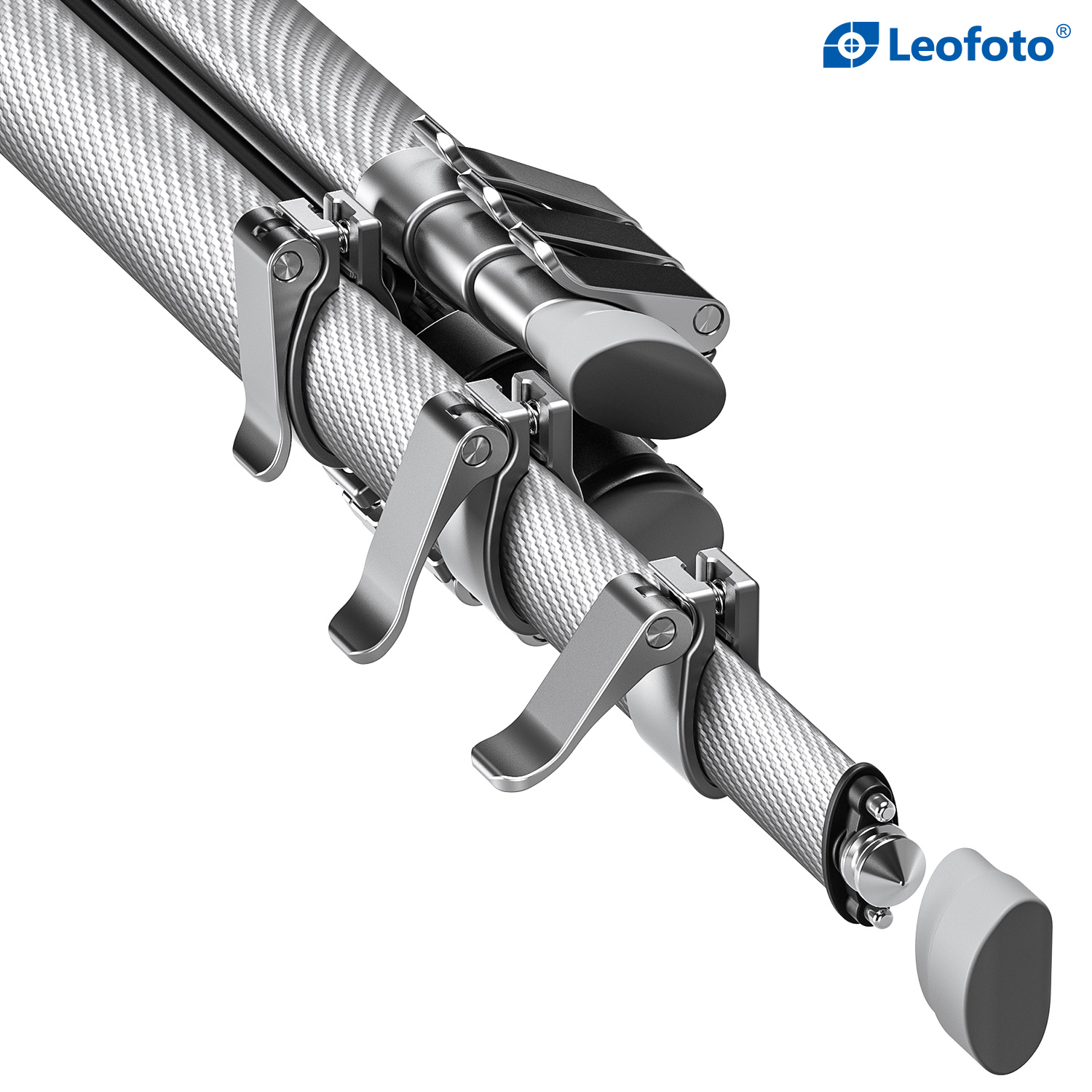

Flip Leg Lock System
The re-designed flip leg locking system optimizes efficiency during operation, and further compresses the size profile of this tripod.
Compact and lightweight
20Kg stated maximum payload

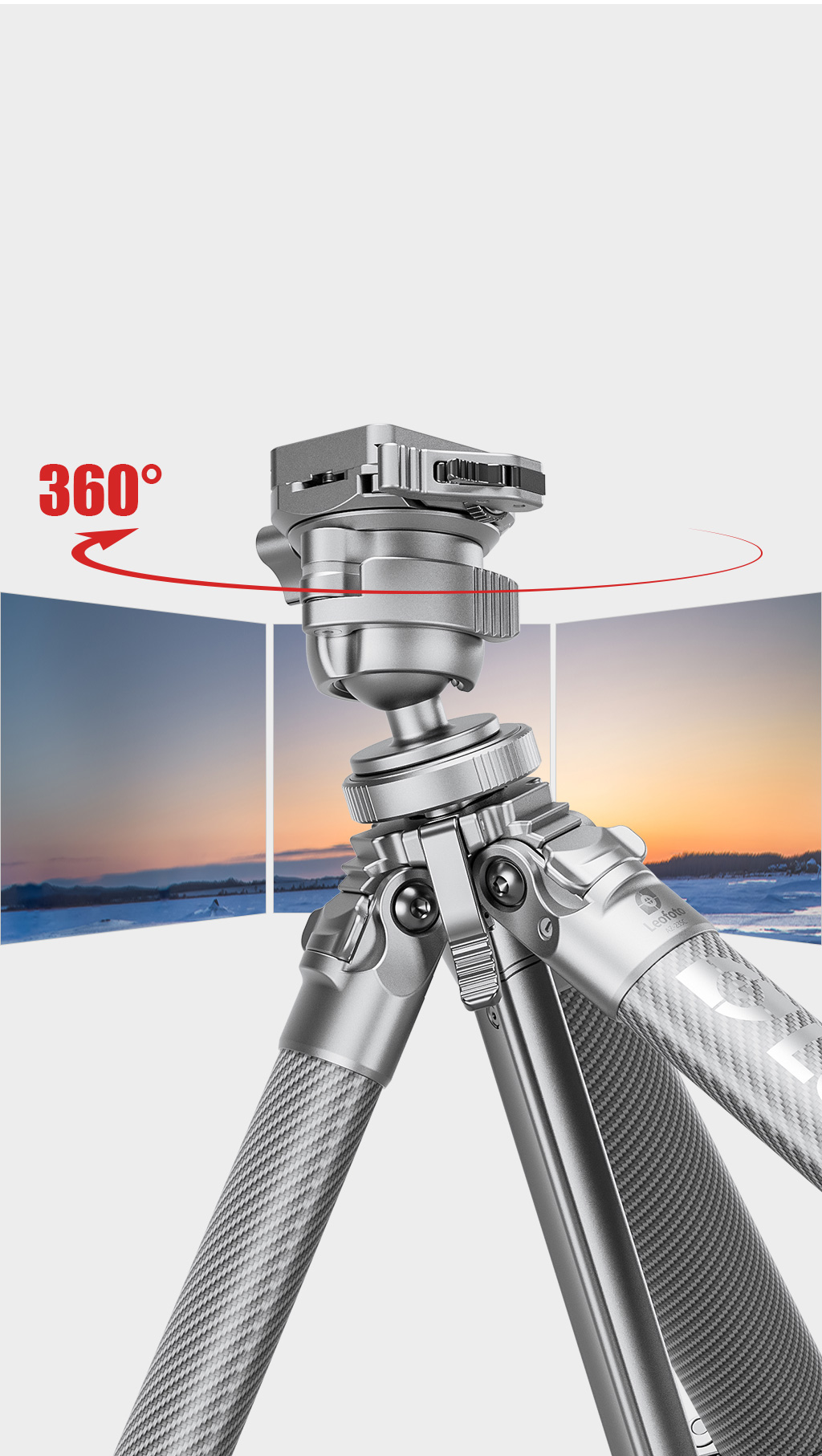

Optional geared 360 degrees
Compatible with Arca-Swiss style components

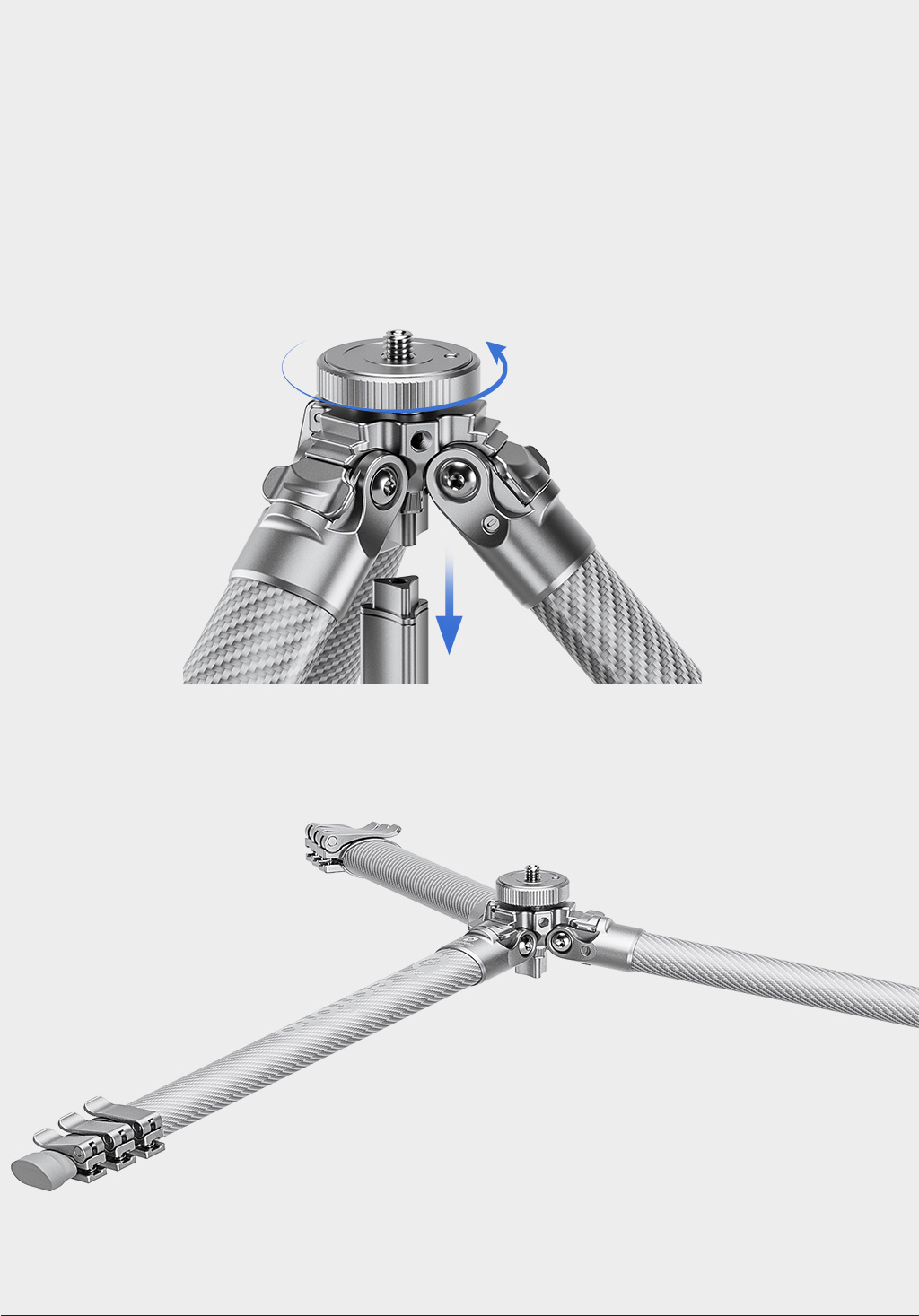

Low Angle

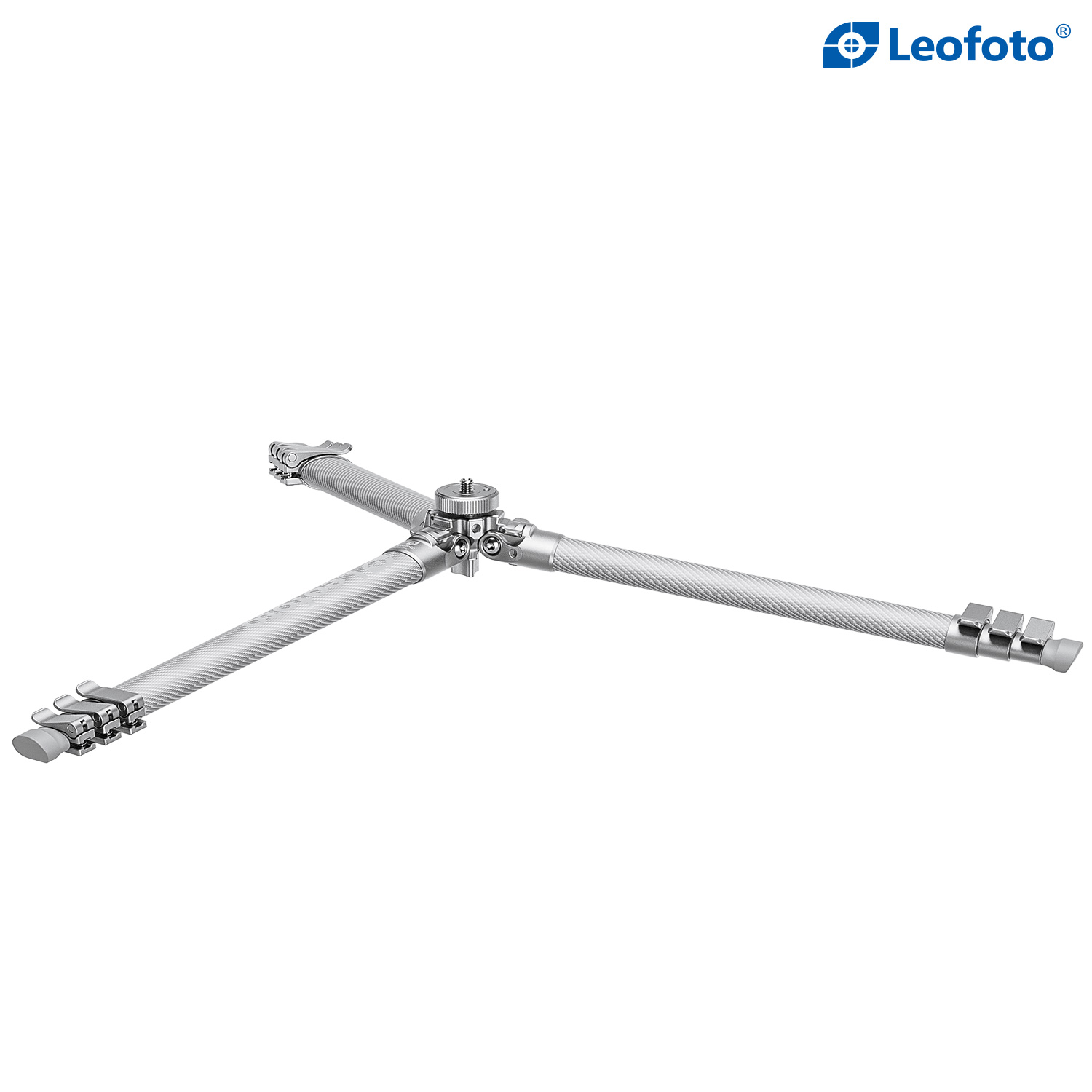

The center column consists of both a long and a short section. By turning the outer ring of the mounting plate counterclockwise, the long section can be removed, enabling ultra-low-angle shooting.
Compact and lightweight
20Kg stated maximum payload
Optional geared 360 degrees
Compatible with Arca-Swiss style components

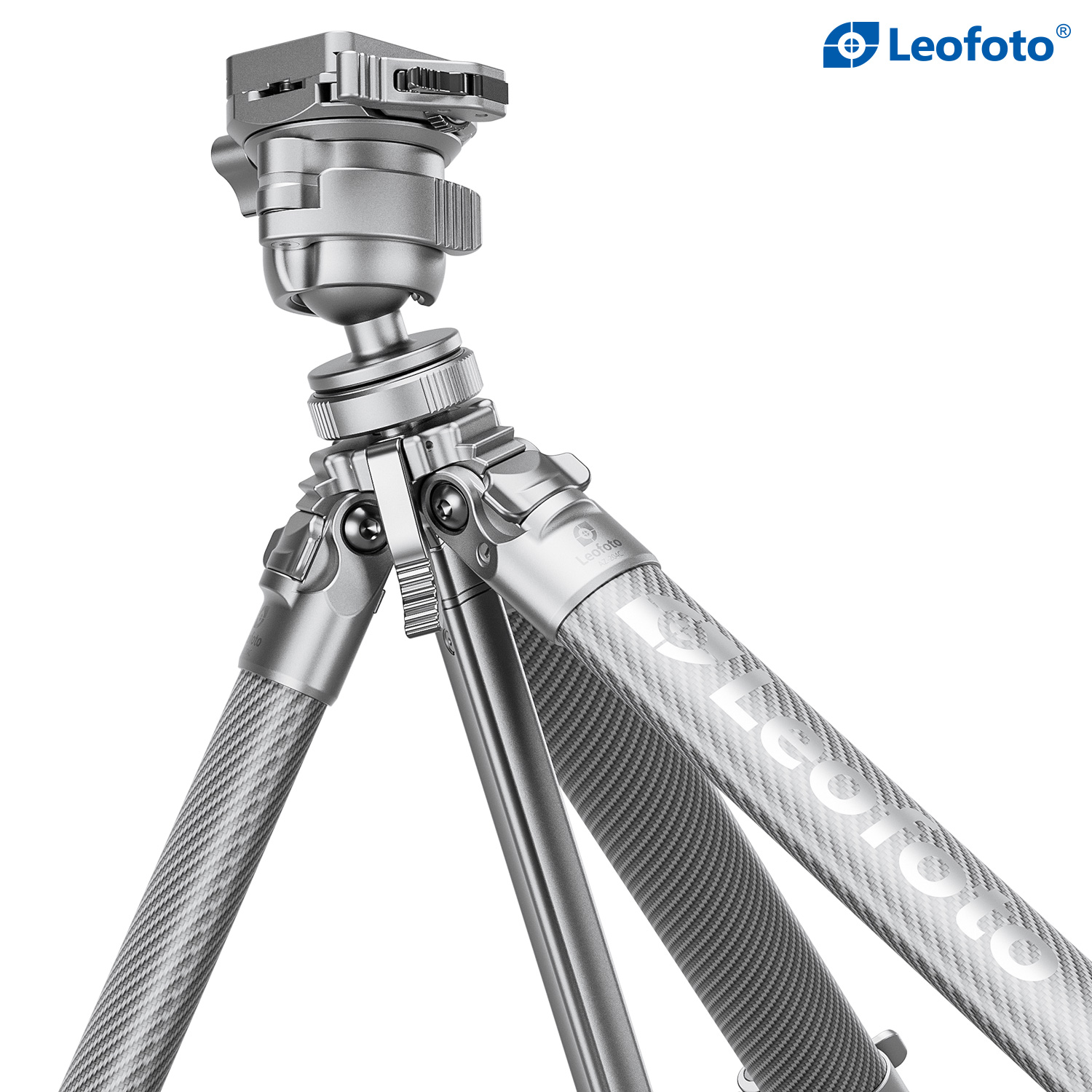

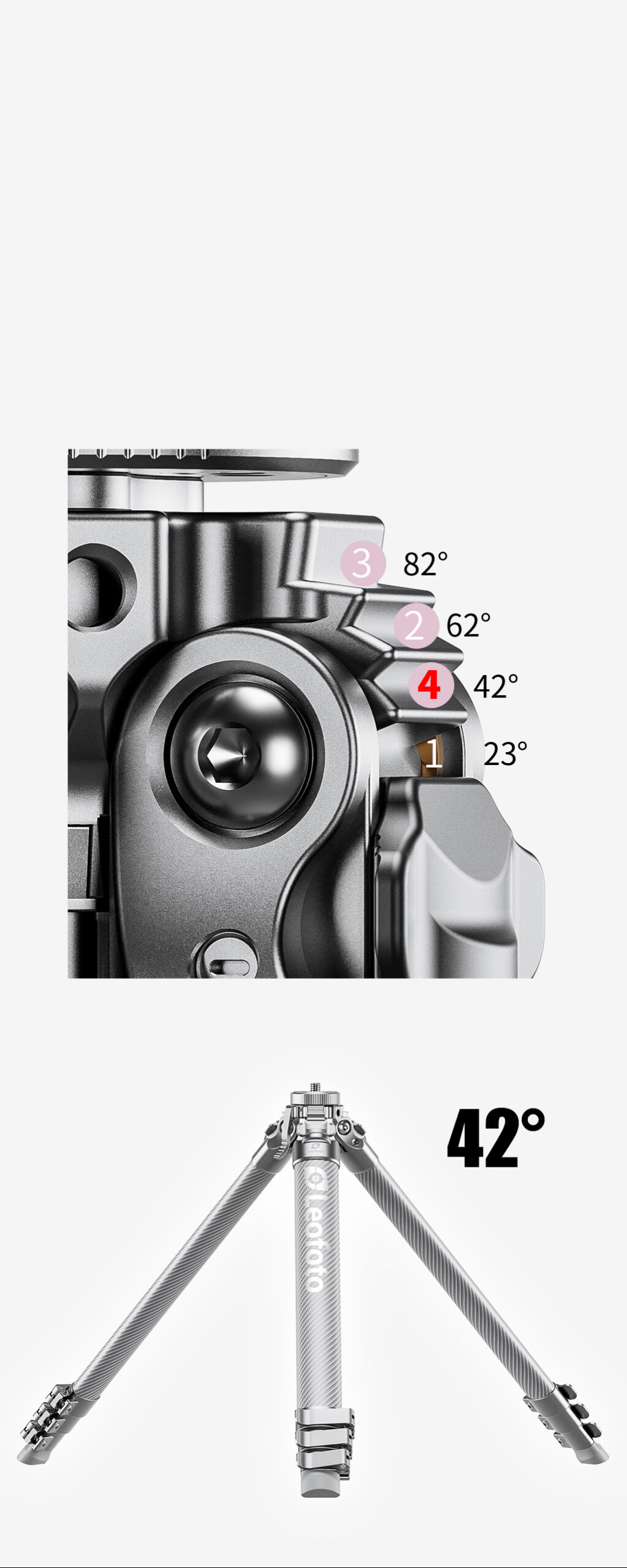

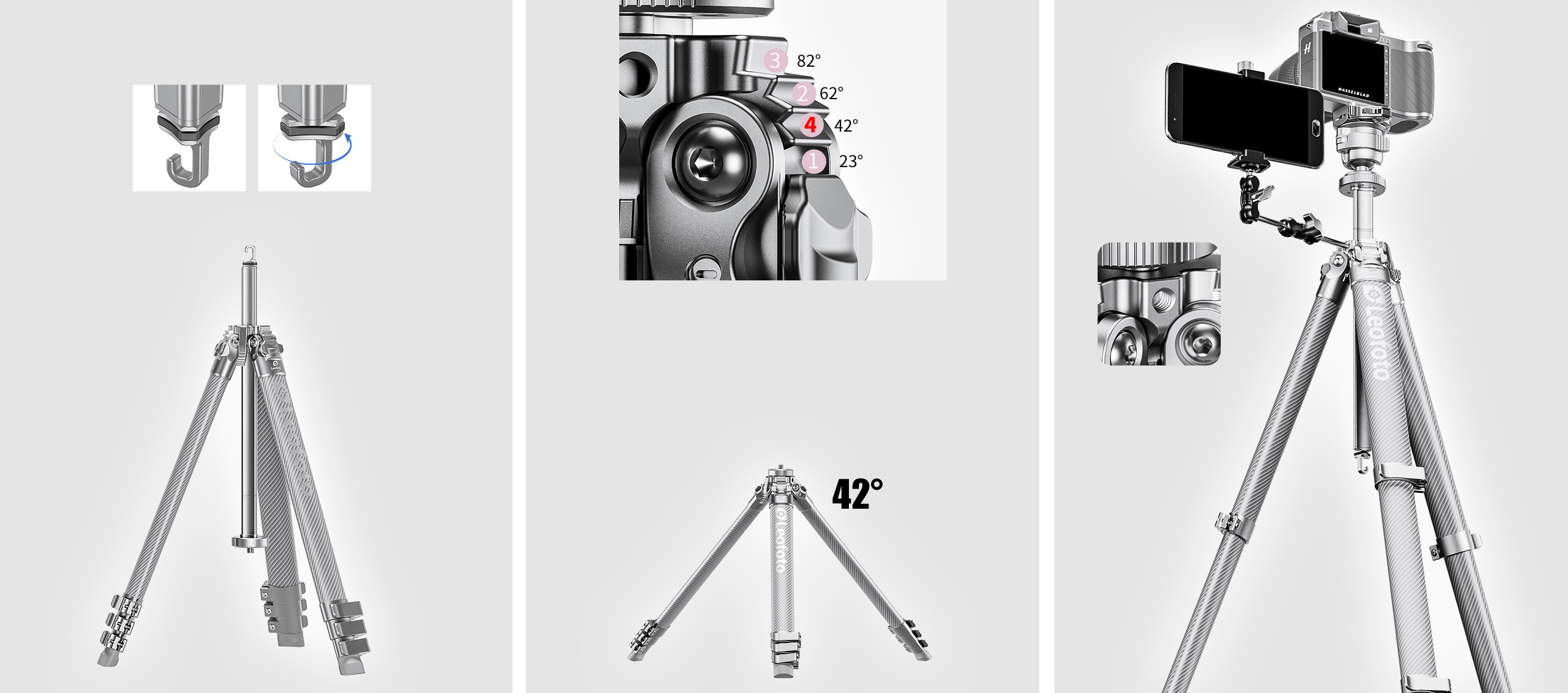

4 angles are available
42° setting is perfect for shooting in windy area
Most of the tripods in the market are with only angles including low, middle and high angles. To help photographers who go windy outdoors for shooting, we add a 42° setting to the tripod to make sure that even in windy outdoors, the shooting can still be stable.

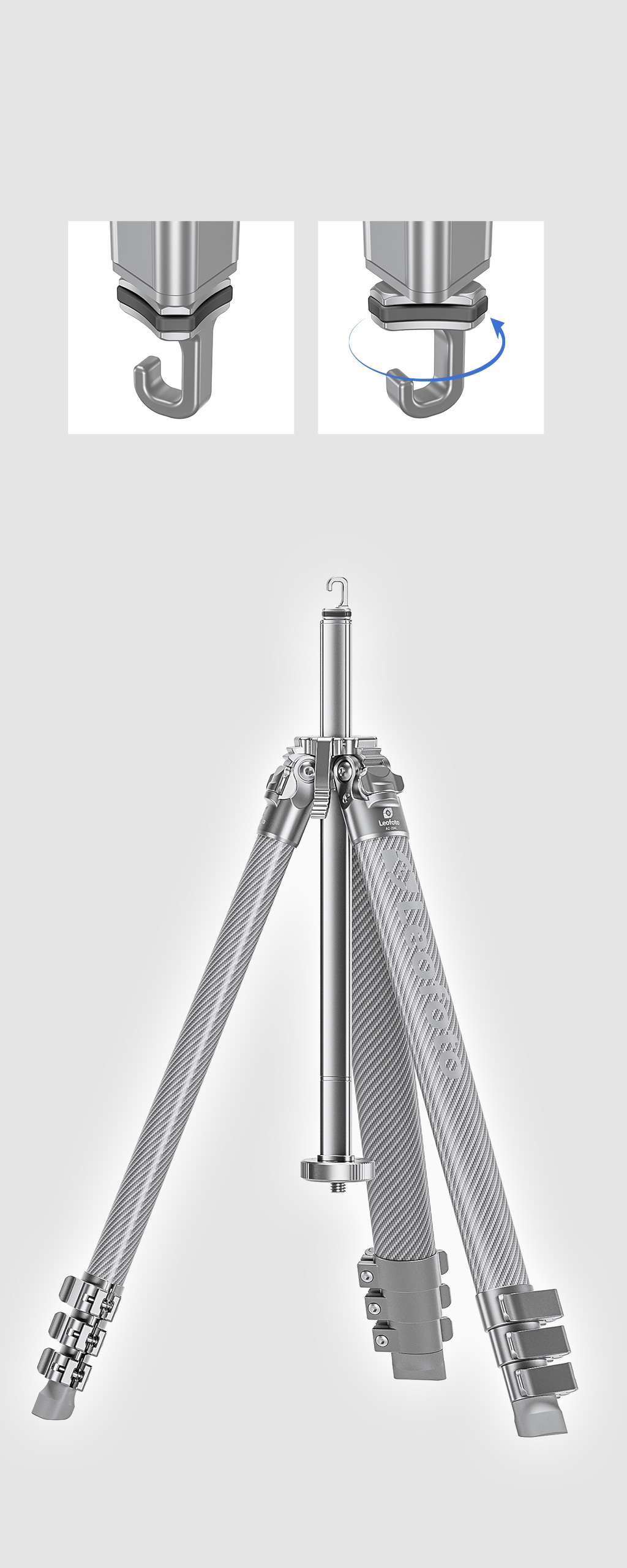

Inverted Center Column
Use the apex locking lever and turn the weight hook to remove the center column
Center column removable
Center column unremovable
1/4”Screw hole
Ultra-Compact Tripod
“Y”-shaped Center Column + Oval Leg Tubes
“Y”-shaped Center Column Oval Leg Tubes
Flip Leg Lock System
The re-designed flip leg locking system optimizes efficiency during operation, and further compresses the size profile of this tripod.
Low Angle

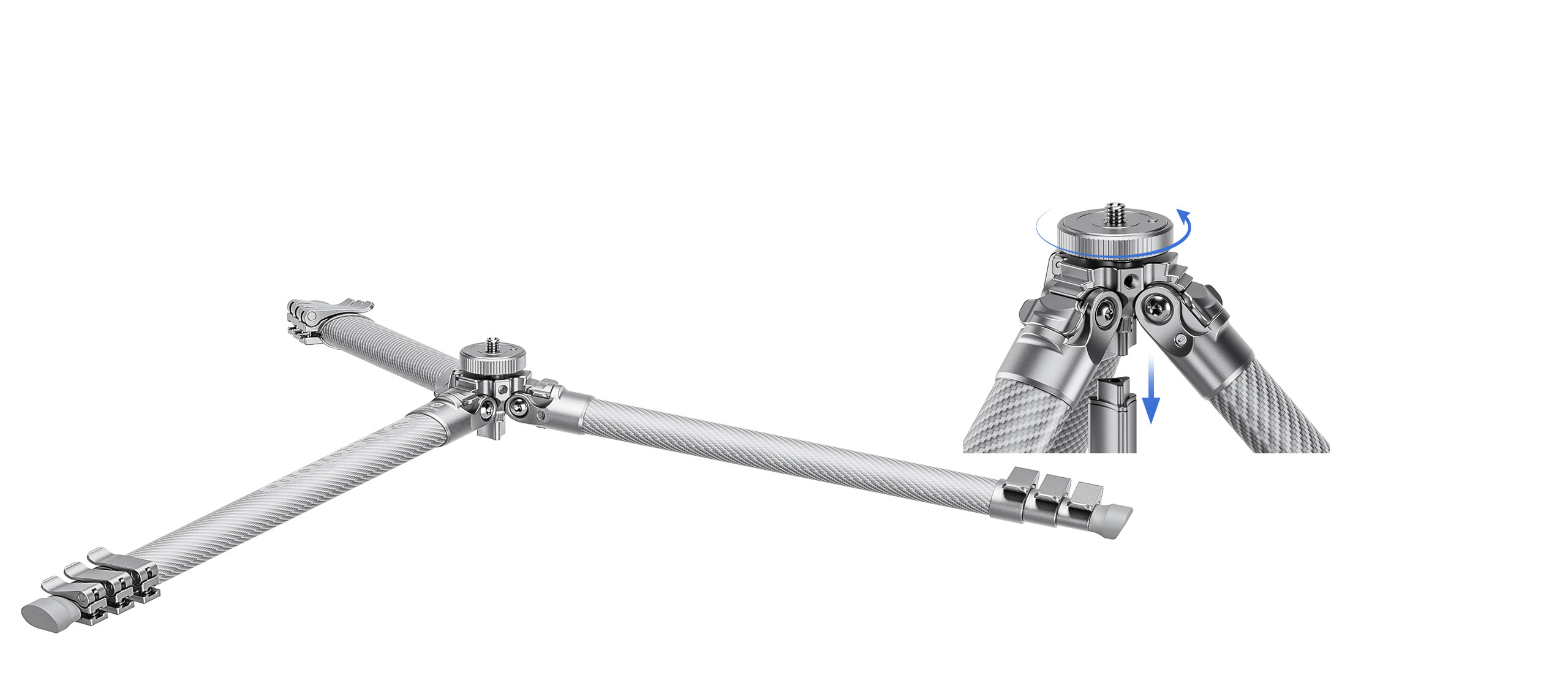

The center column consists of both a long and a short section. By turning the outer ring of the mounting plate counterclockwise, the long section can be removed, enabling ultra-low-angle shooting.

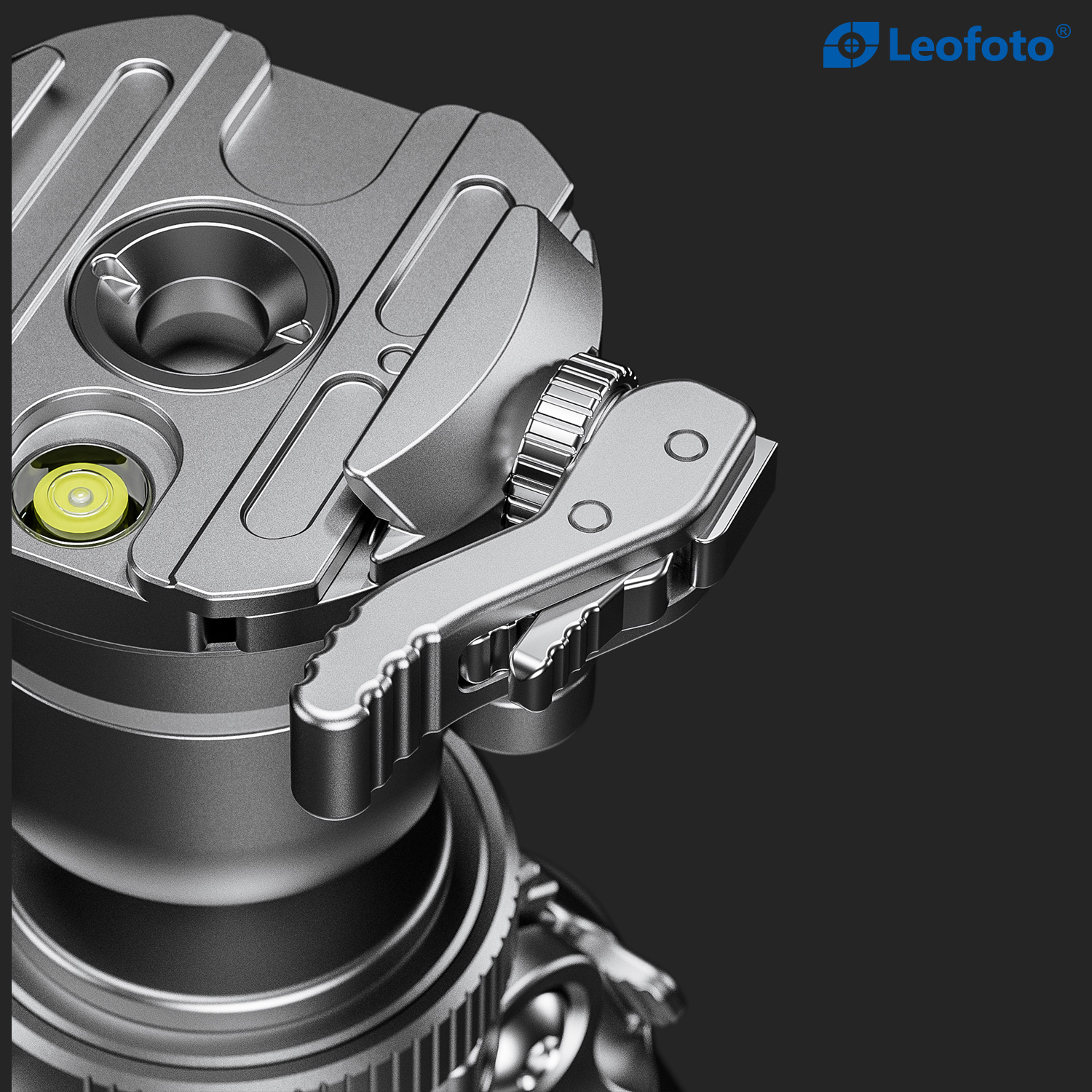

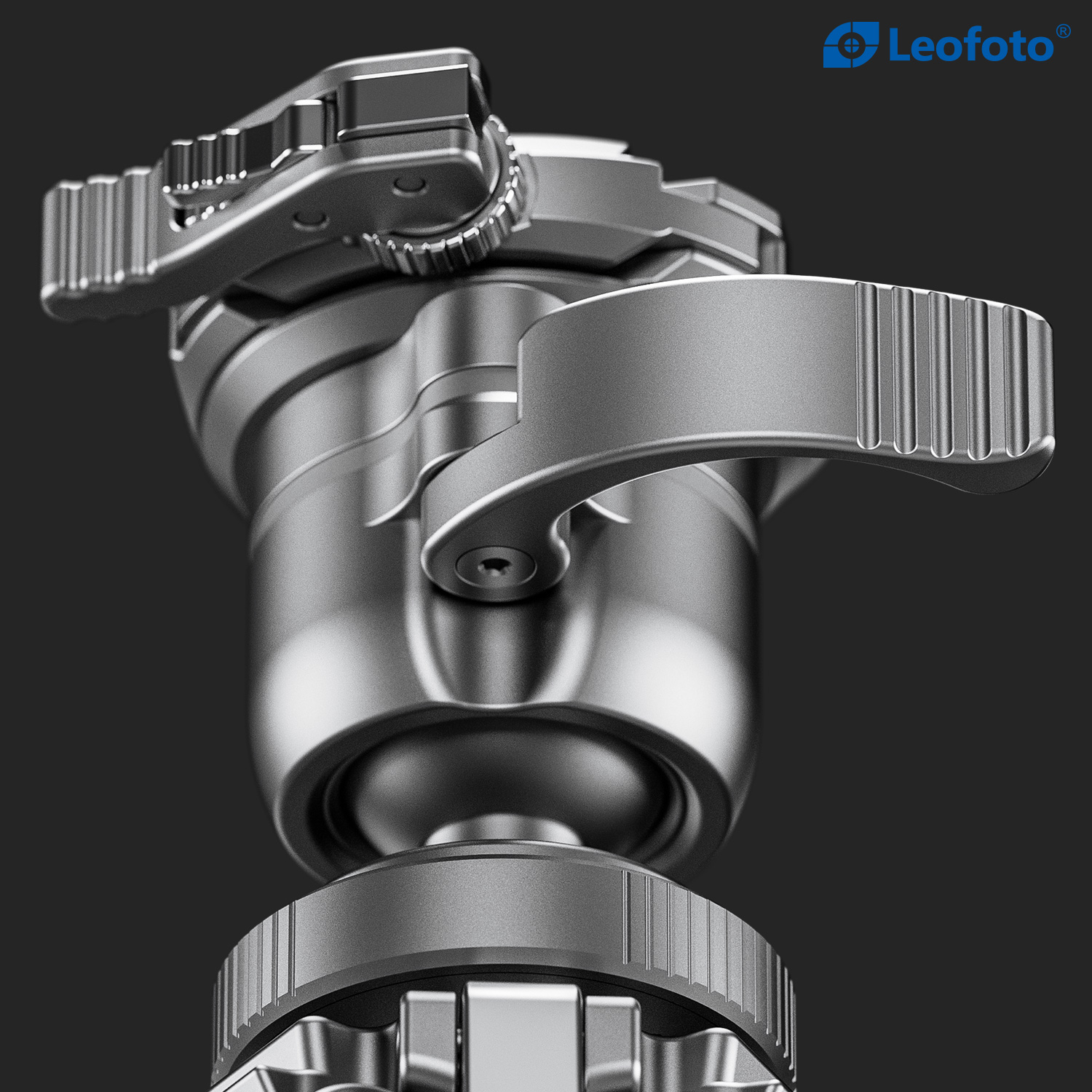

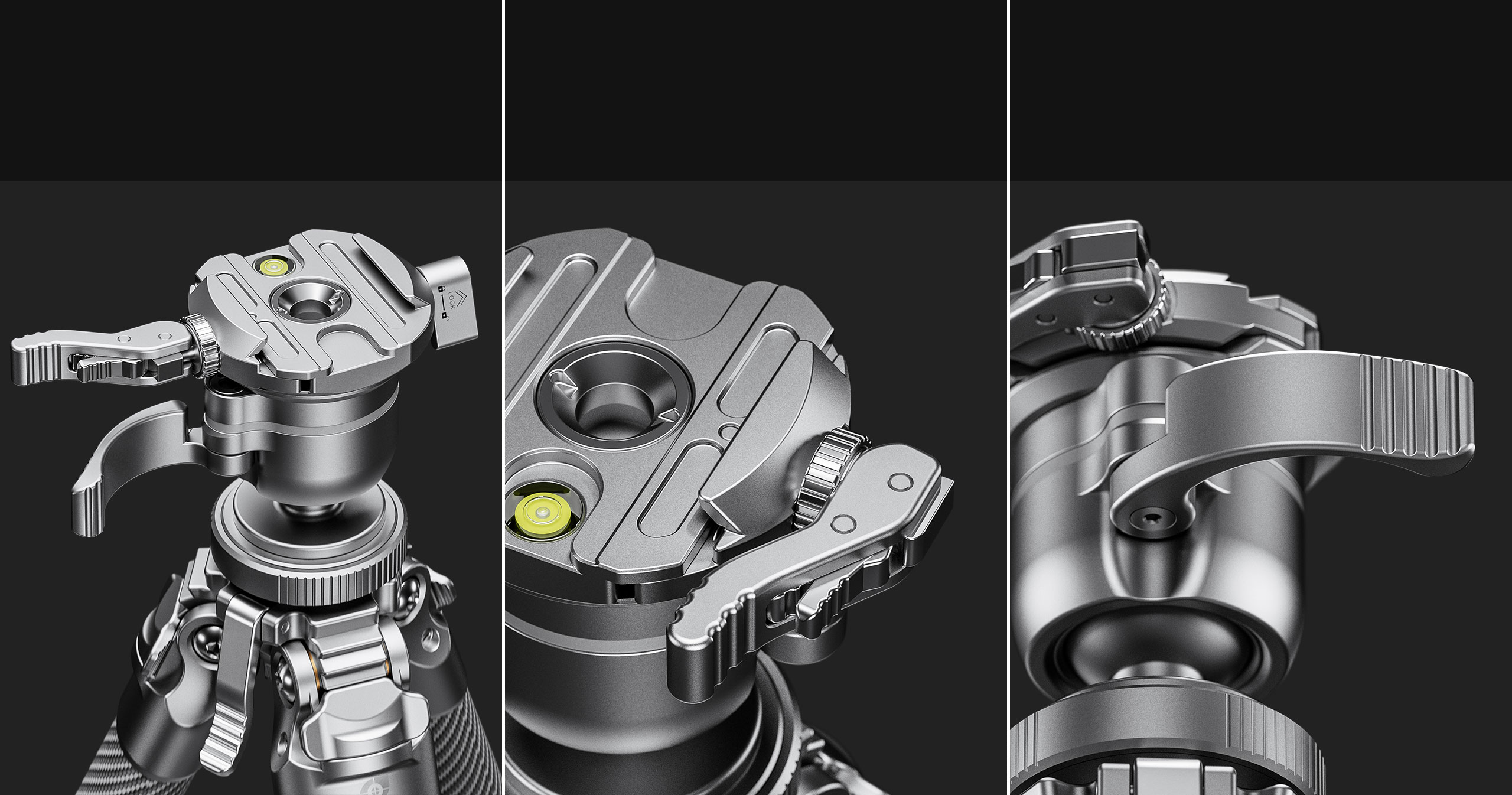

Dual Safety System for Peace of Mind

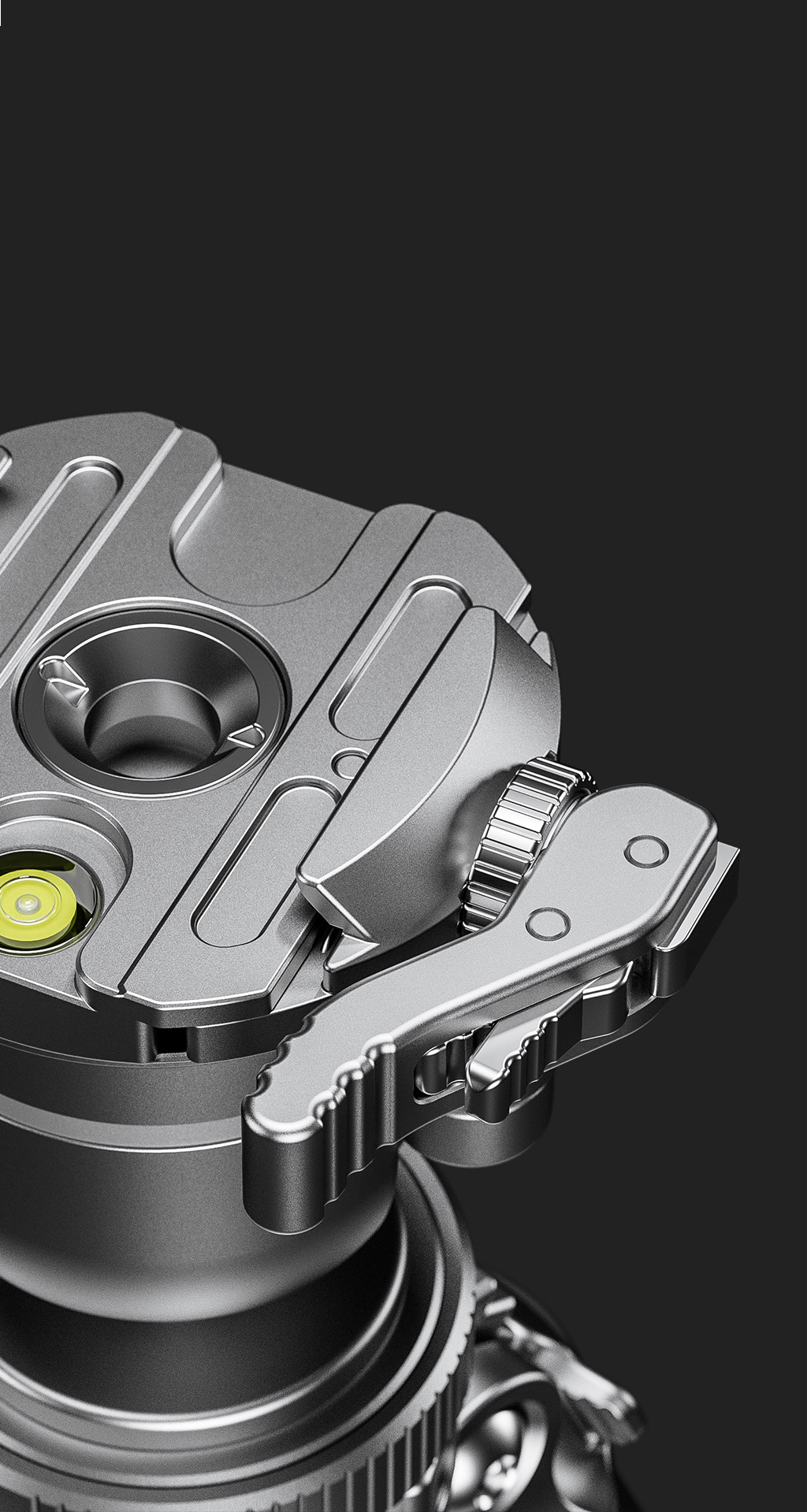

The clamp locking mechanism combines a primary large lever, a secondary safety lever, and a precision fine-tuning knob.
The fine-tuning knob allows for subtle adjustments to the clamping width for a perfect fit.
For added safety, the main lever cannot be released until the secondary lever is fully secured—effectively preventing accidental operation and eliminating the risk of your camera slipping or falling.
Quick, Confident Operation
Adjust the clamp tension instantly with a single motion, delivering fast, secure, and decisive handling.

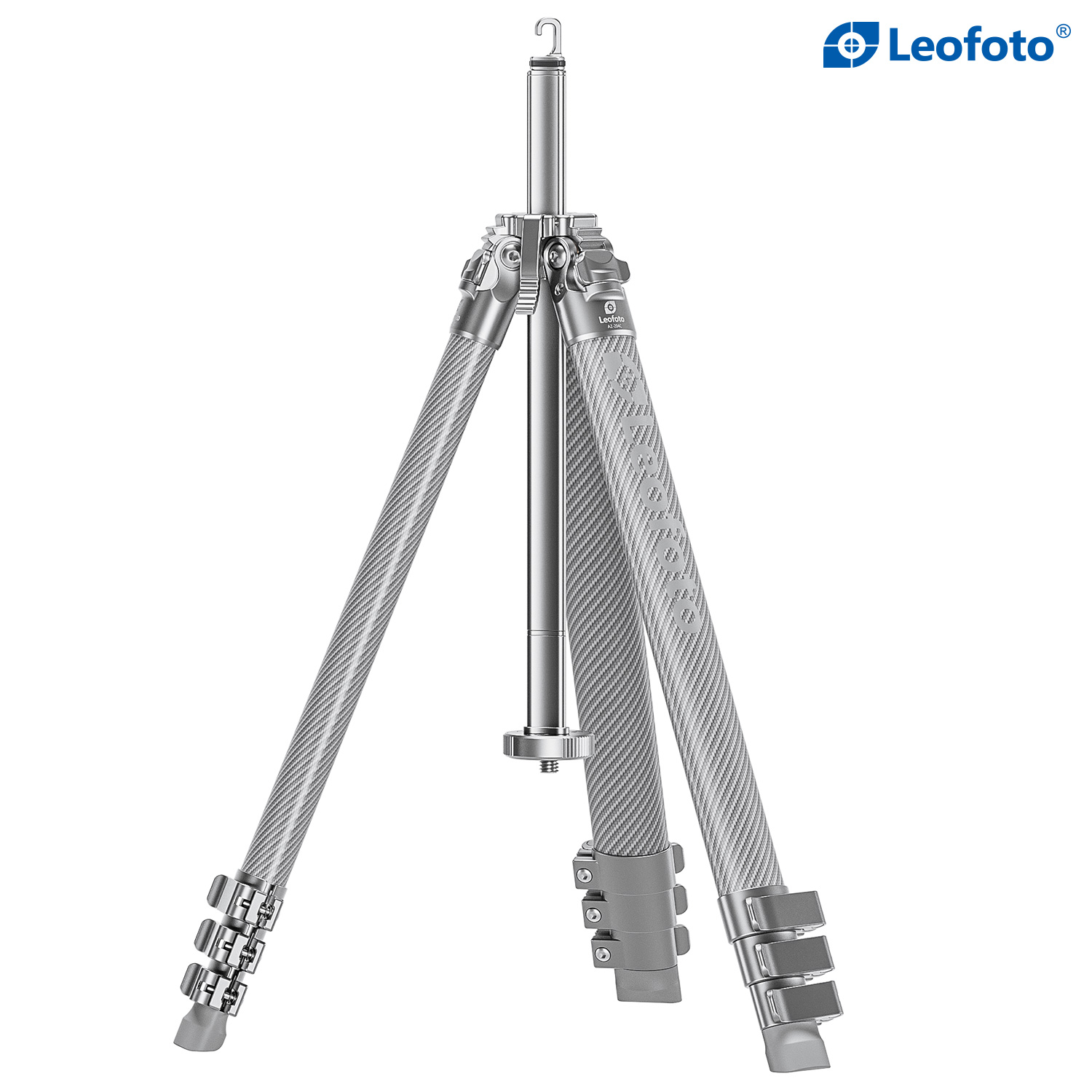

Inverted Center Column
Use the apex locking lever and turn the weight hook to remove the center column
Center column
removable
Center column
unremovable
4 angles are available
Most of the tripods in the market are with only angles including low, middle and high angles. To help photographers who go windy outdoors for shooting, we add a 42° setting to the tripod to make sure that even in windy outdoors, the shooting can still be stable.

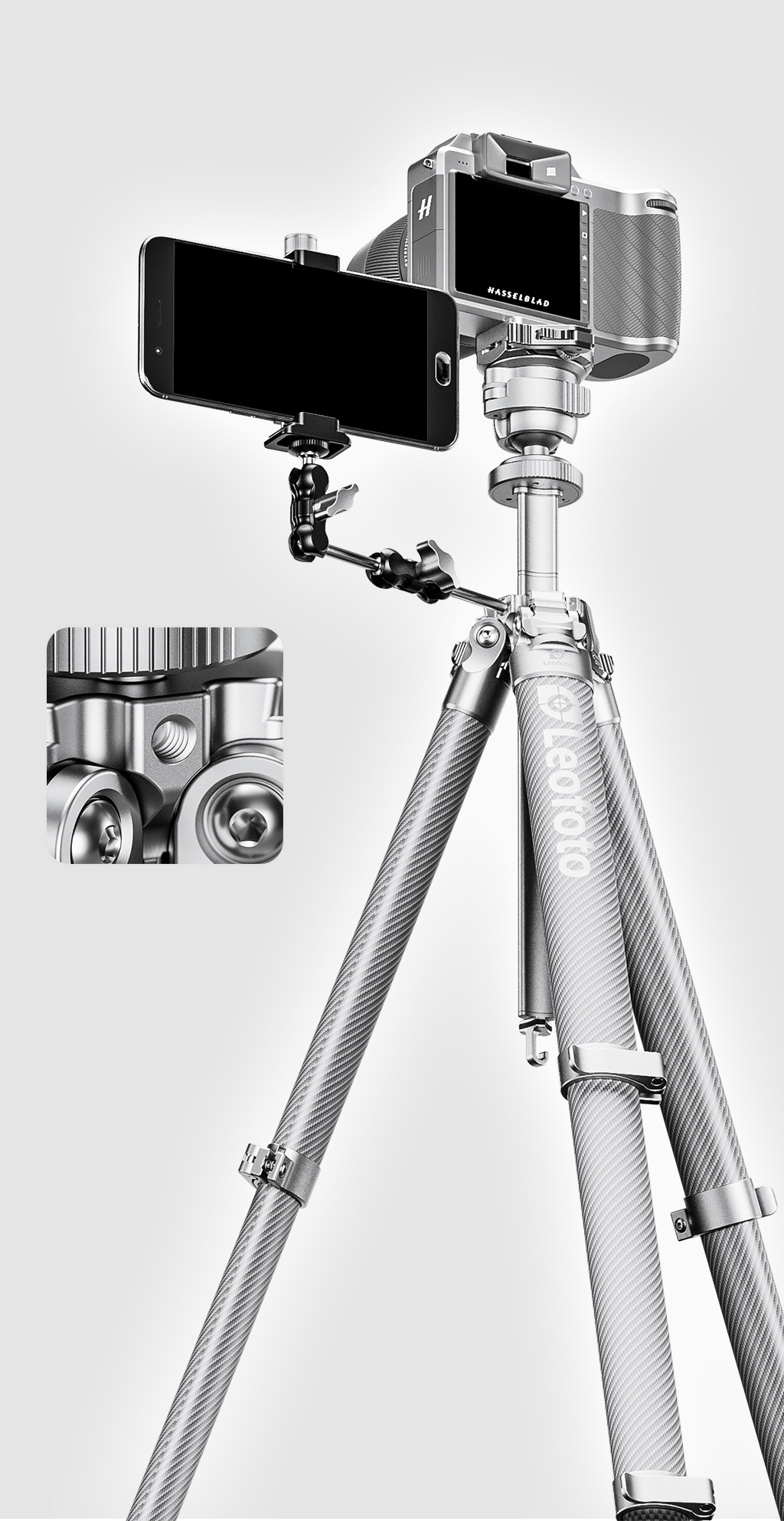

1/4”Screw hole

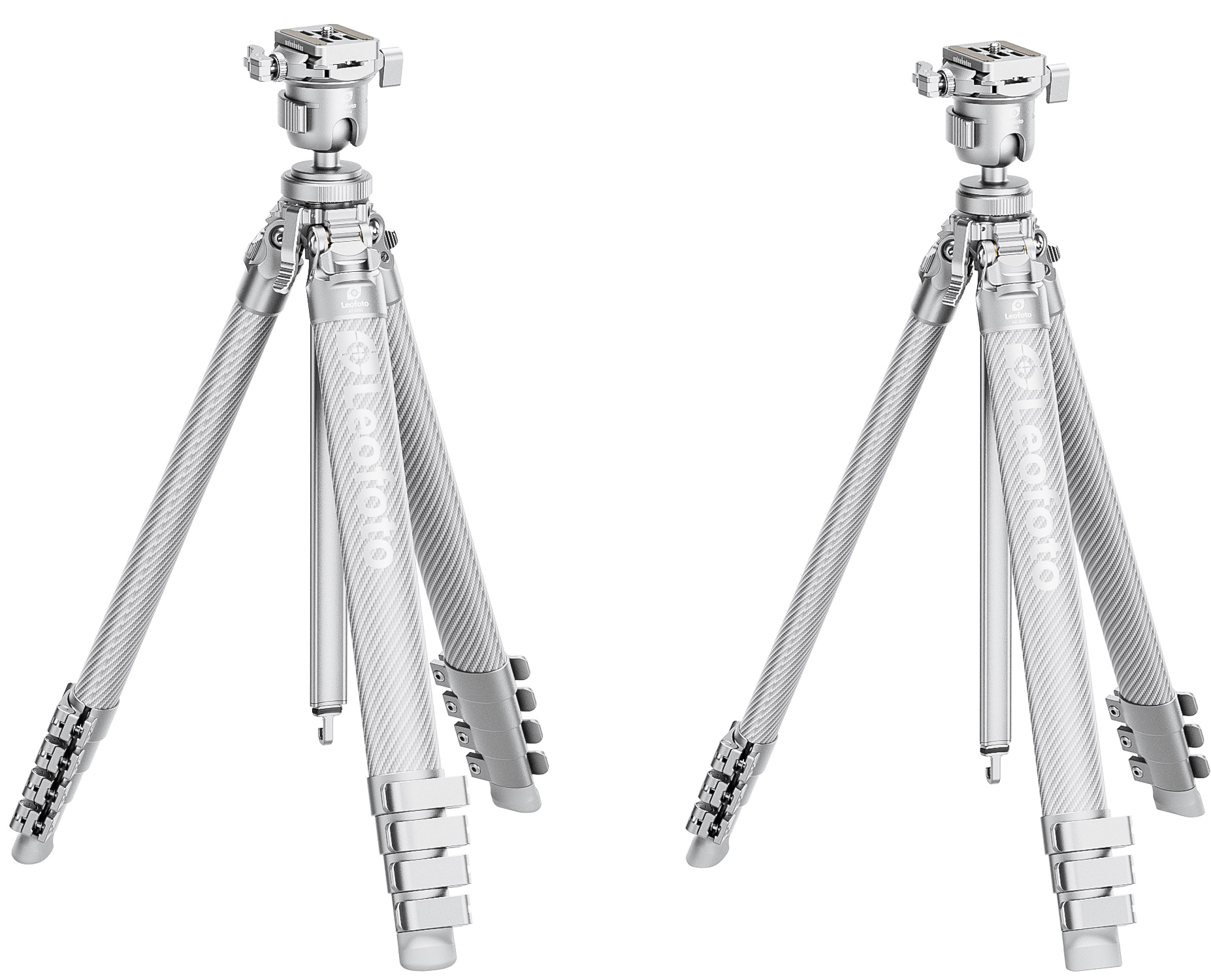

| 型号 | AZ-235C+MBH-30 | AZ-204C+MBH-30 |
| Max. Height | 1600mm | 1400mm |
| Min. Height | 160mm | 160mm |
| Folded length | 480mm | 475mm |
| Leg Section | 5 | 4 |
| Weight | 1.54kg | 1.28kg |
| Max load | 10kg | 7kg |
| Leg Tube Sizes | 38.5 | 35 |
