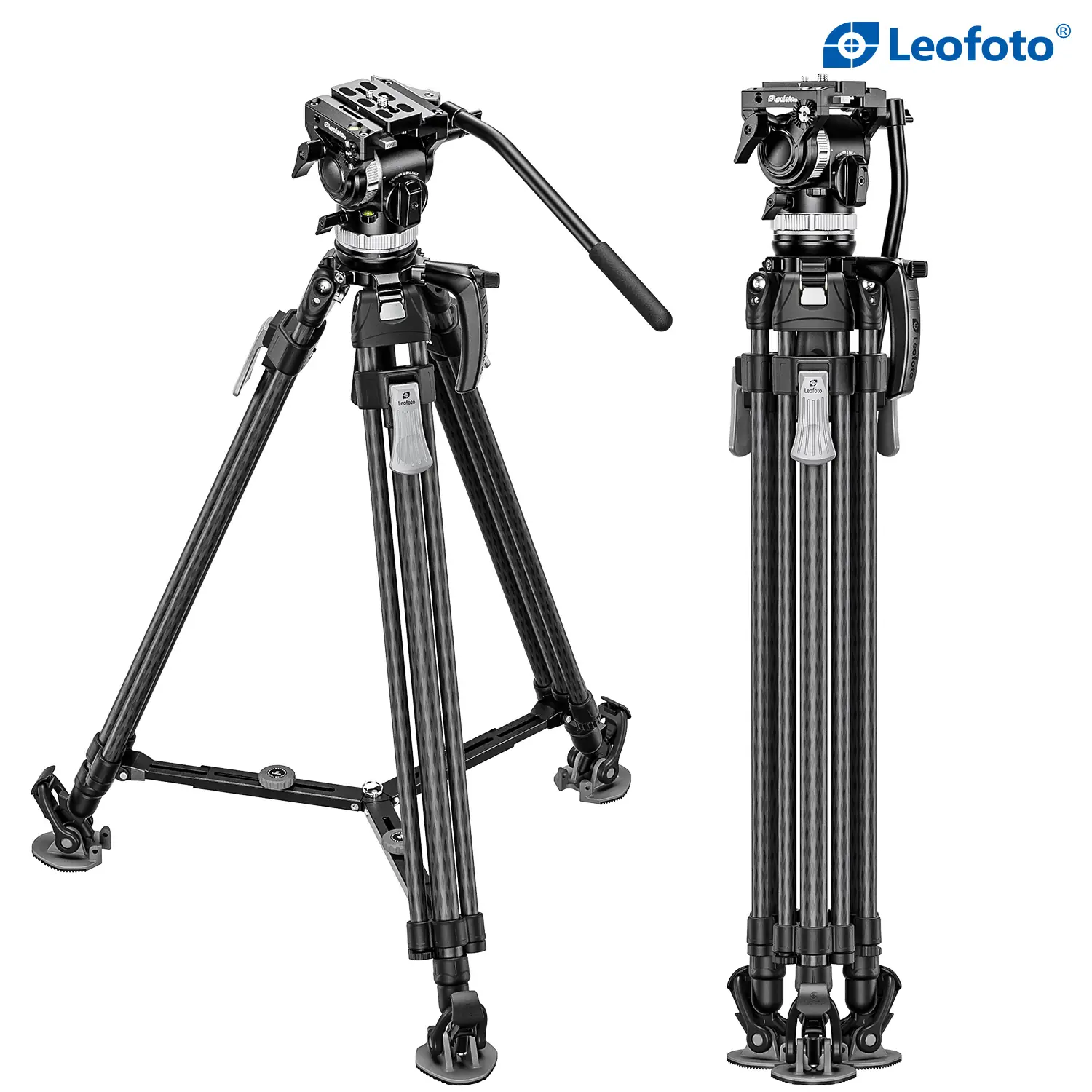

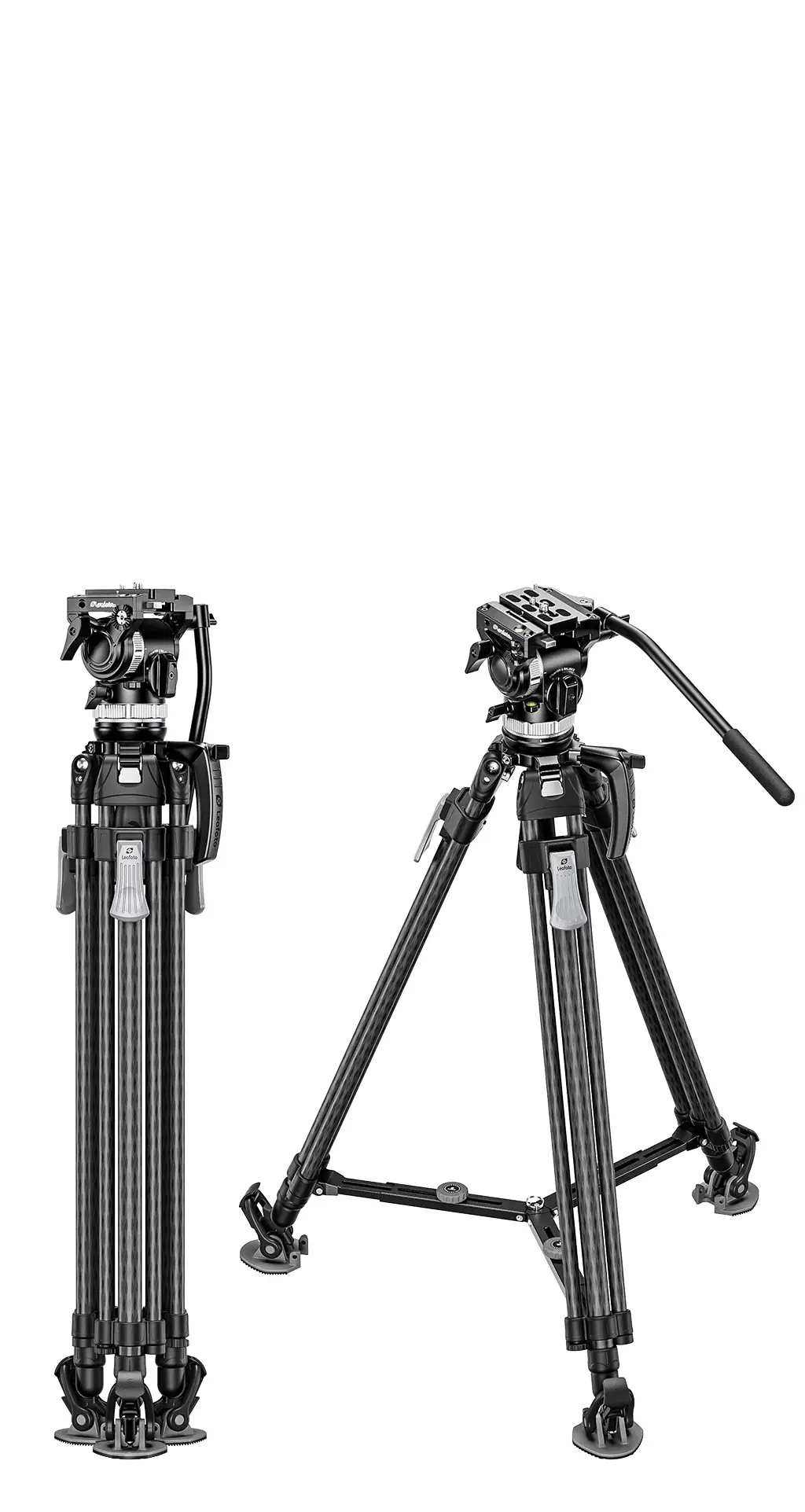

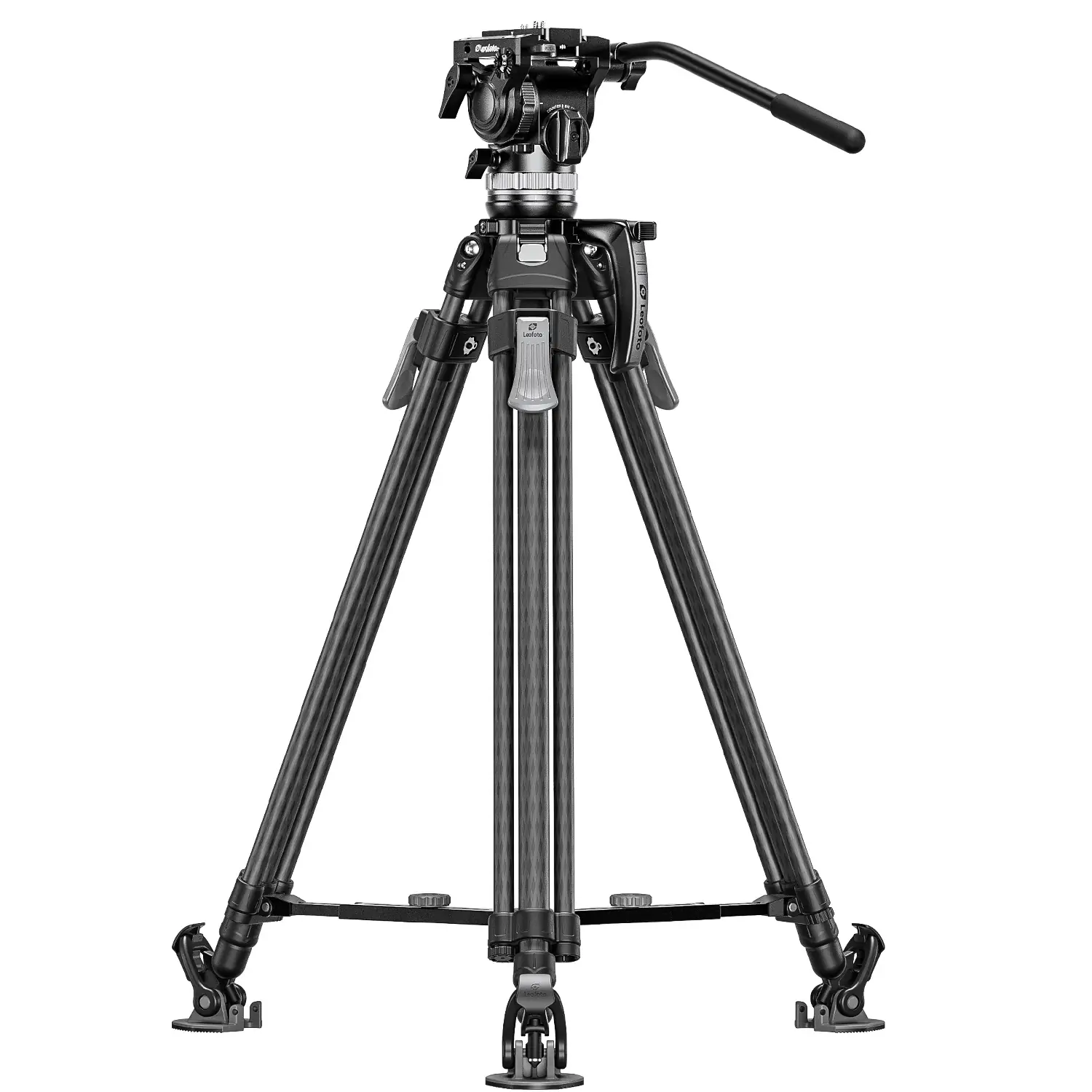

LVF-143C+FH-5L

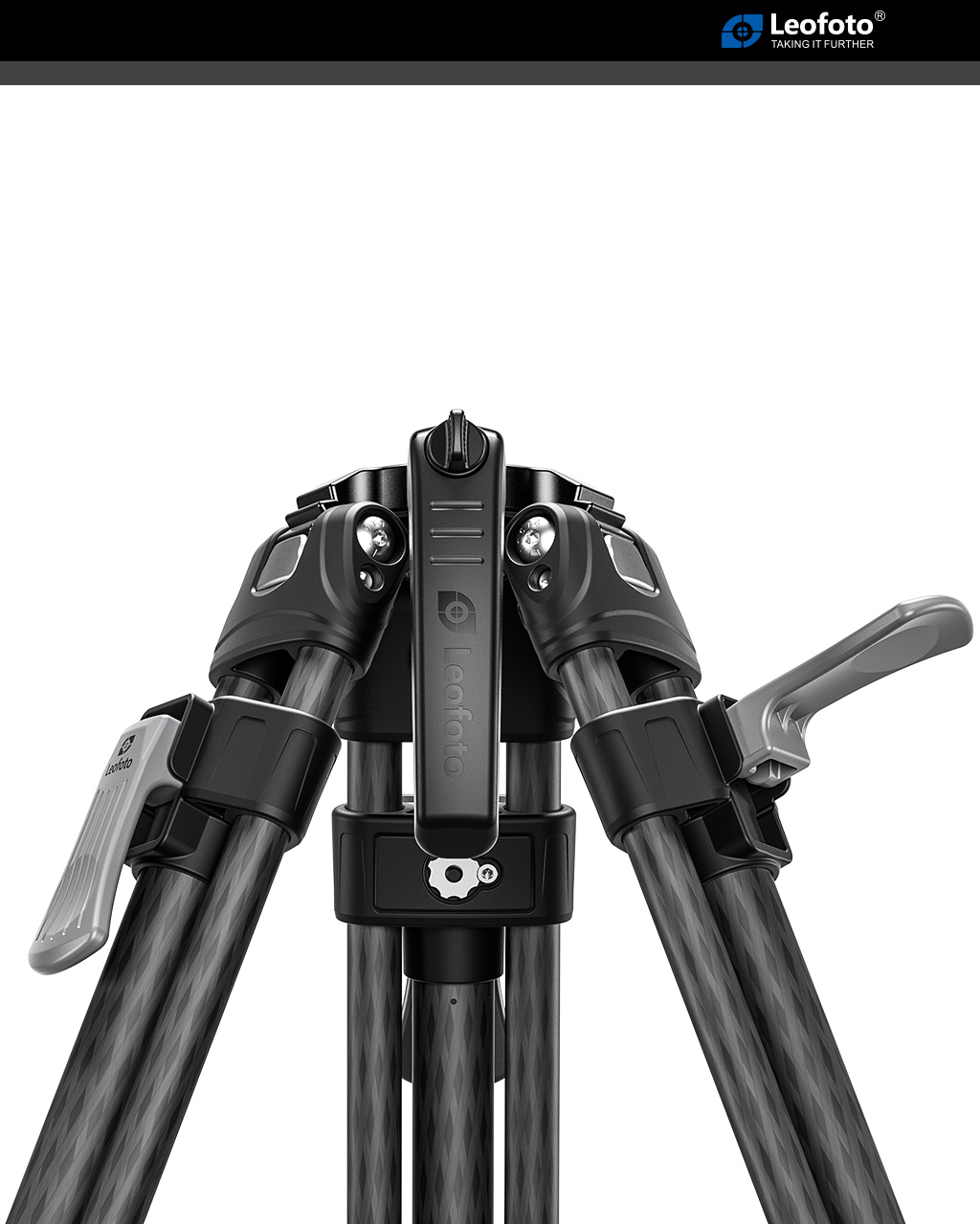

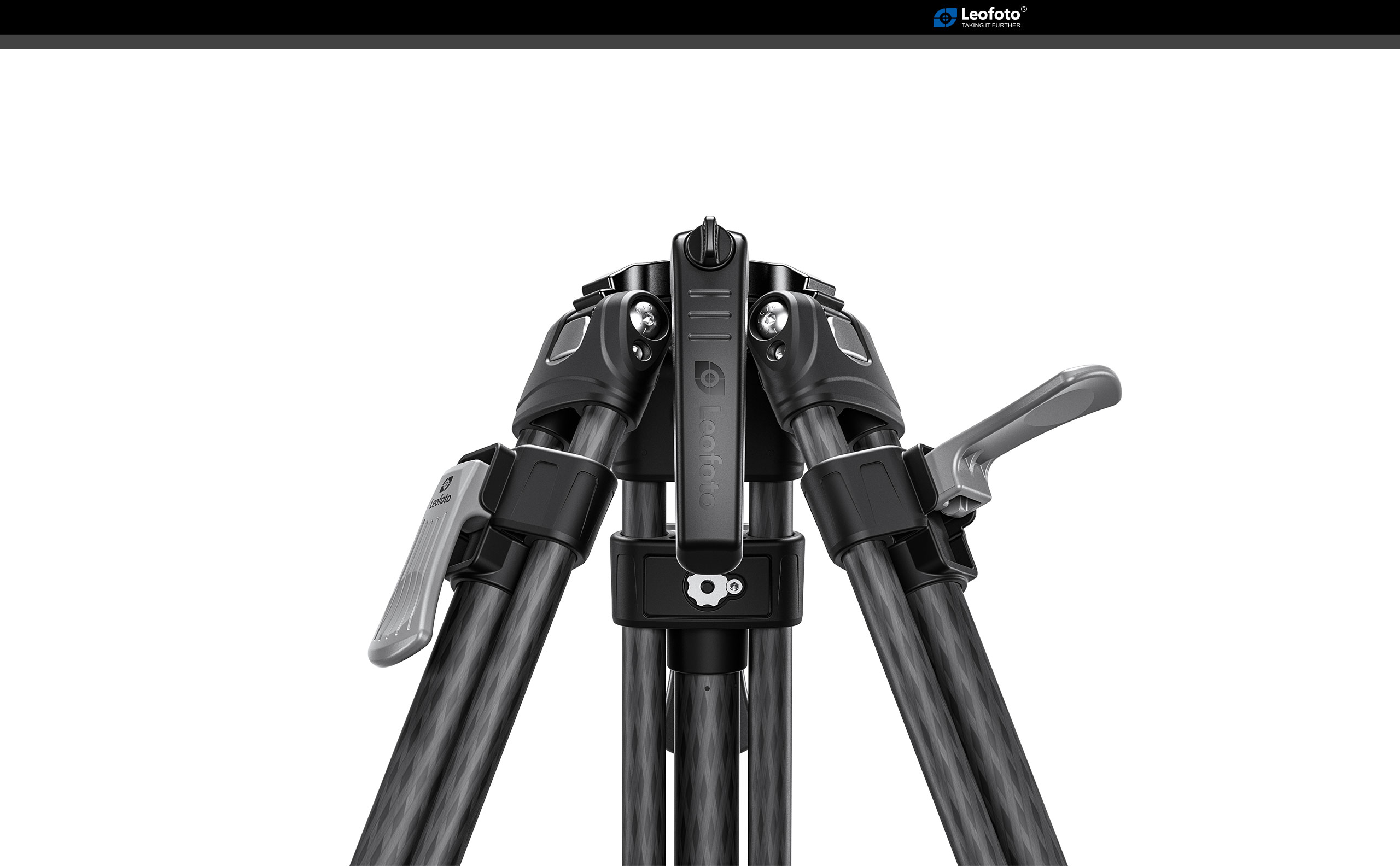

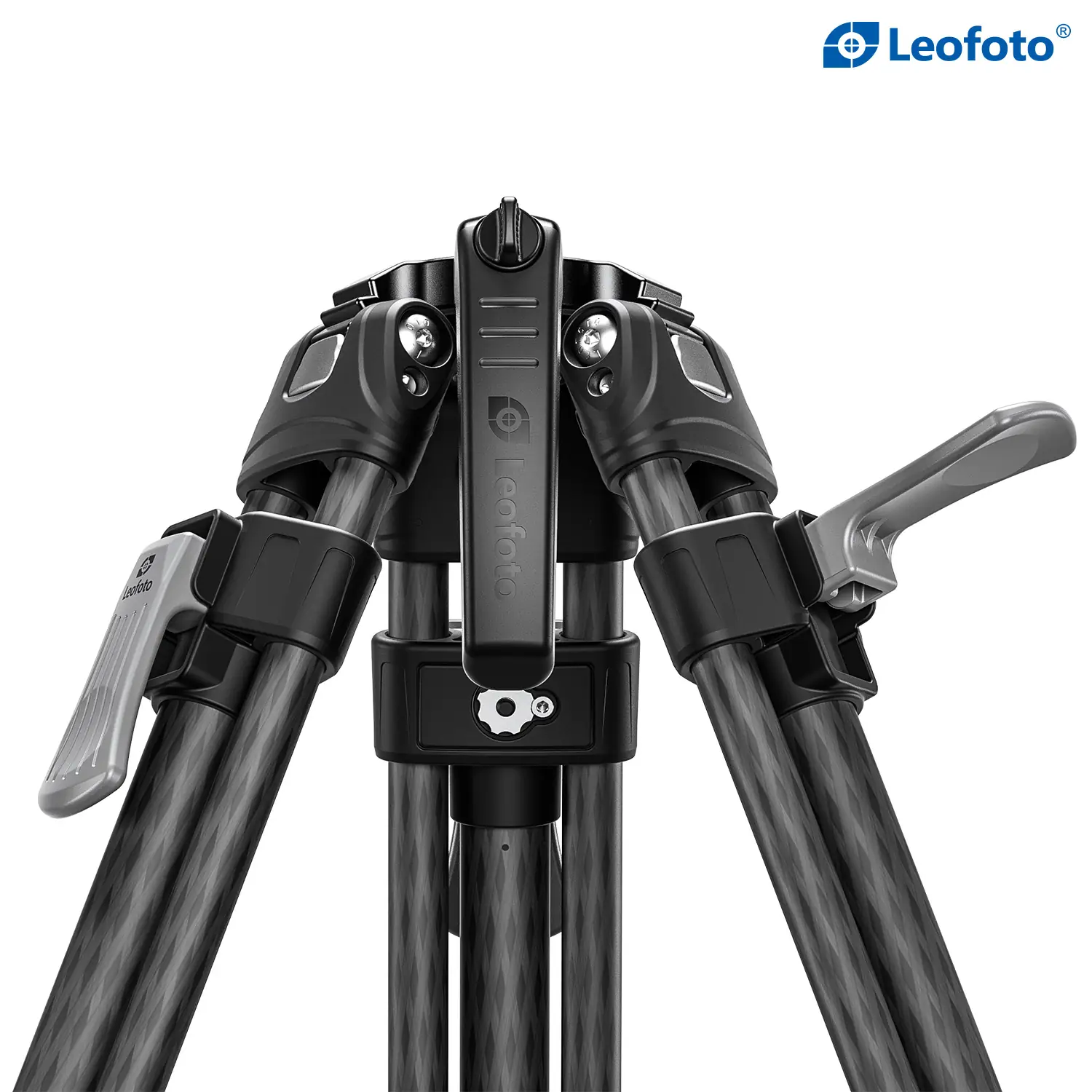

Twin Leg Design
One Button Unlocking

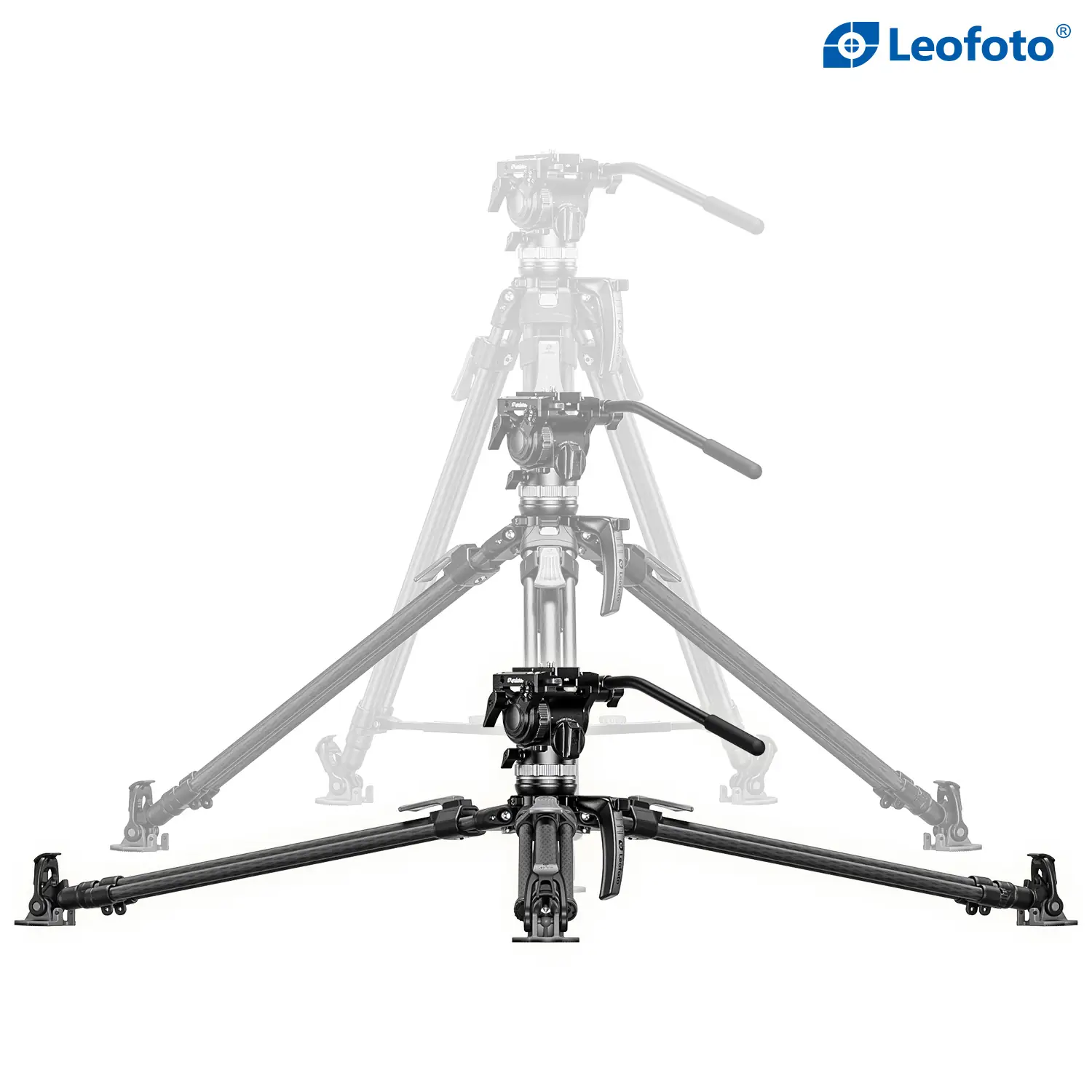

Two ways of adjustment

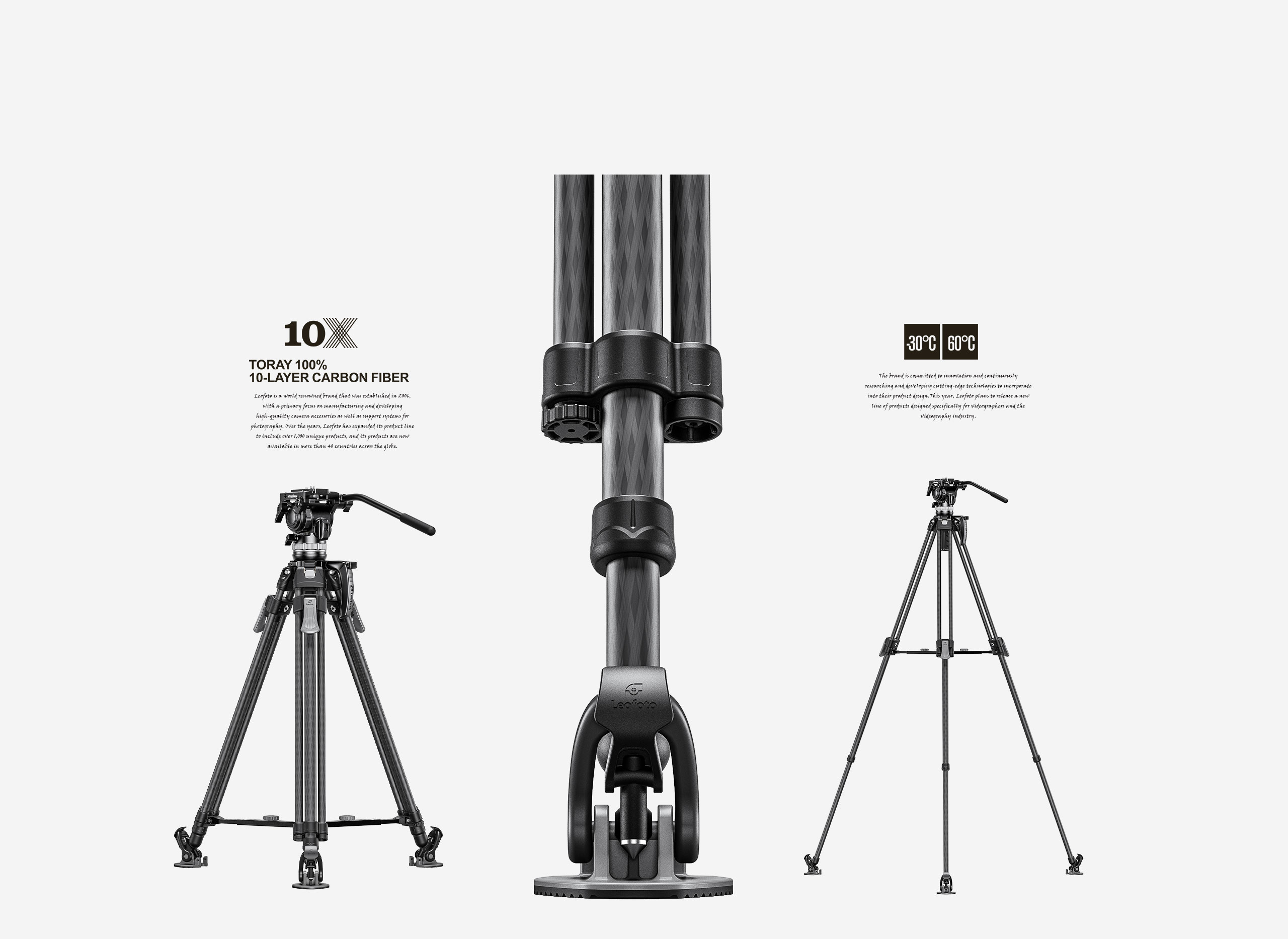

The Leofoto LVF Series tripods feature dual leg tubes which offer greater rigidity and stability with two points of connection to the apex, the perfect choice for high-end cinematography and video. Traditional video tripods only come with a middle spreader system, but the LVF Series comes with an adjustable spreader system which enables the user to switch between a ground and mid-level spreader adding flexibility. These tripods are made of carbon flber for light weight and have the ability to collapse into a compact size for portability.

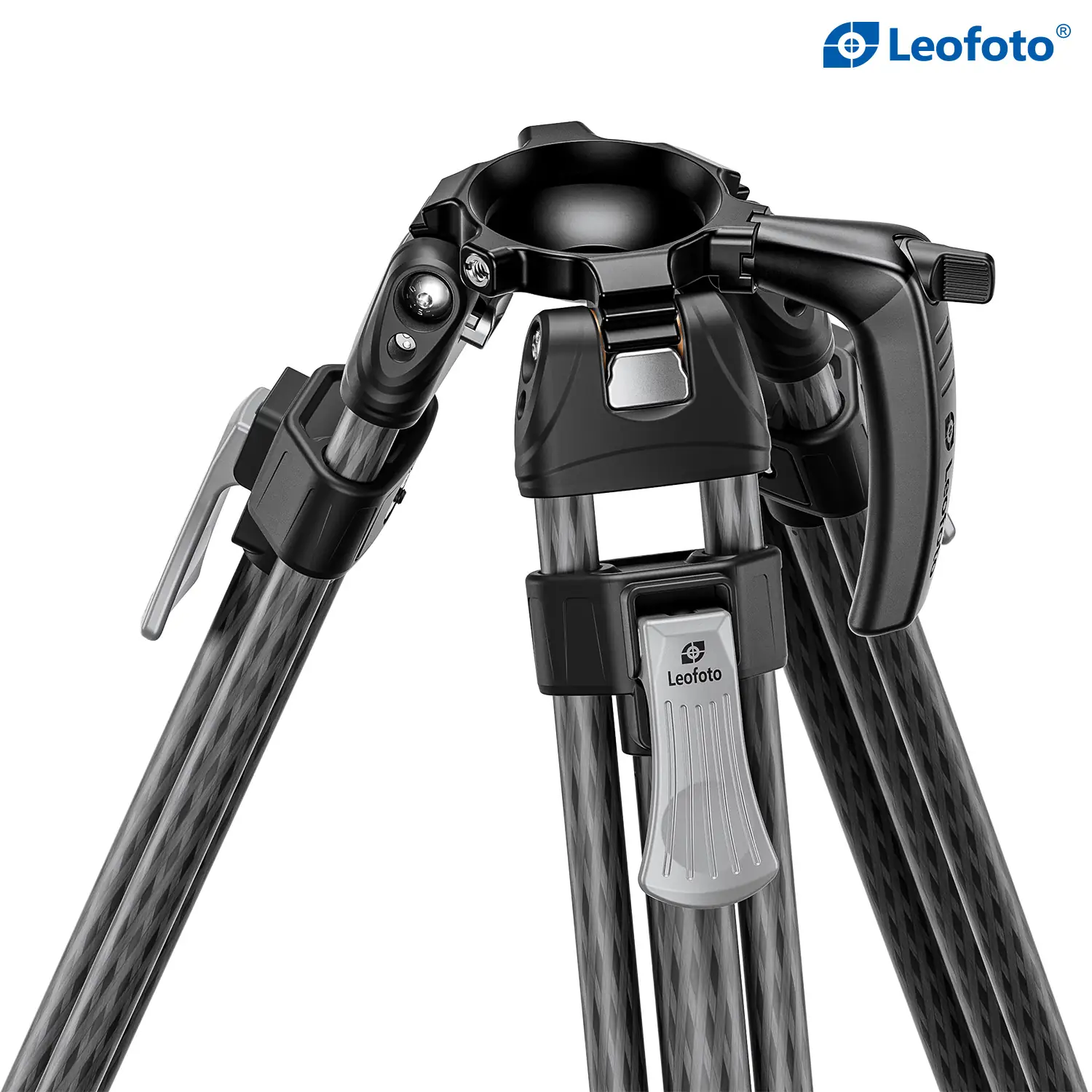

One Button Unlocking
One-button lock design is easy and quick for users to ajdust the height of the tripod, which allows photographers to capture every precious moment.
4 pcs tubes for each leg
Improved from 3 legs to 4 legs for double stability, perfect choice for high-end photography and video.has the ability to store down into a compact, easy to carry size.

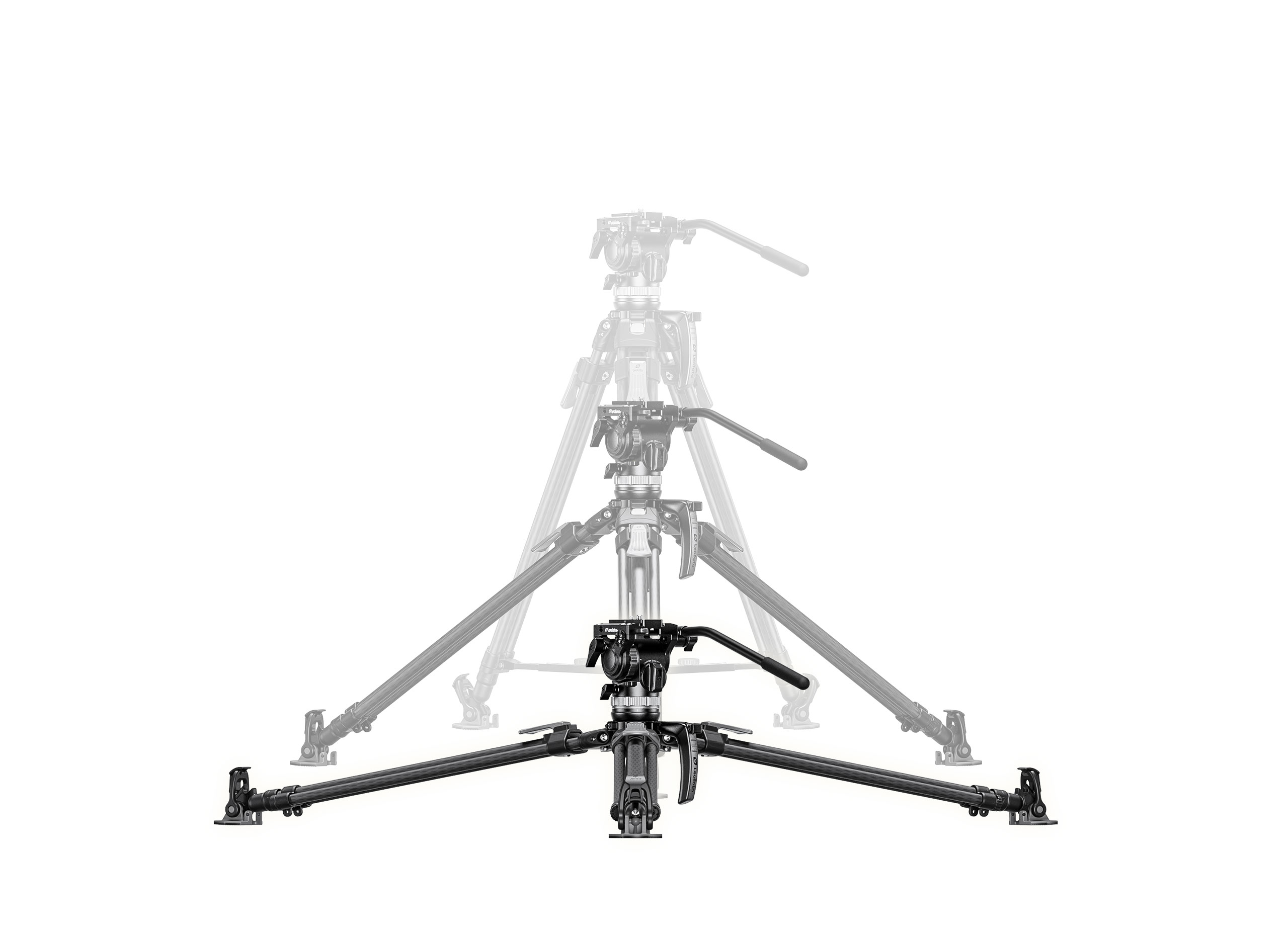

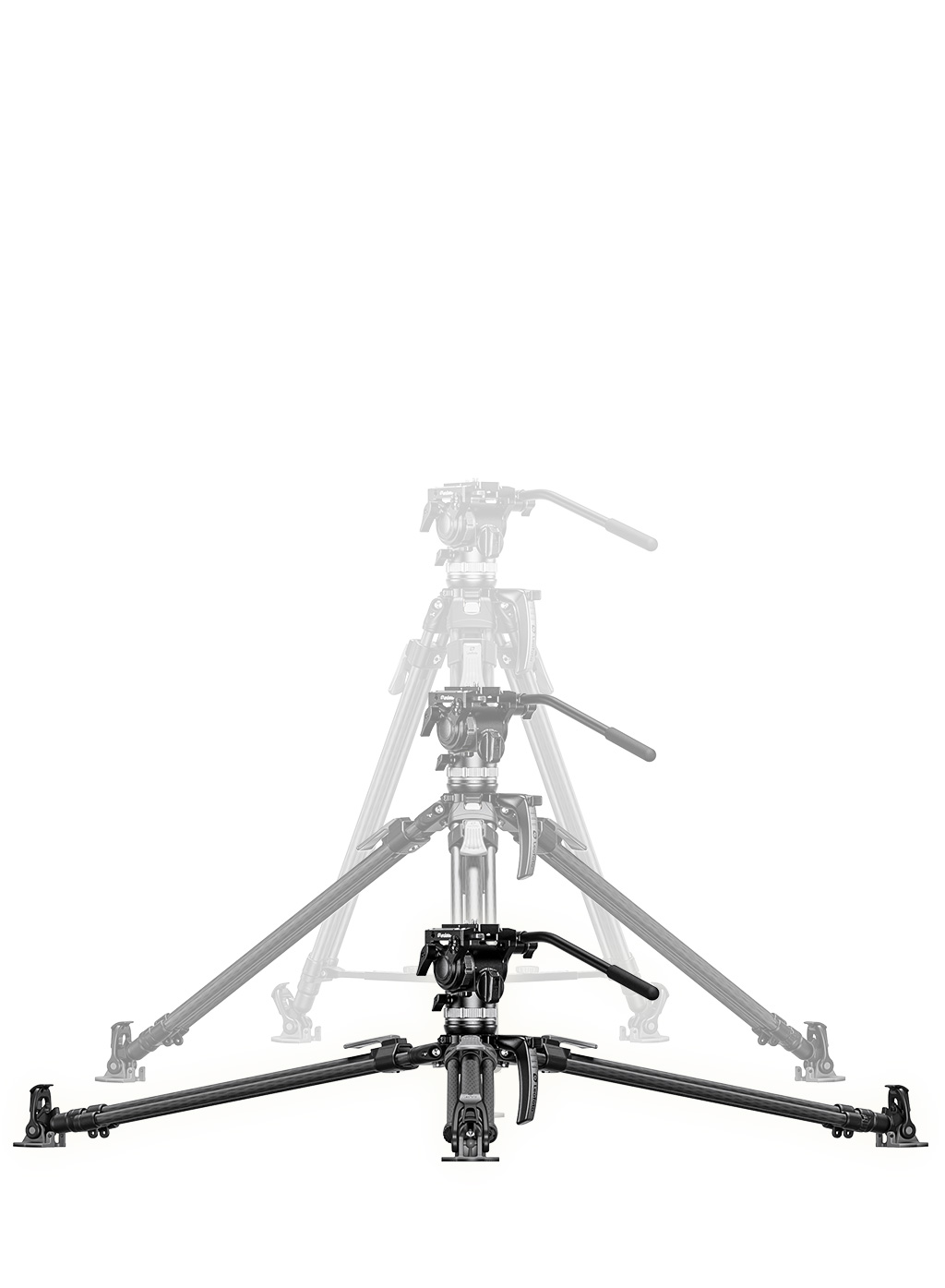

Angle adjustment system
Switch of 3 positions and set-angle

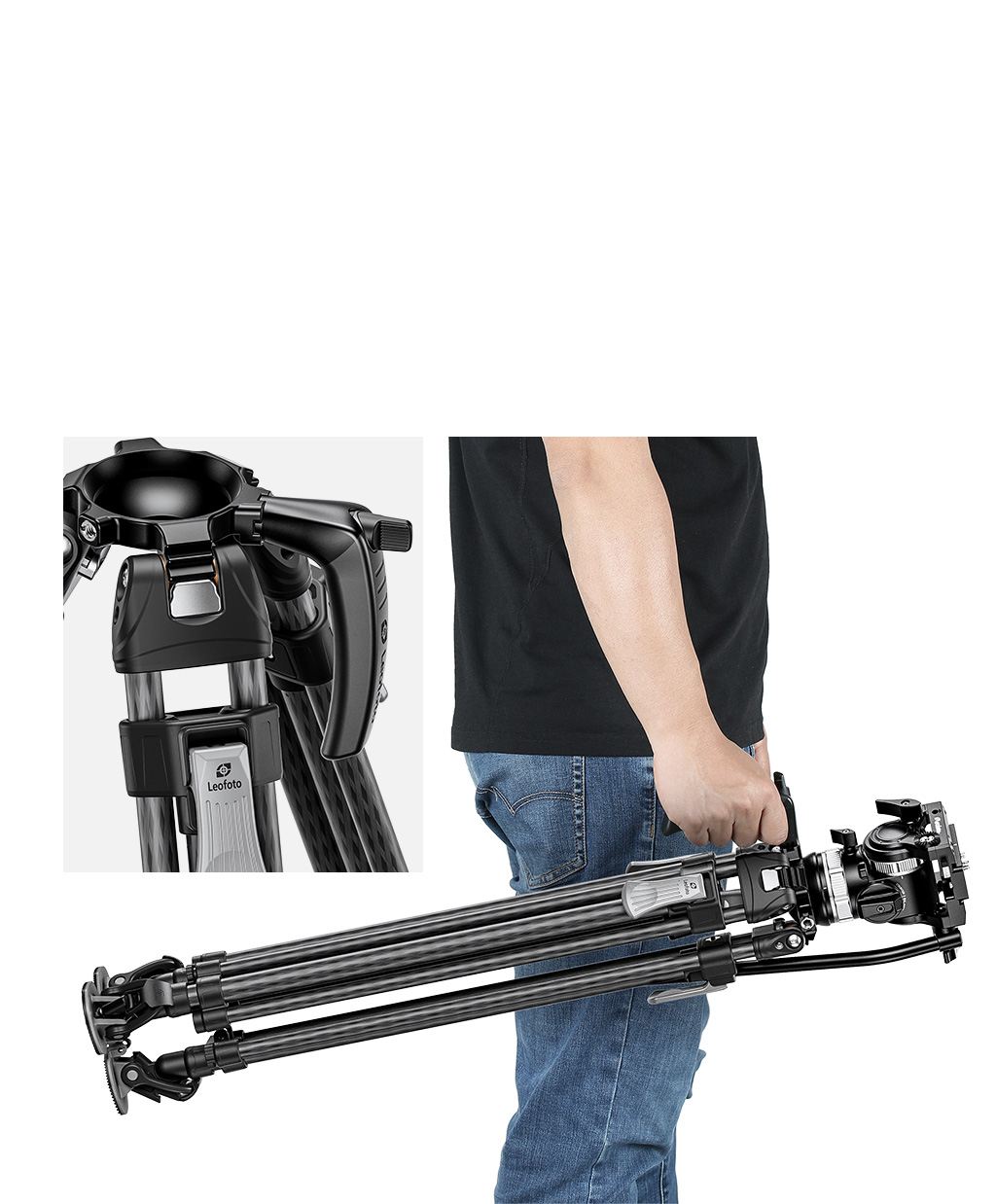

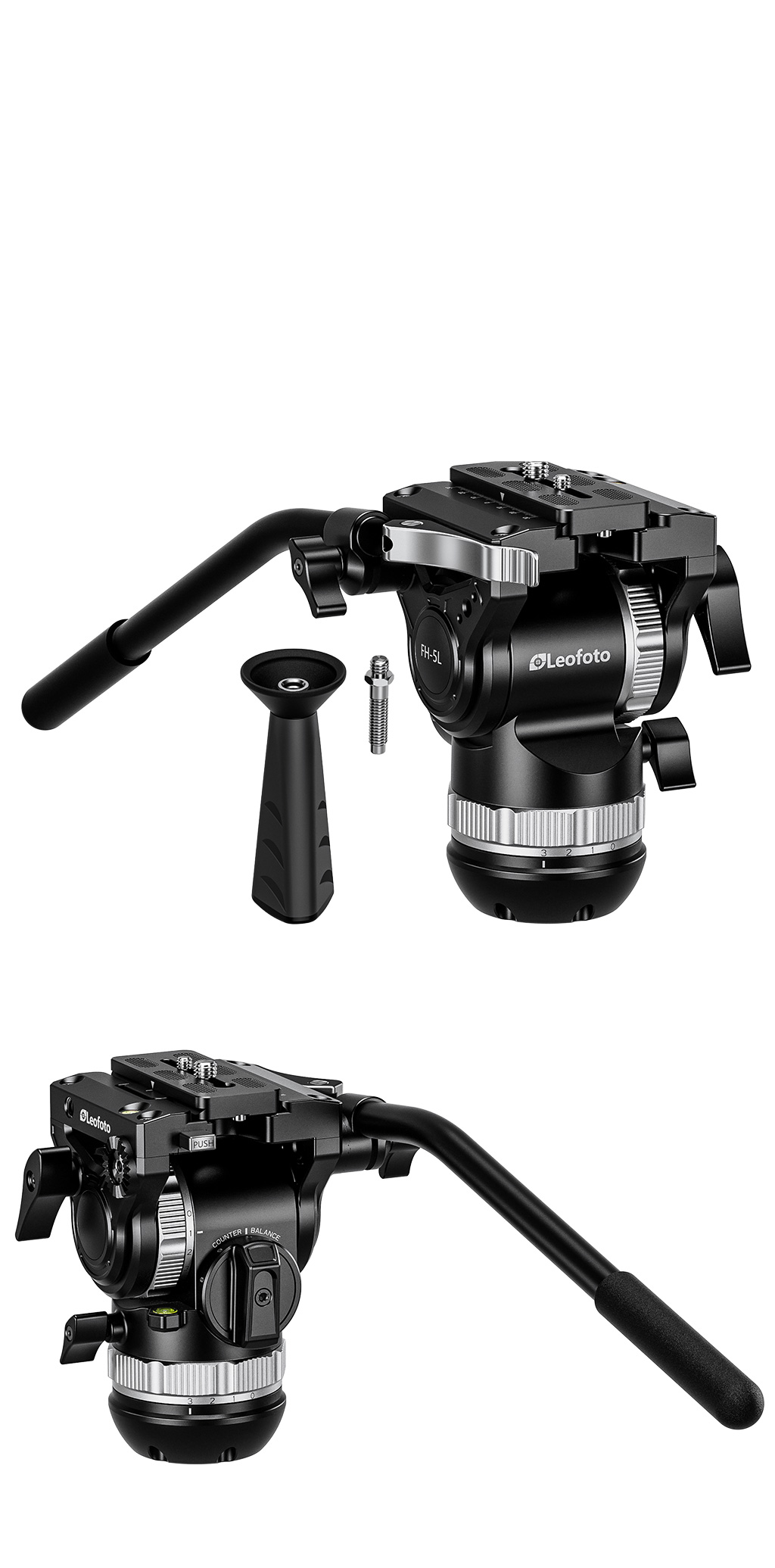

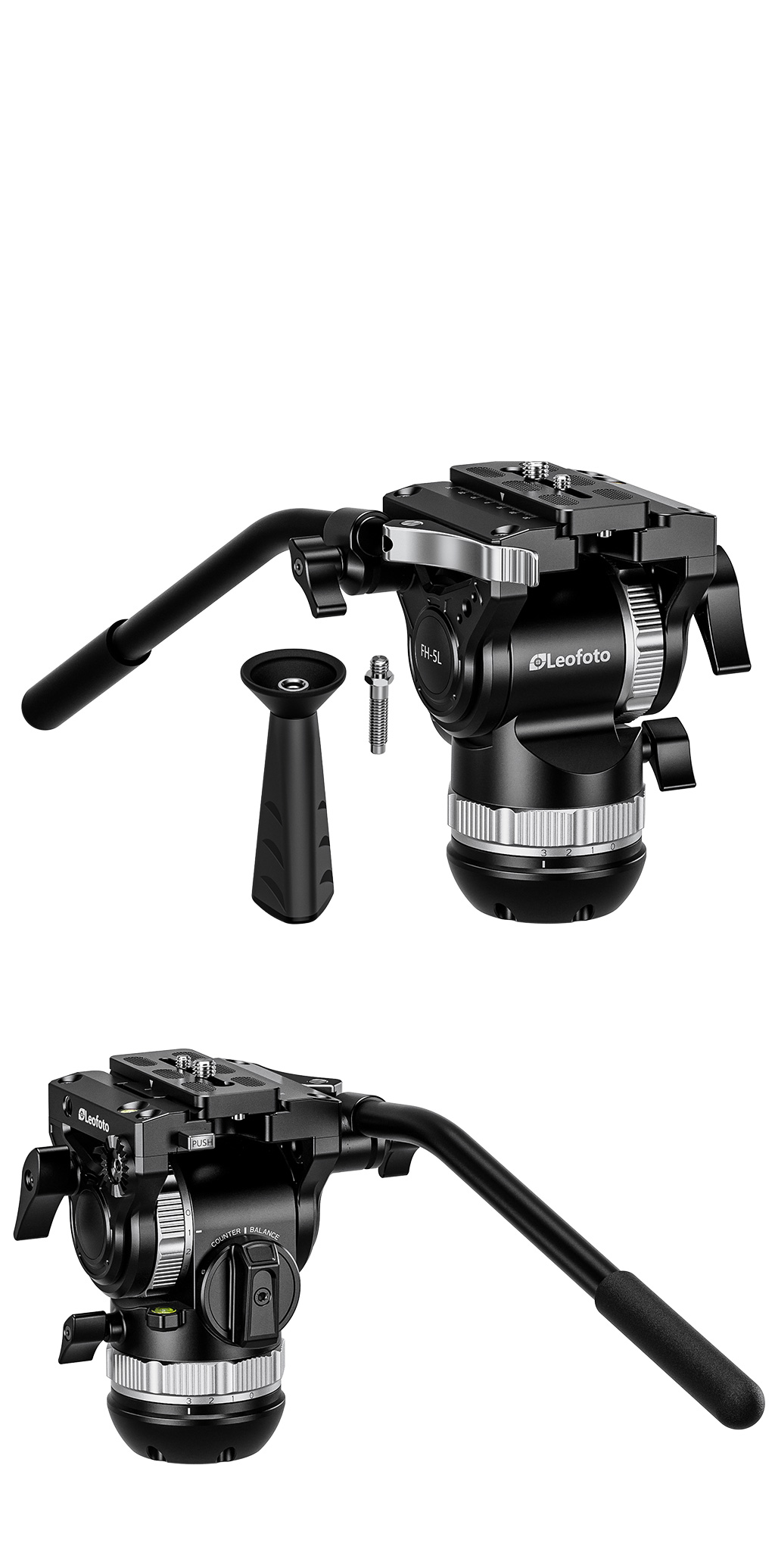

Tripod handle
Custom designed for tripod, made from stainless steel, TPE, PA, PC and silicon etc. Easy to install without tool, convenient and fast. Featured with 4 location pins for anti-twisting. Can be mounted on both horizontal and vertical direction.

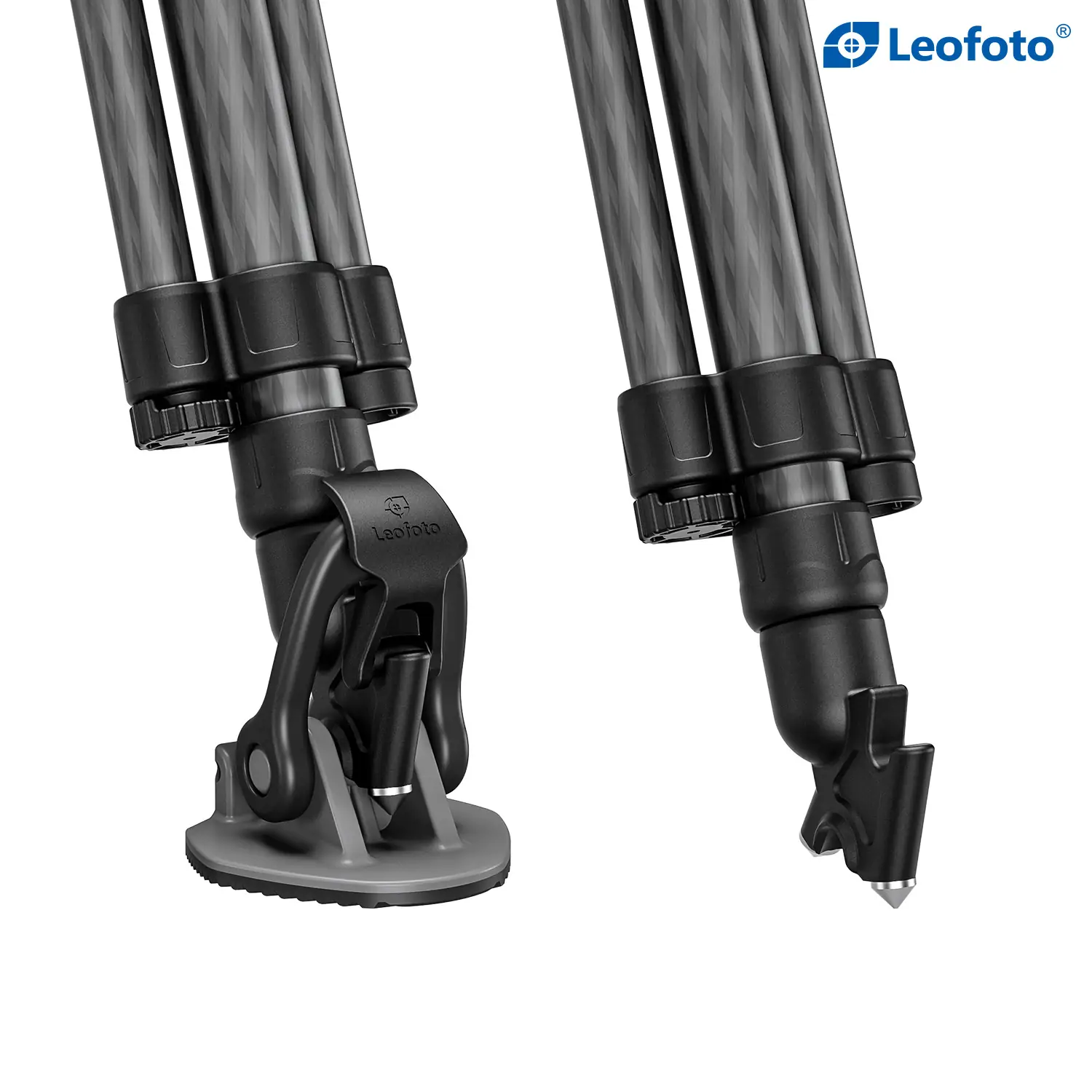

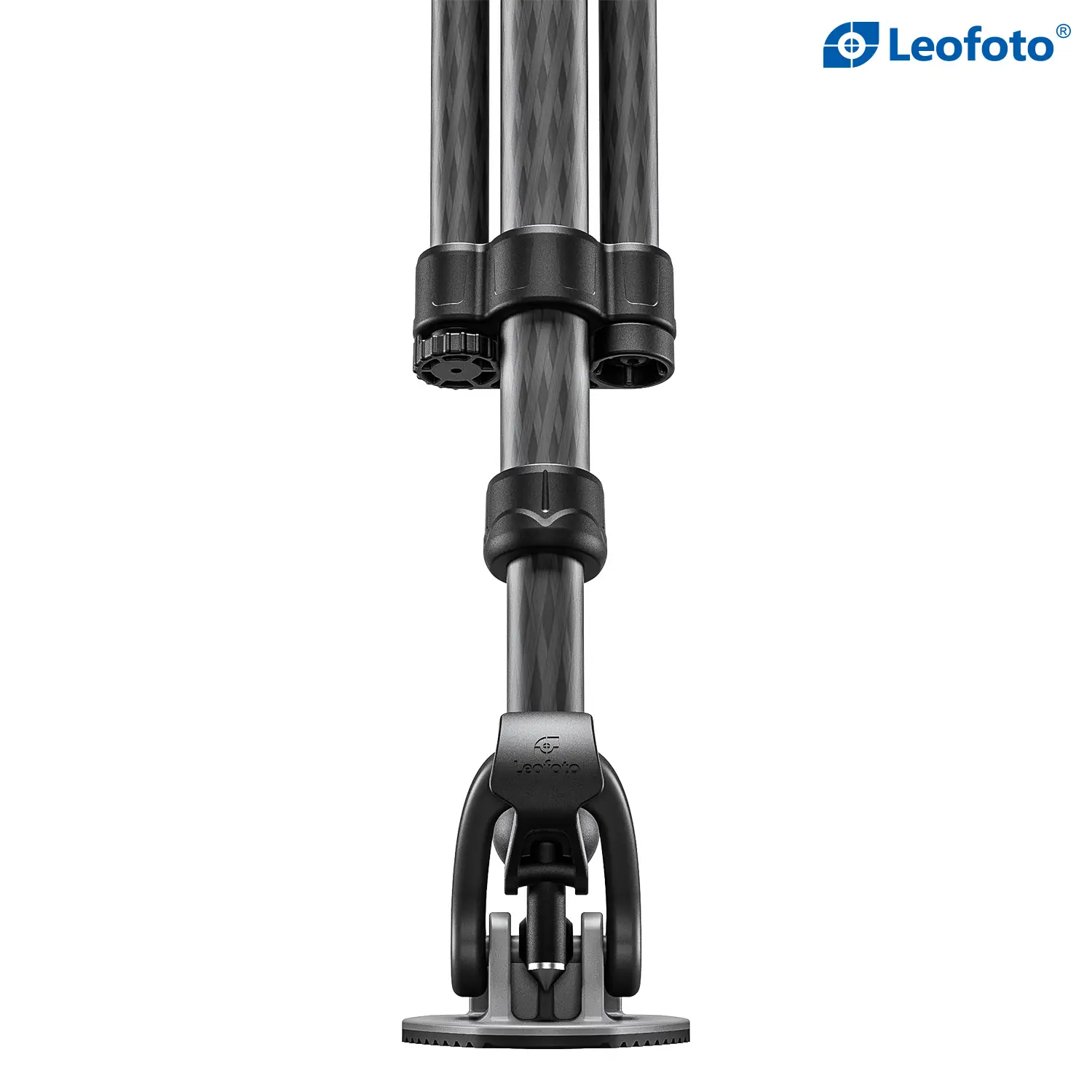

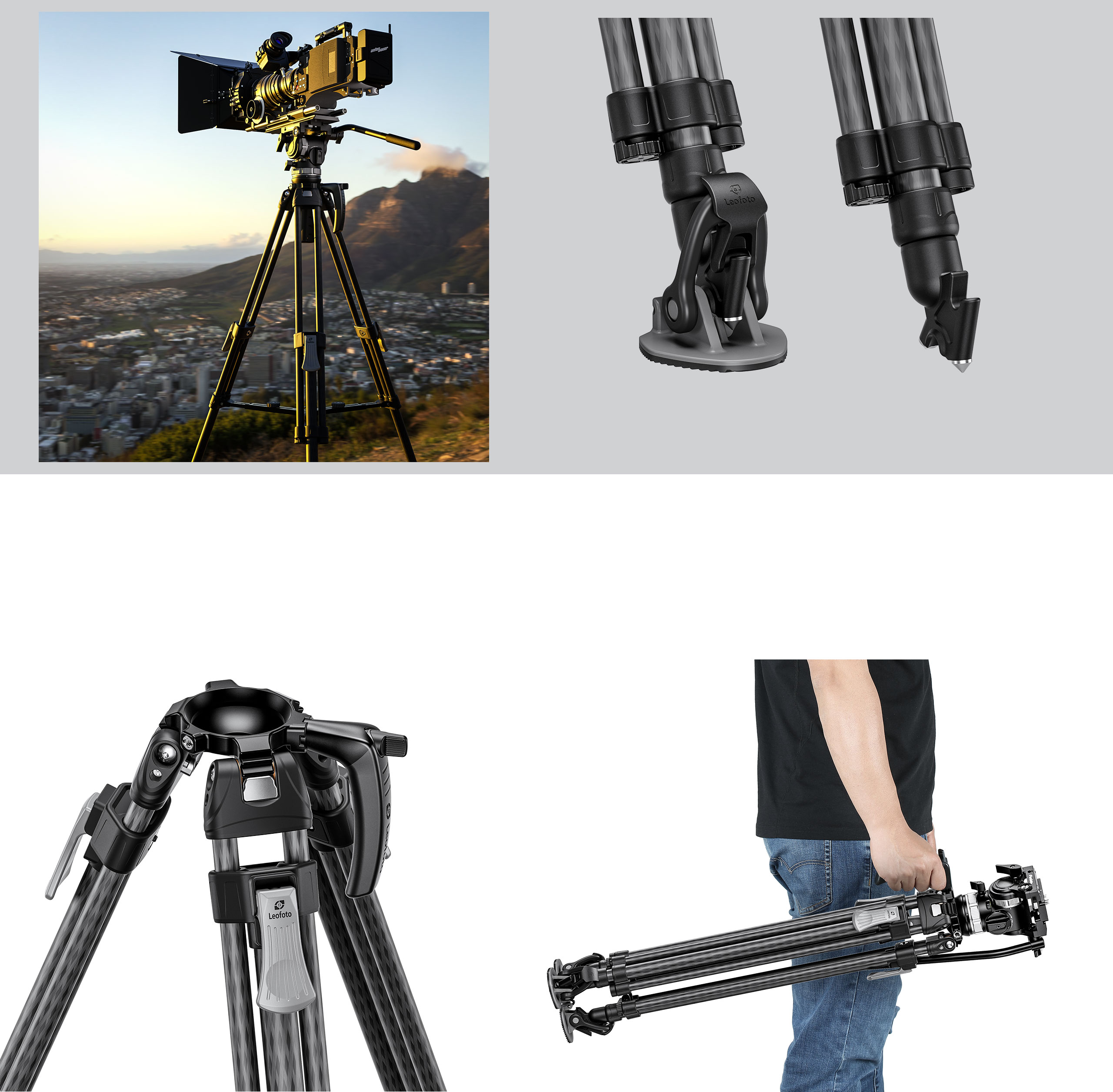

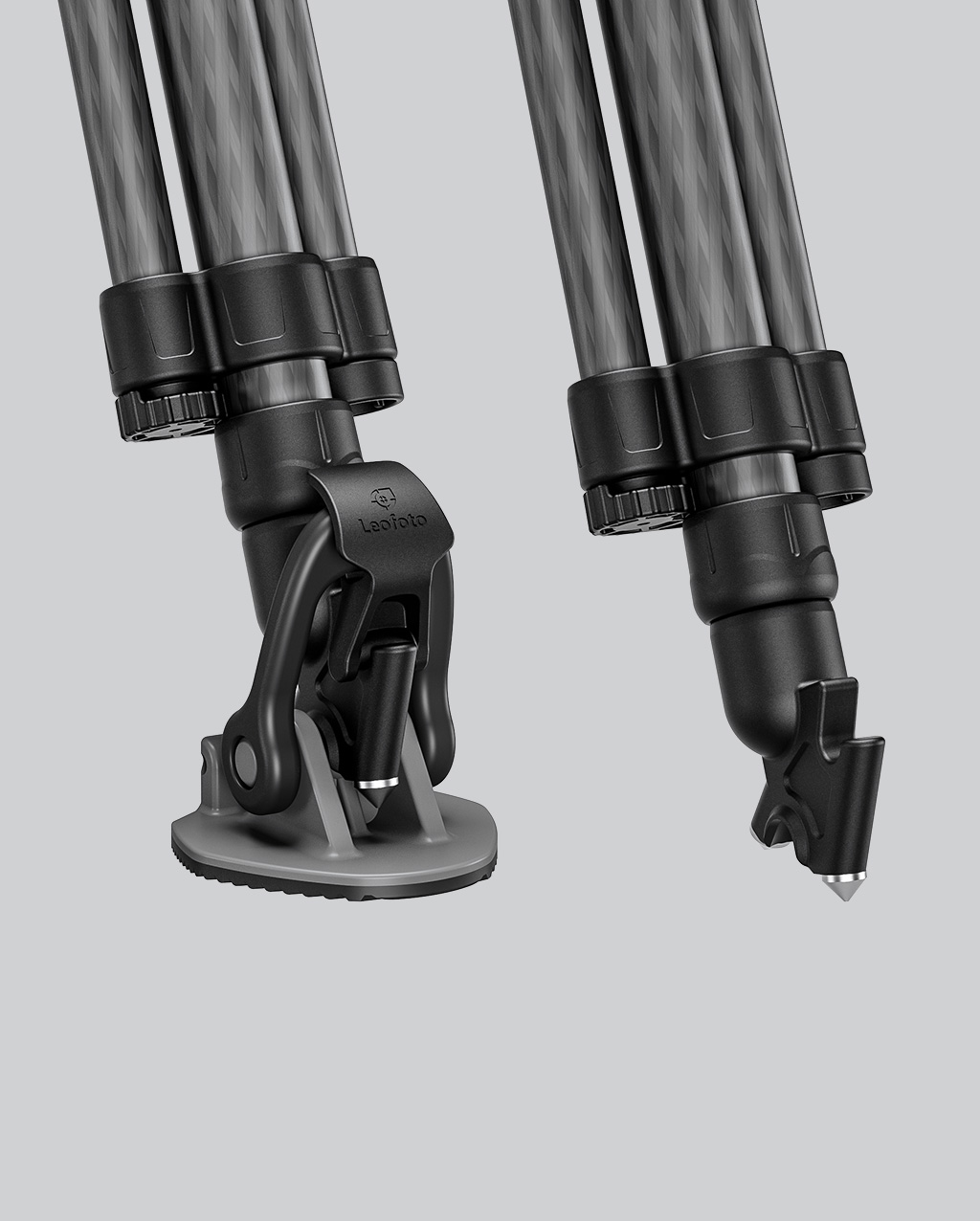

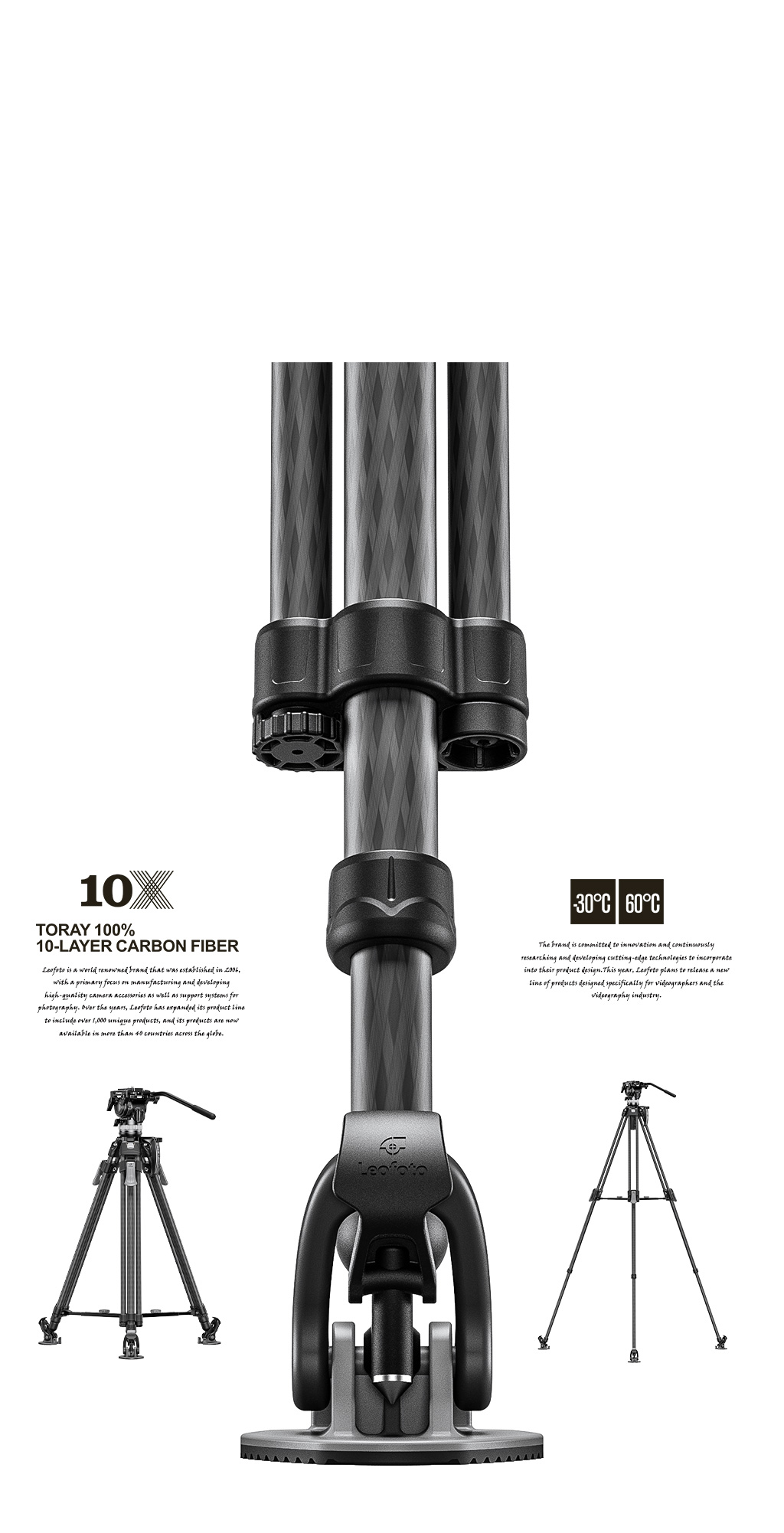

Hoof-shaped rubber feet
Stainless steel spike feet and hoof-shaped rubber feet make the tripod more flexible in different environments.

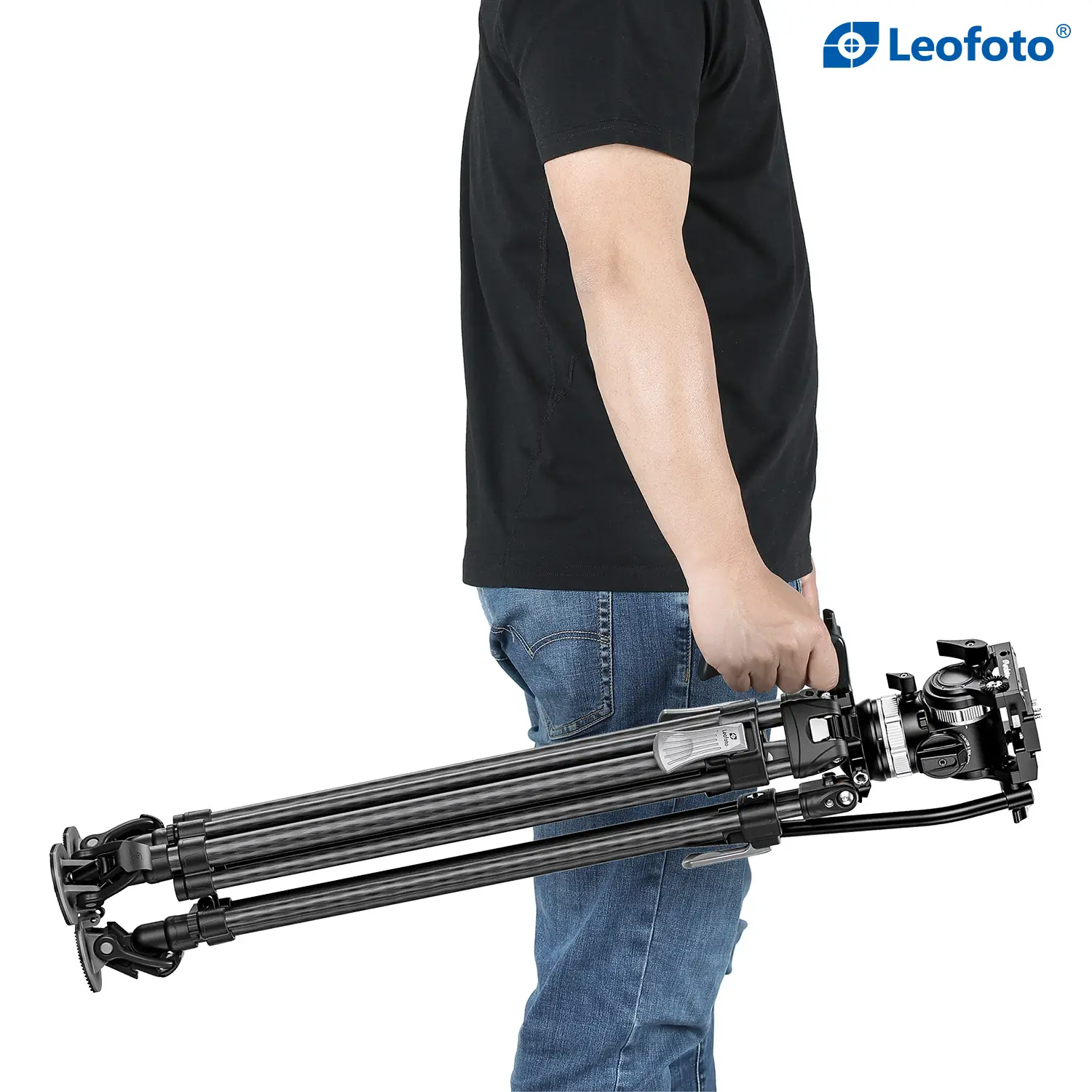

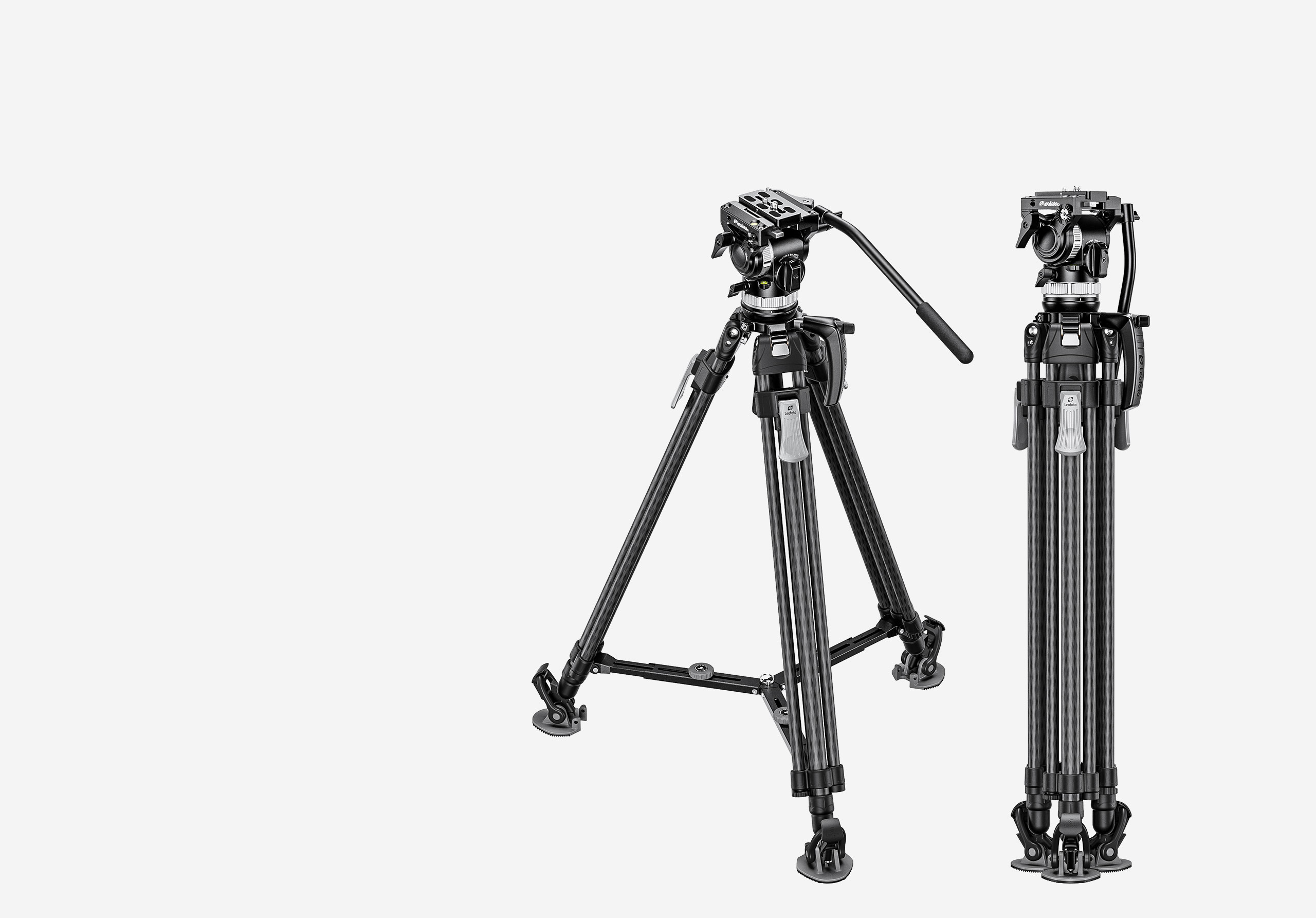

Compact and lightweight
20Kg stated maximum payload
Optional geared 360 degrees
Compatible with Arca-Swiss style components

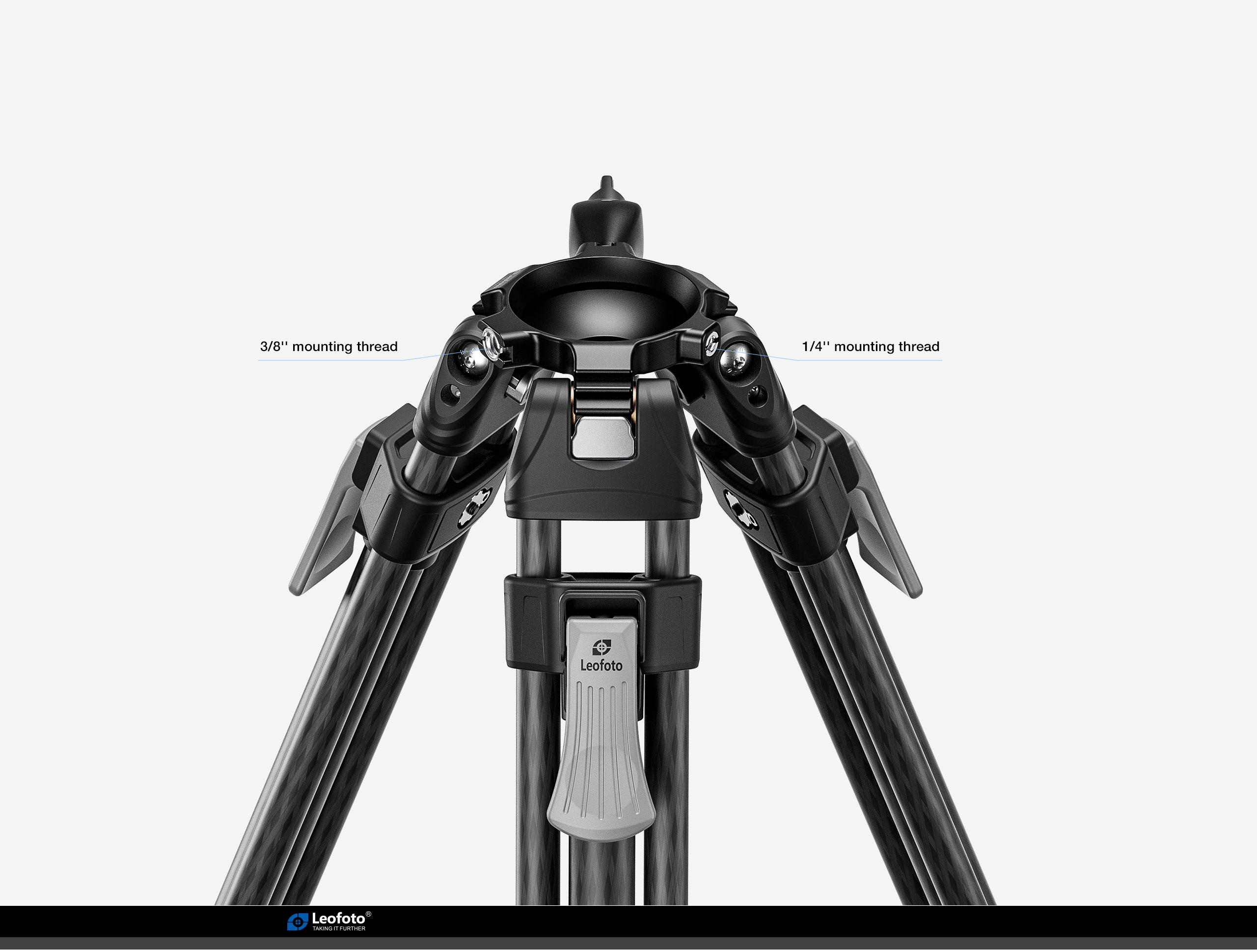

75 mm Half Ball

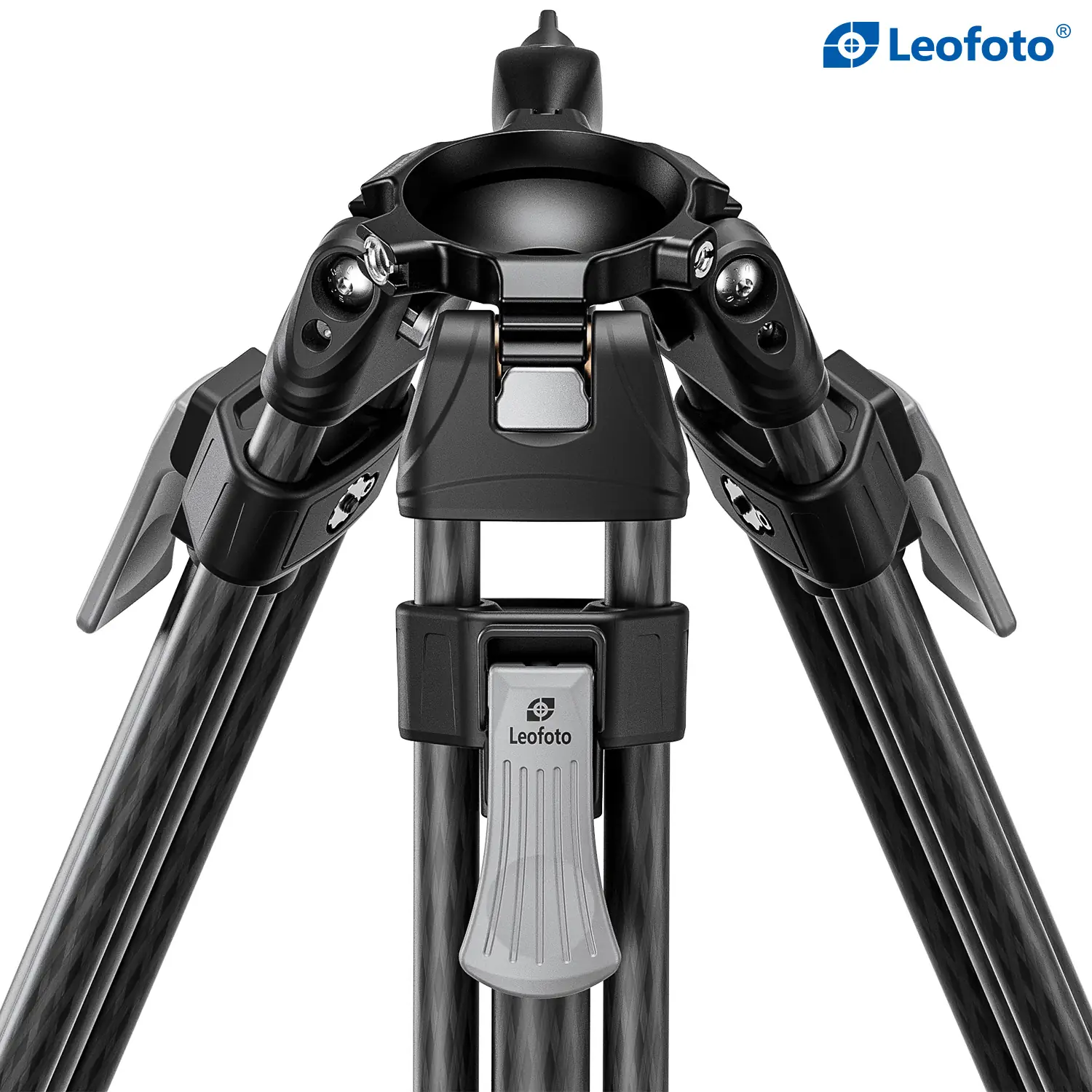

LVF’s spider designed to integrate the half bowl and spider, so there is no need to install the half bowl when users install the video head.

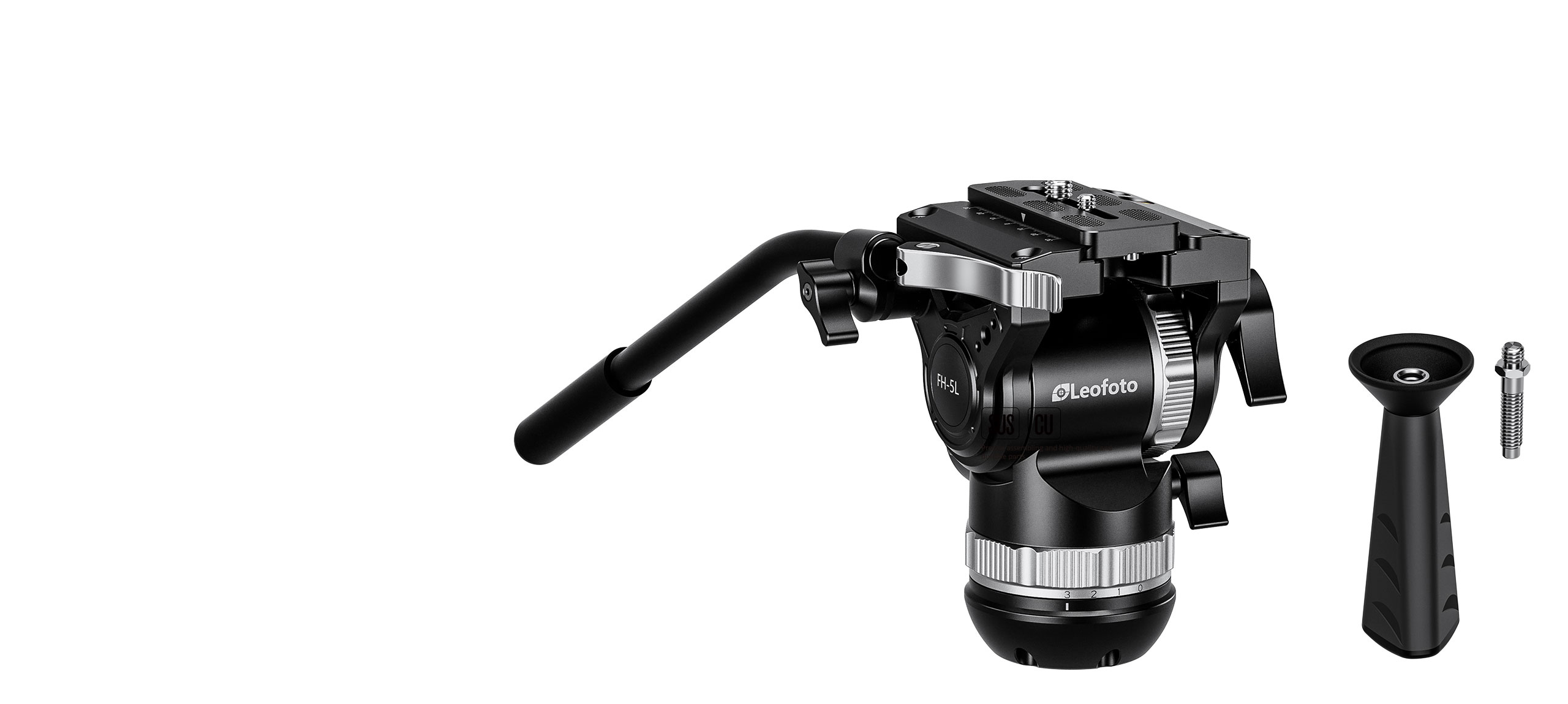

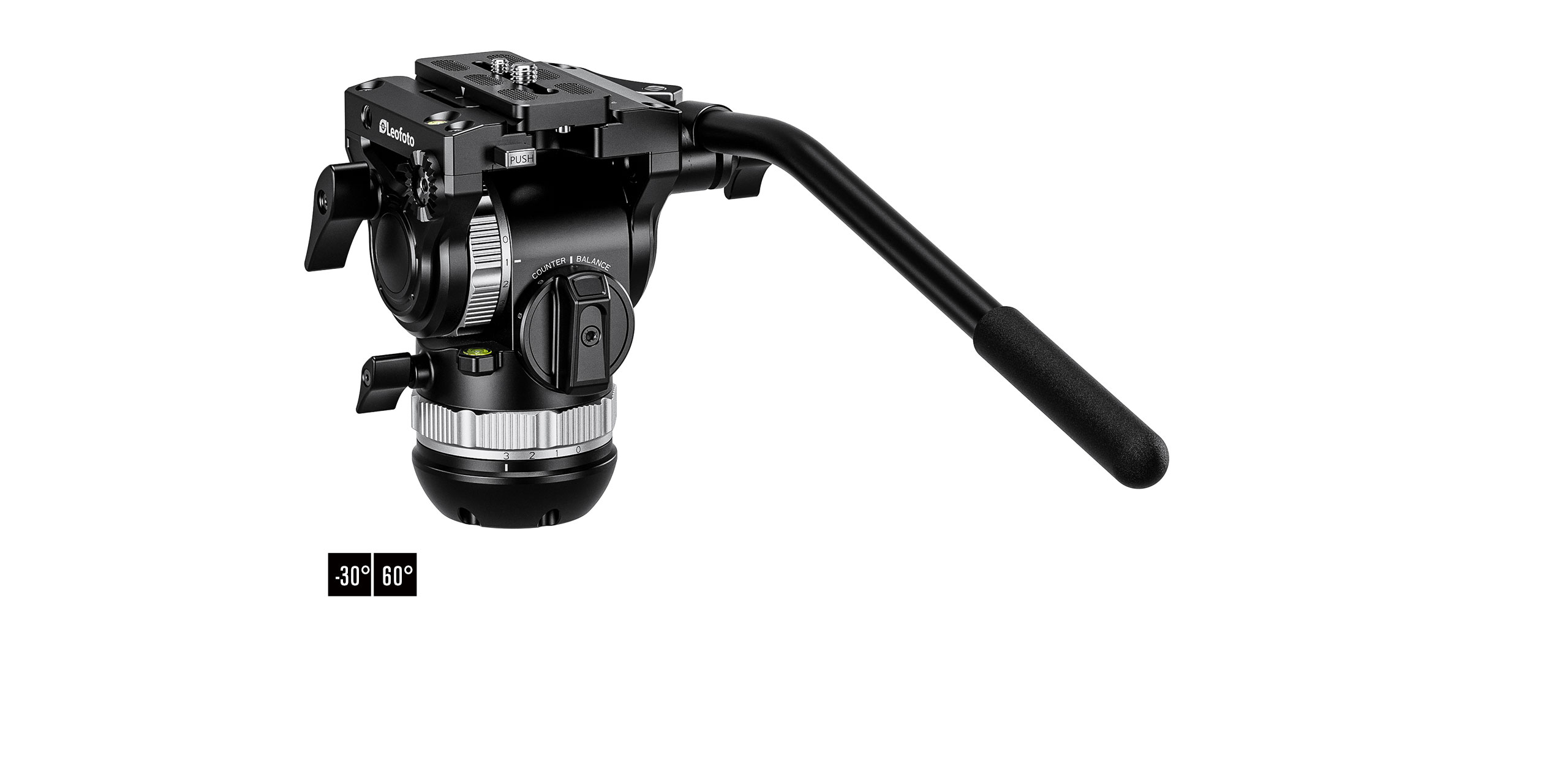

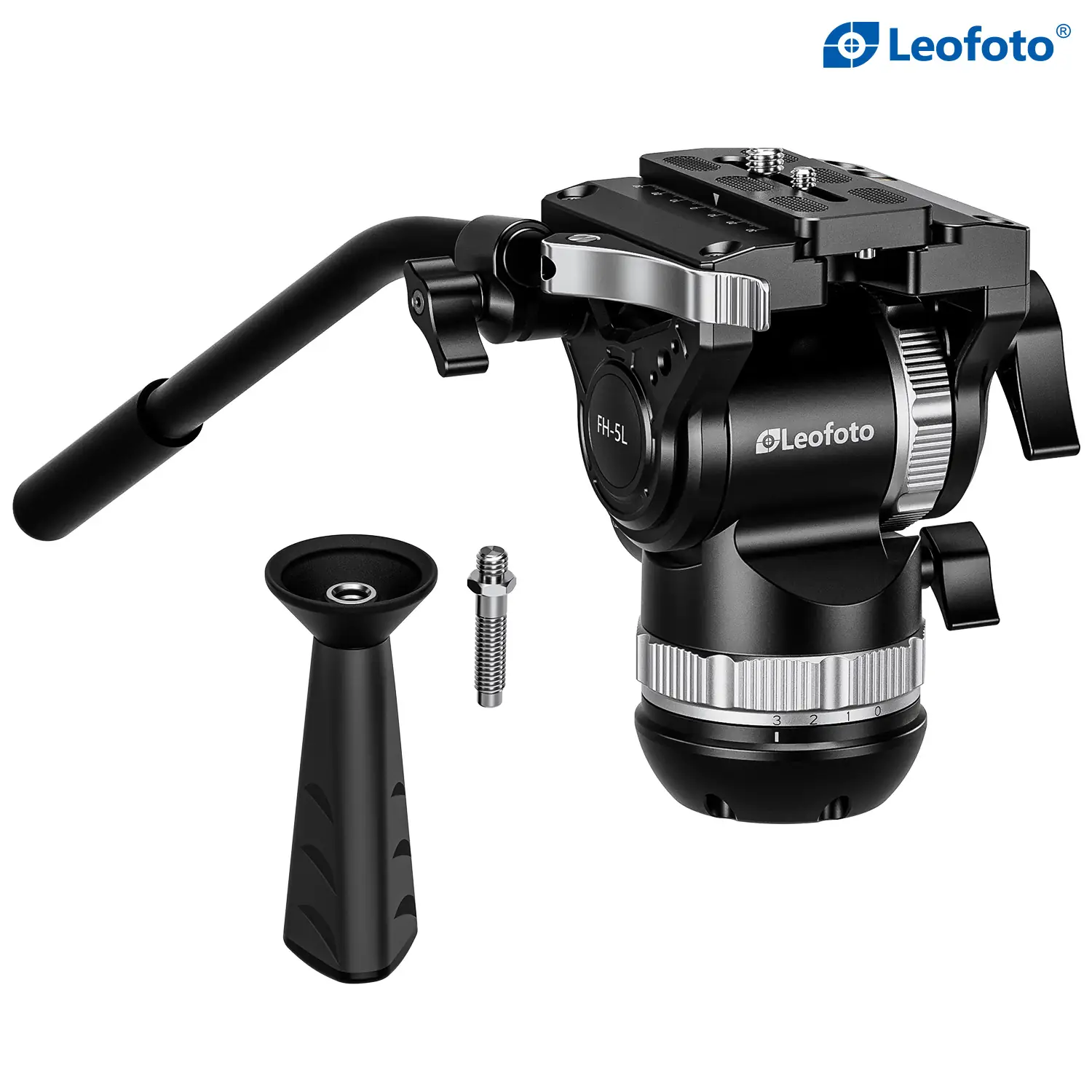

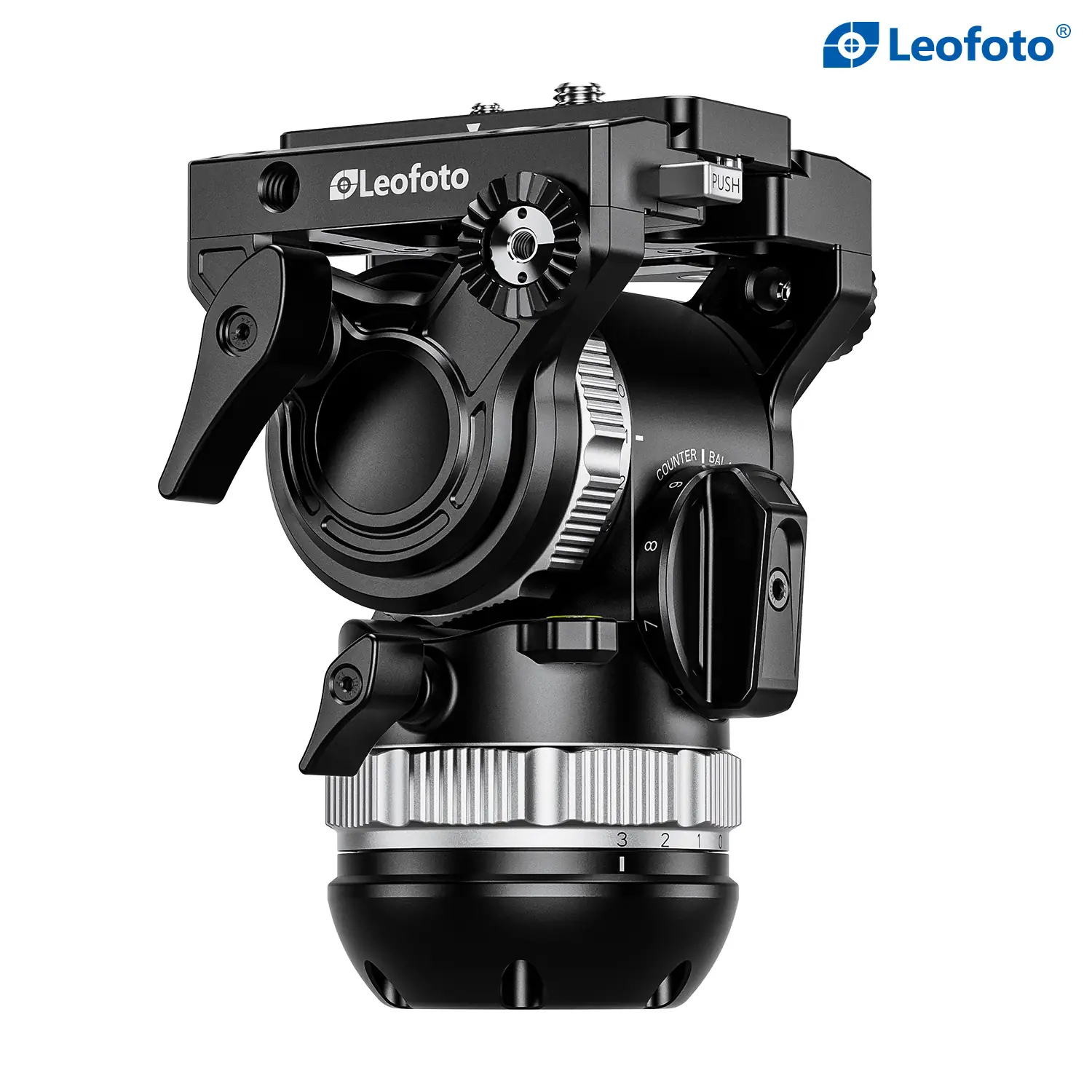

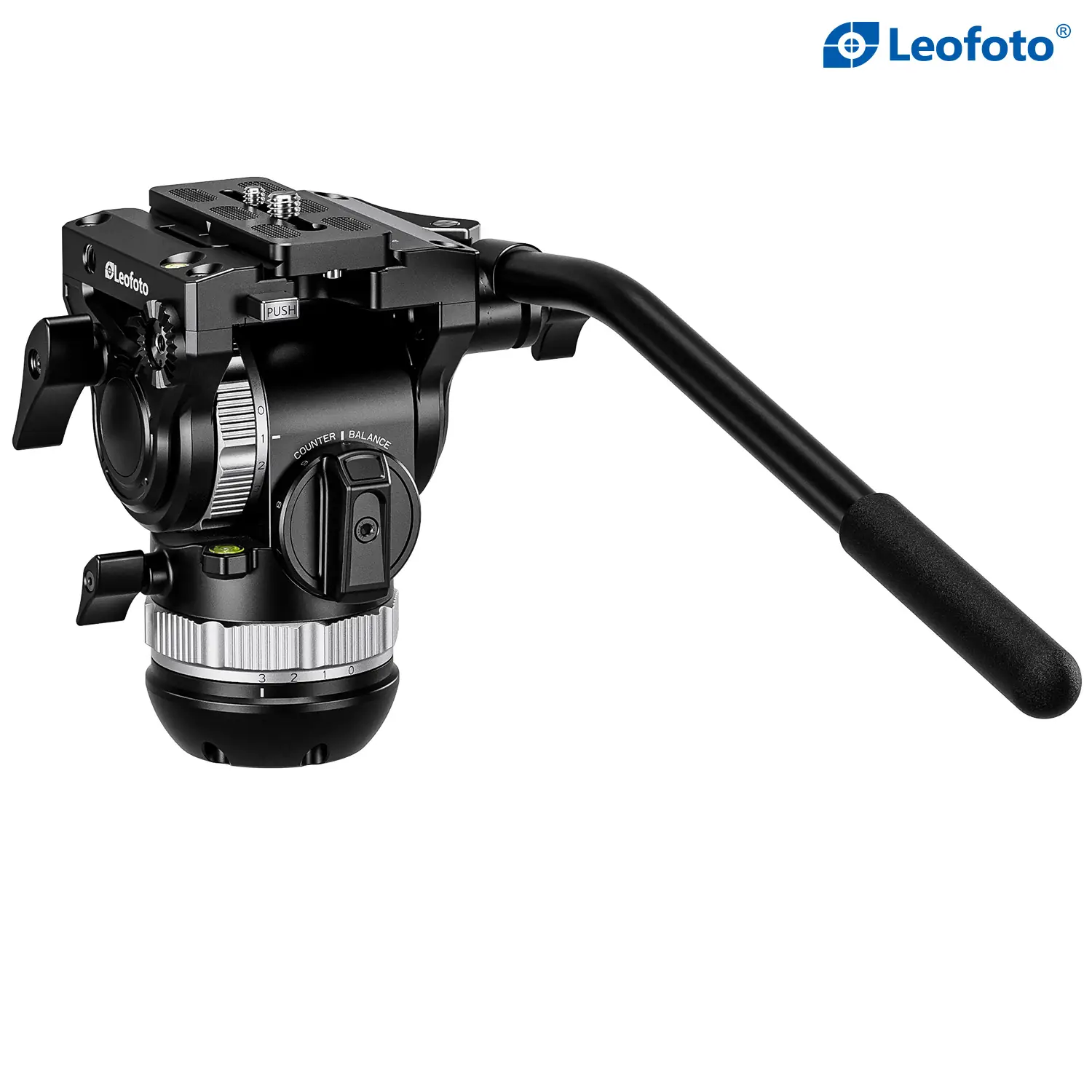

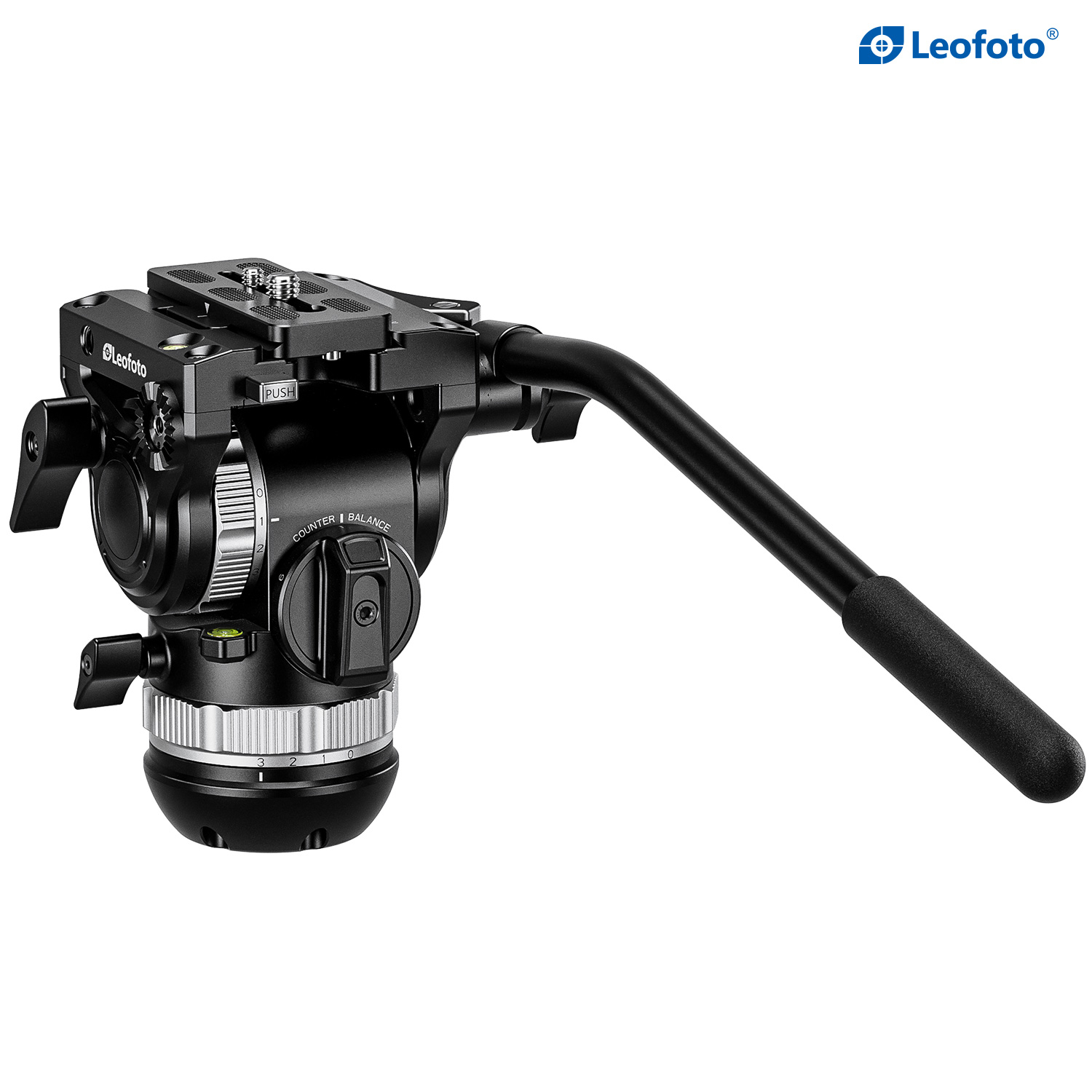

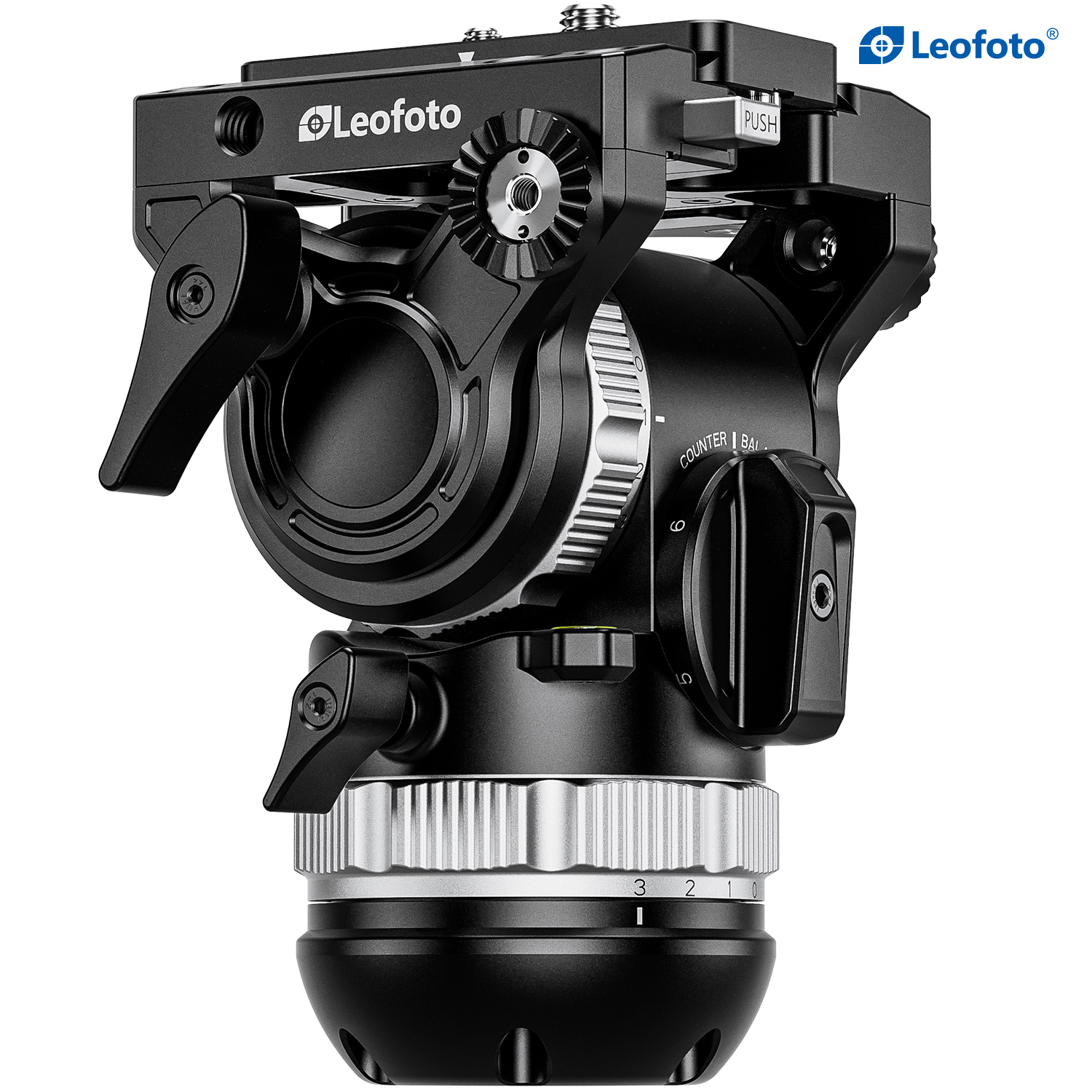

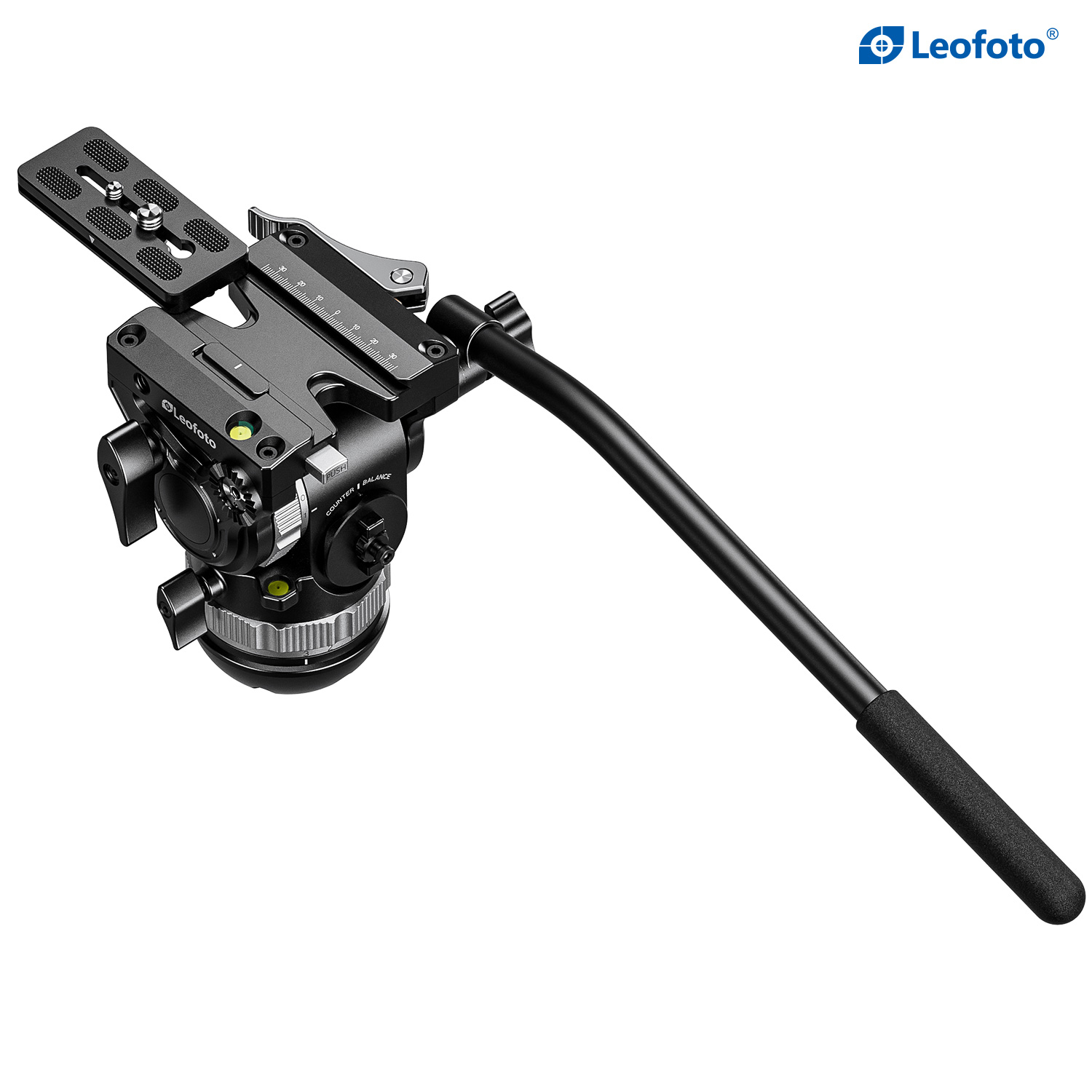

FH-5L FLUID VIDEO HEAD
FH-5L is Leofoto’s newly developed professional fluid head. Featured excellent functions, top quality and precision, ergonomics, quick adjustment and smooth operation, Leofoto’s FH-5L is the perfect choice for videos, bird-watching, long lens photography etc. Featured a precise and continuous rebound balance system, it is a perfect option for most of the video cameras.Precise and smooth tilting system and 90°\-60° damping adjustment. The clamp features a automatic lock system which protects the camera from sudden falling down. To remove the quick release plate, just push the silver security lock.
Low-temperature test of products Lubricant in all Leofoto products is all Nichimoly brand made in Japan, which can make sure all the products can be used at -30° to 60° without any problem.

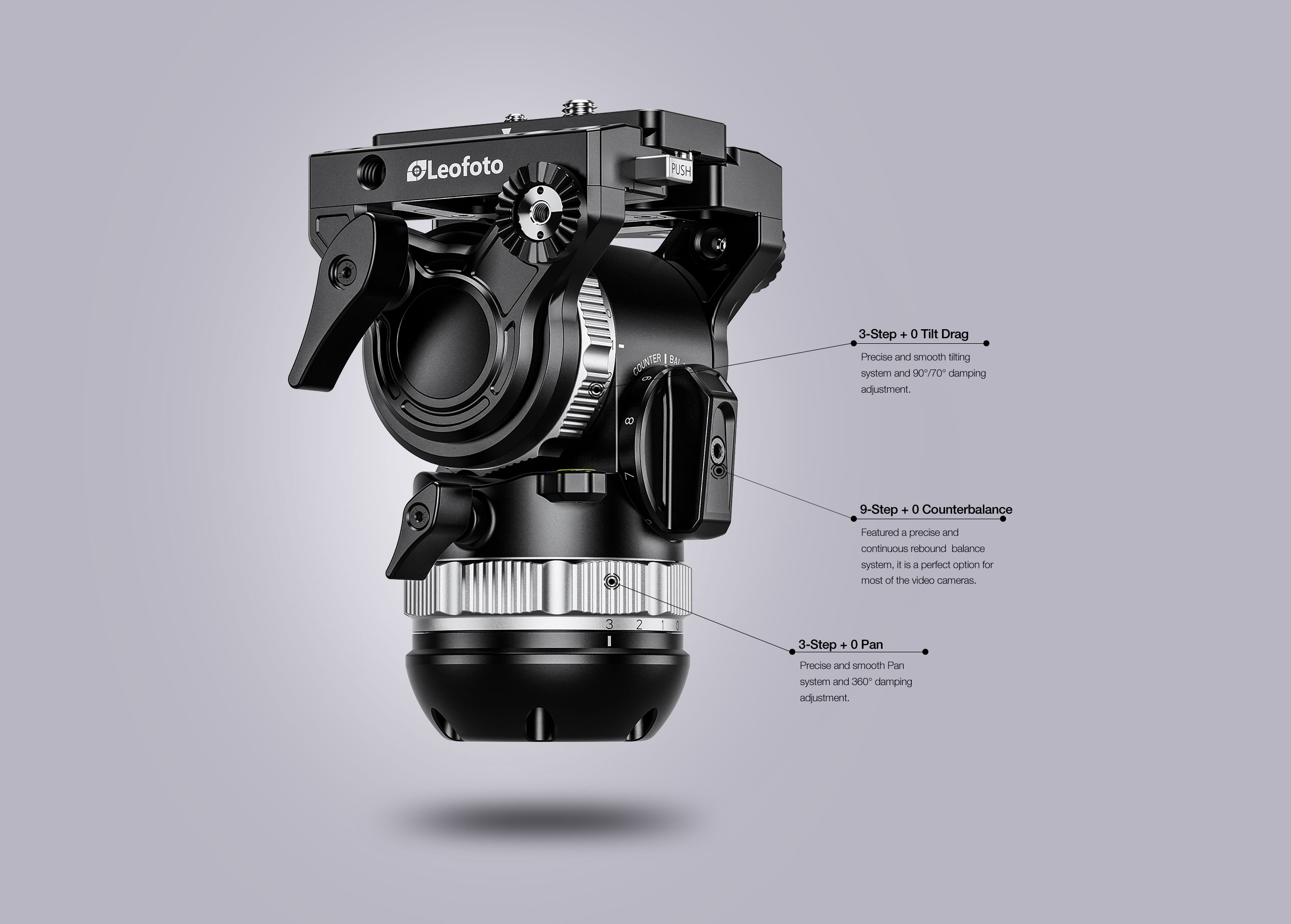

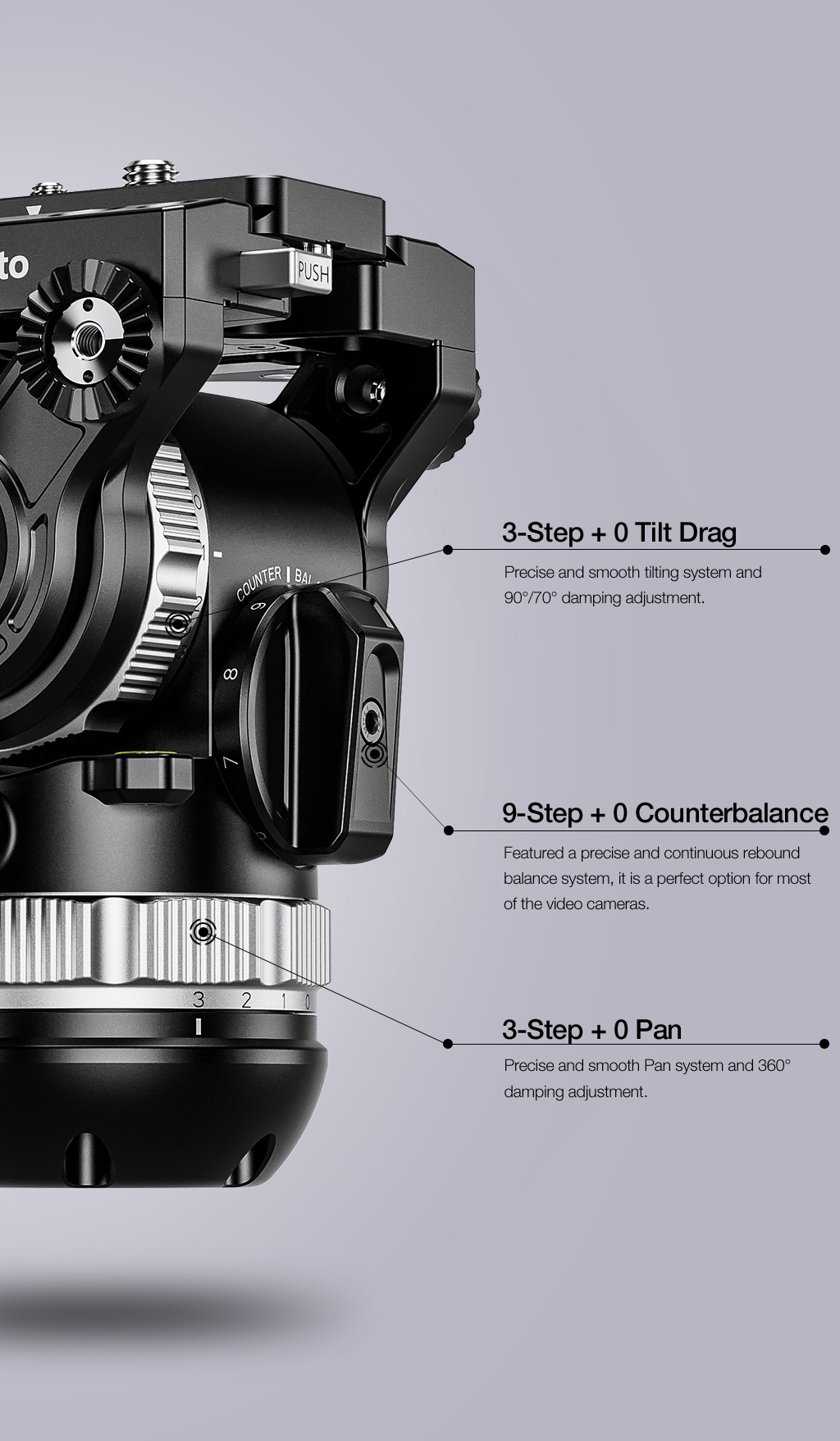

Fluid head · Tilt lock design
Ergonomic fluid tension, smooth tilting and moving 360 easy and smooth panning

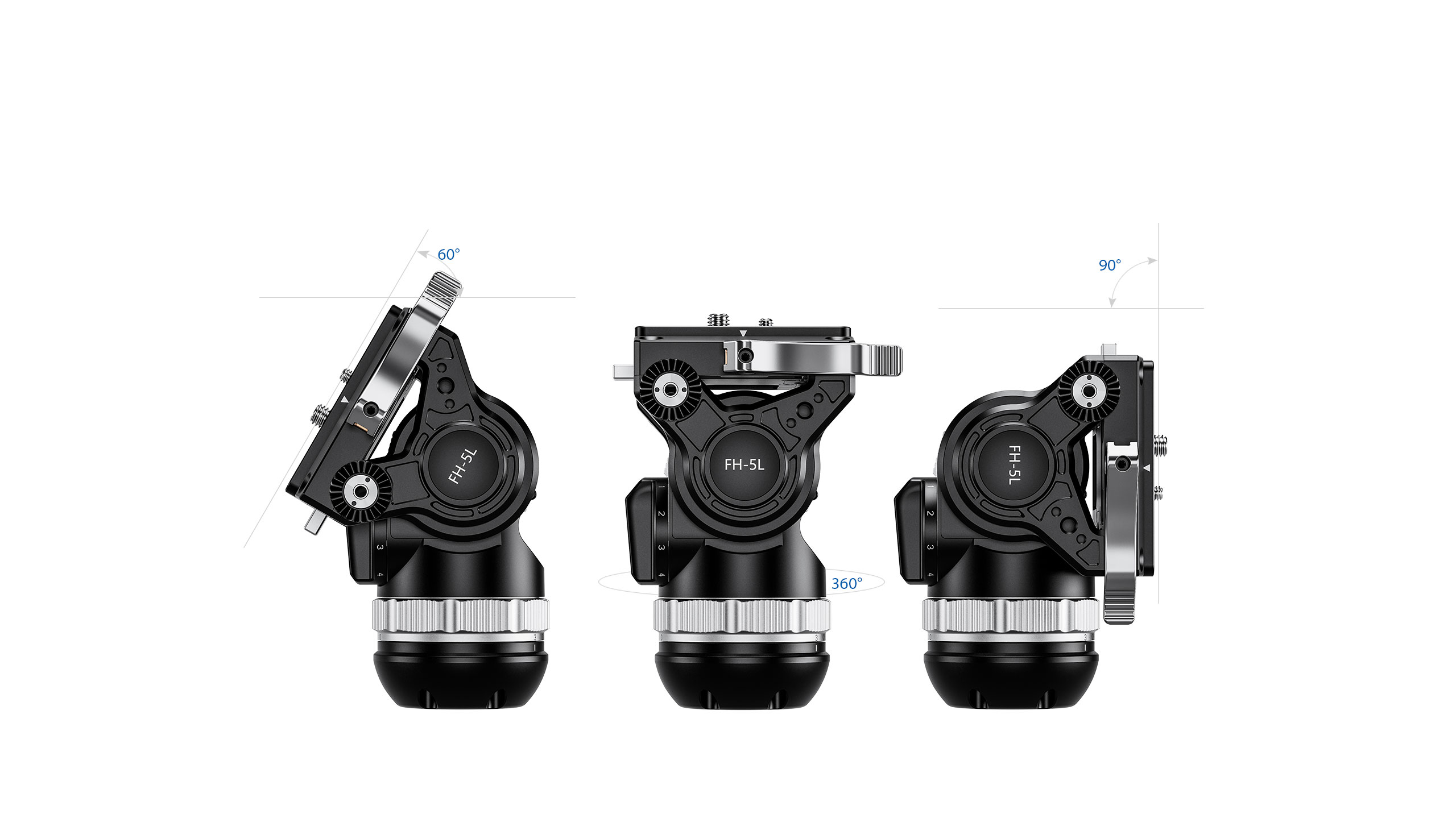

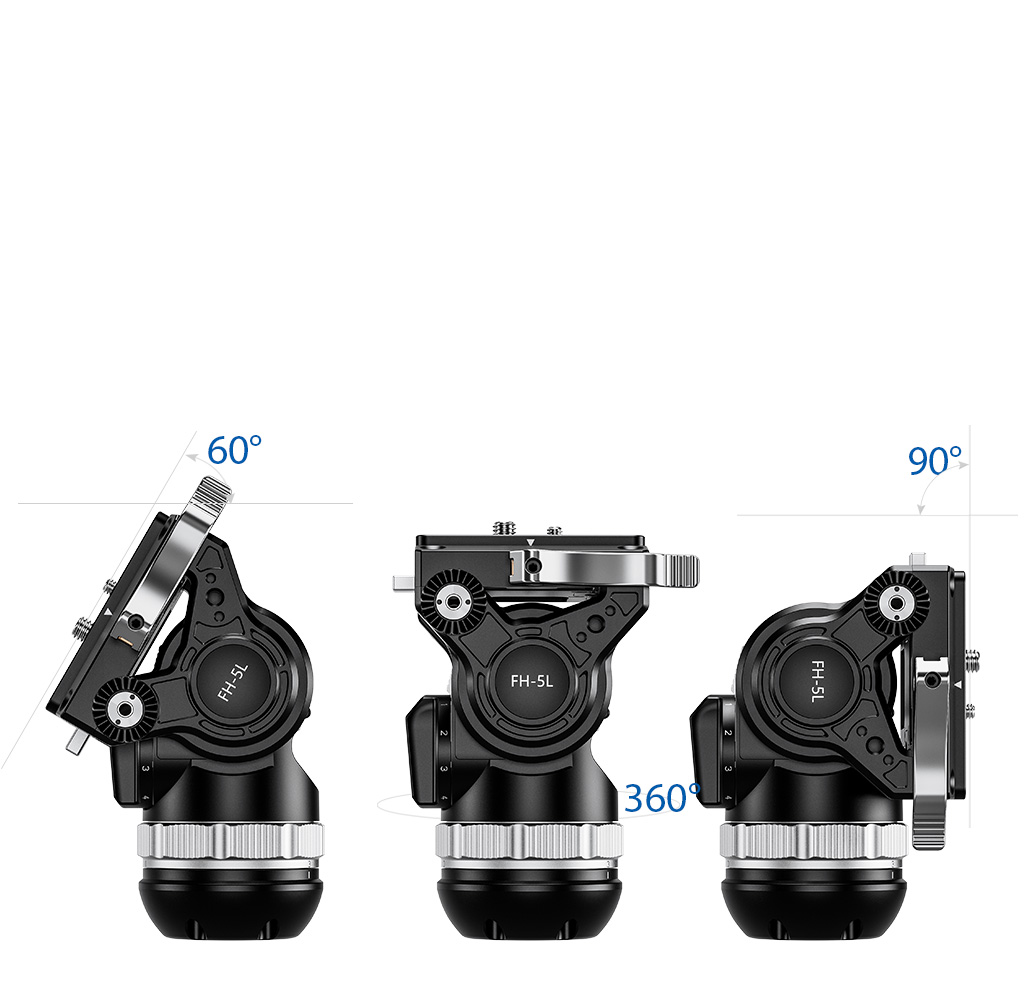

Tilt angle: 90°←→-60°, 360° Panning

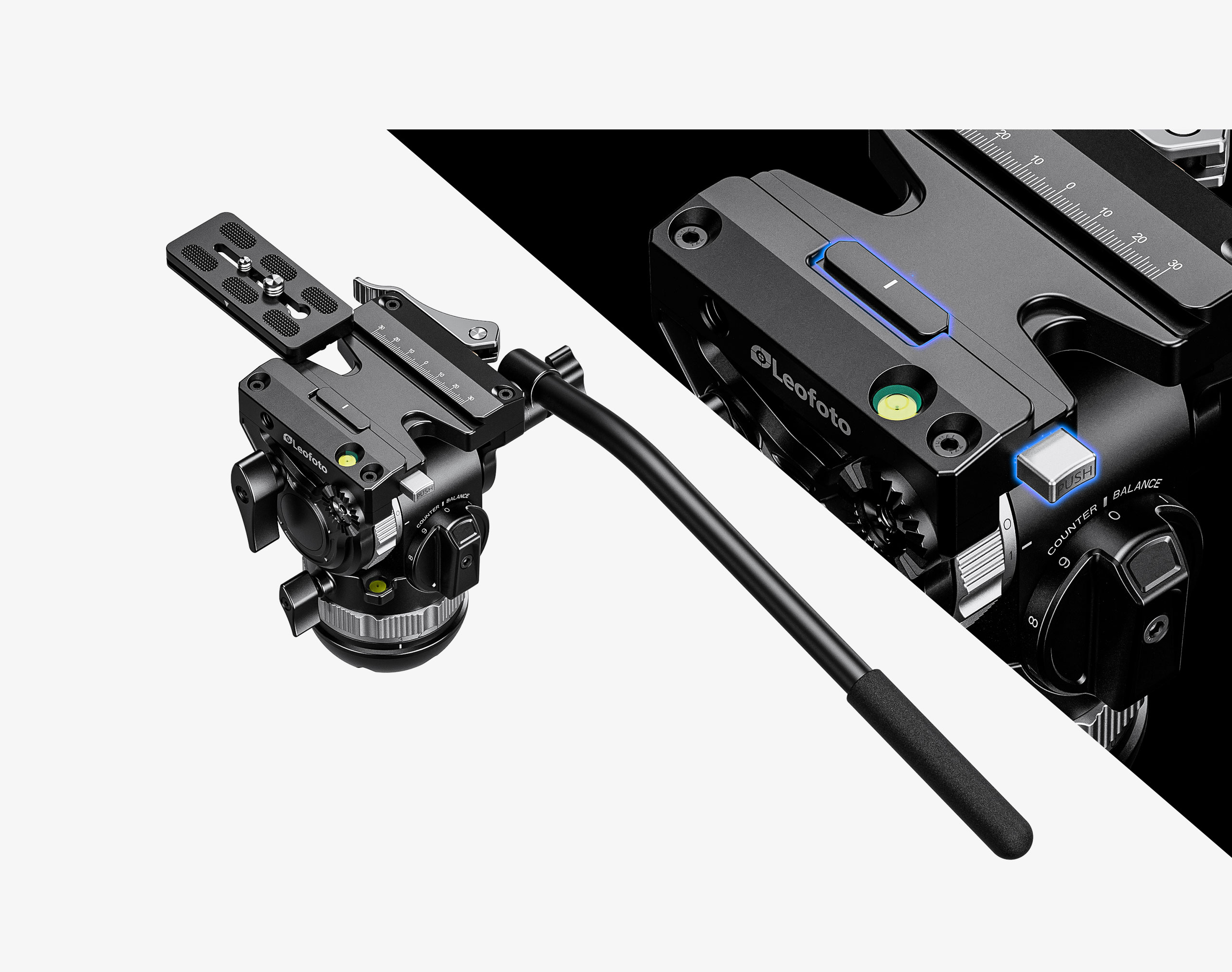

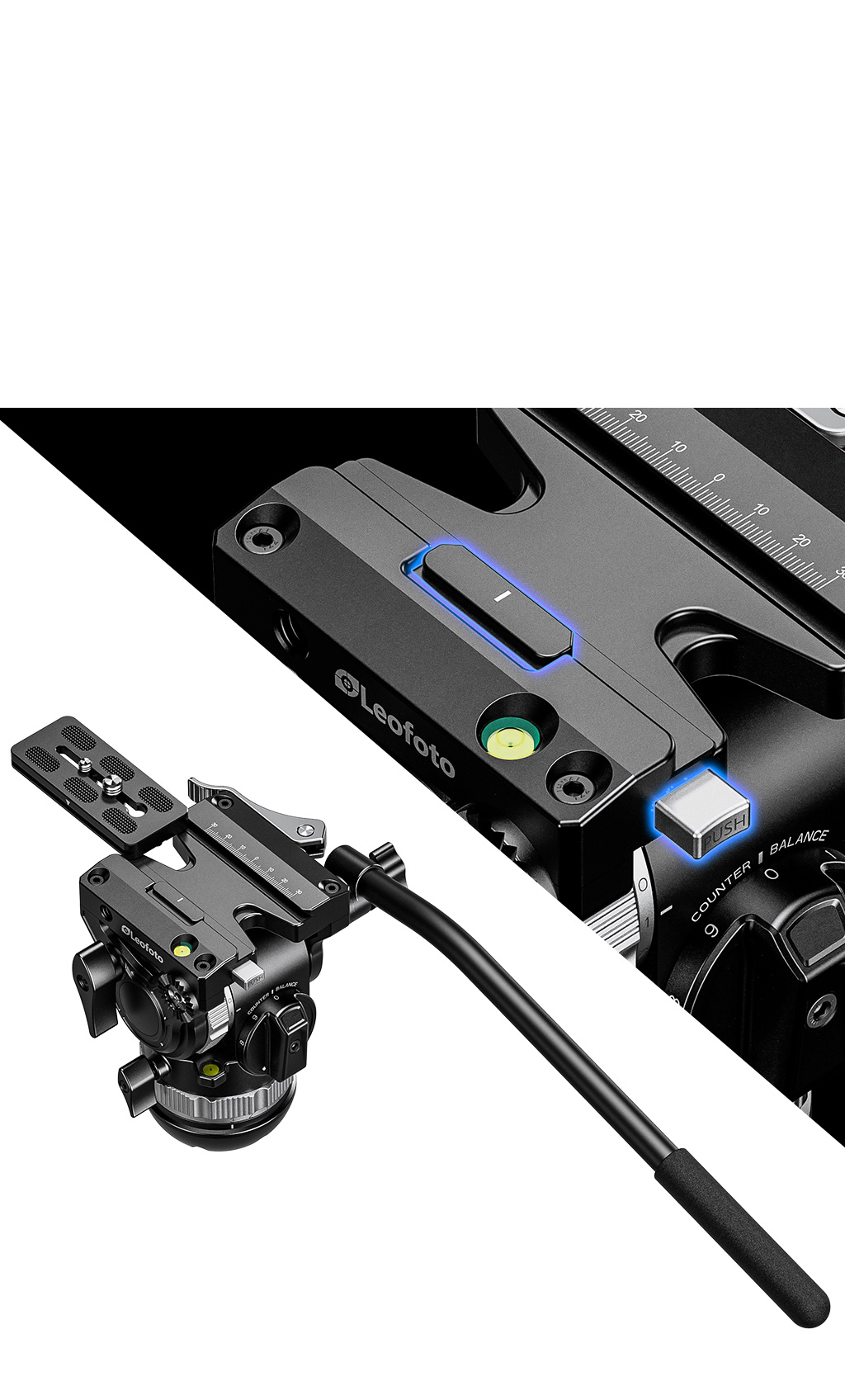

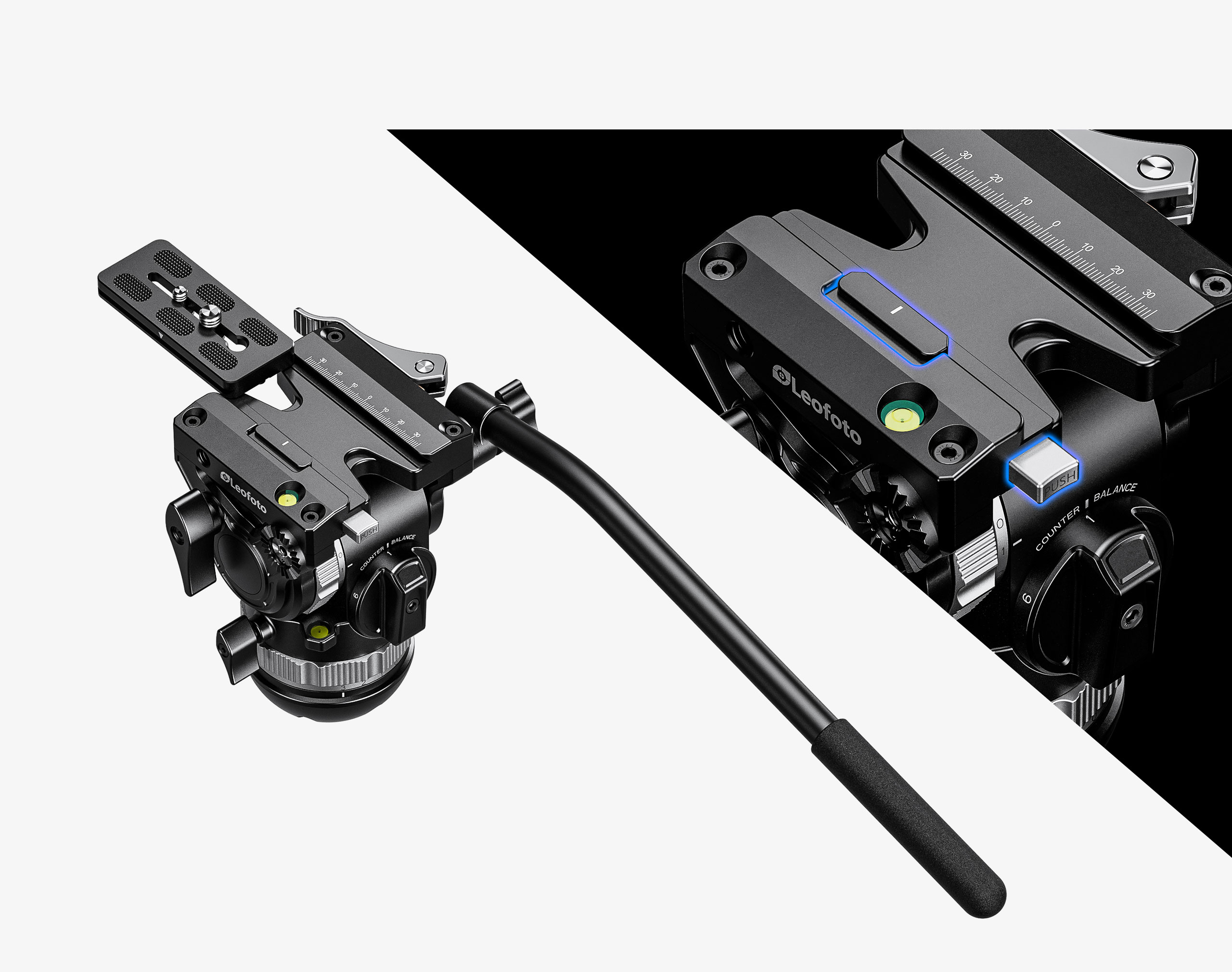

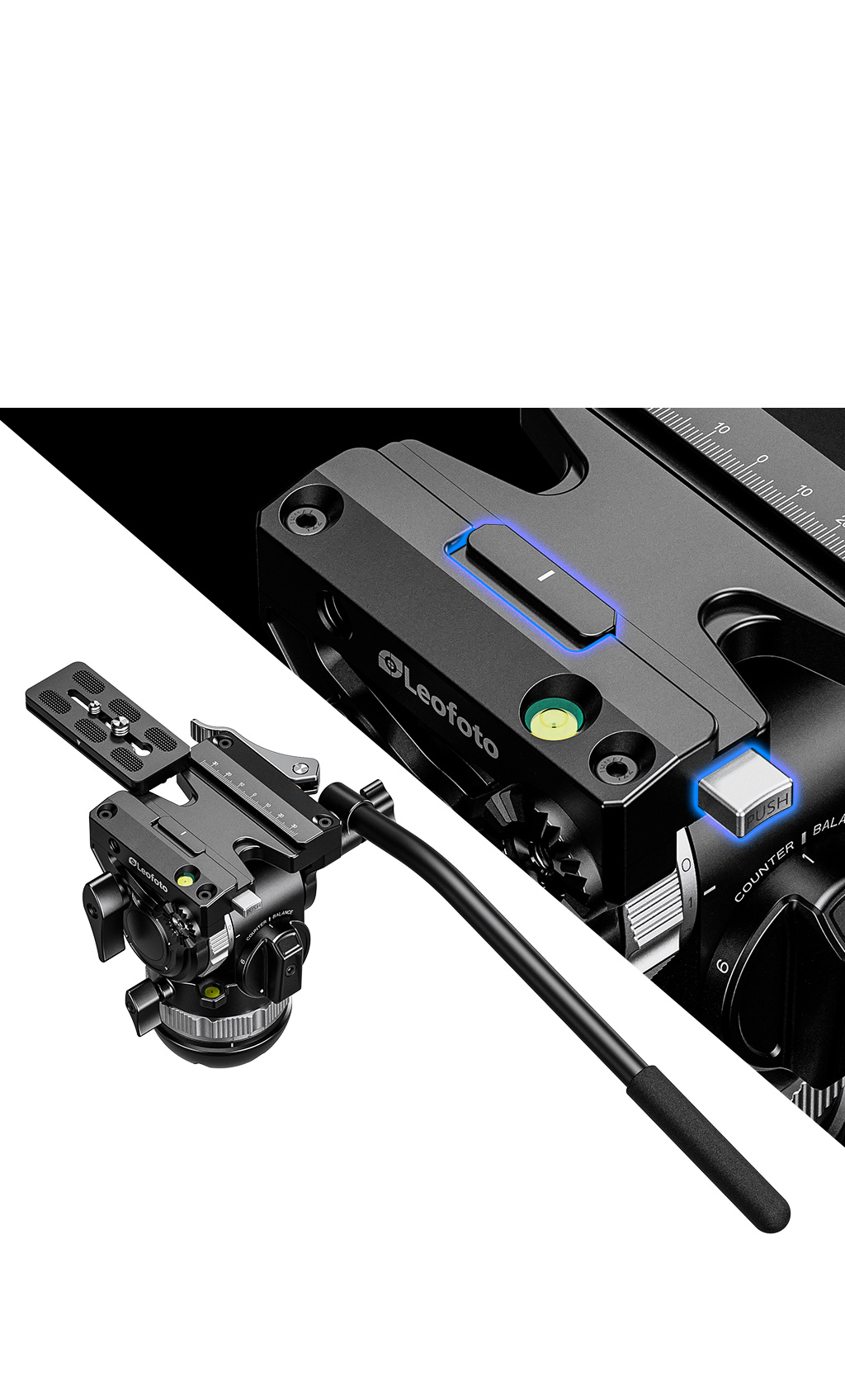

Press & release clamp for fast attachment/detachment of plate
The clamp features a automatic lock system which protects the camera from sudden falling down. To remove the quick release plate, just push the silver security lock.

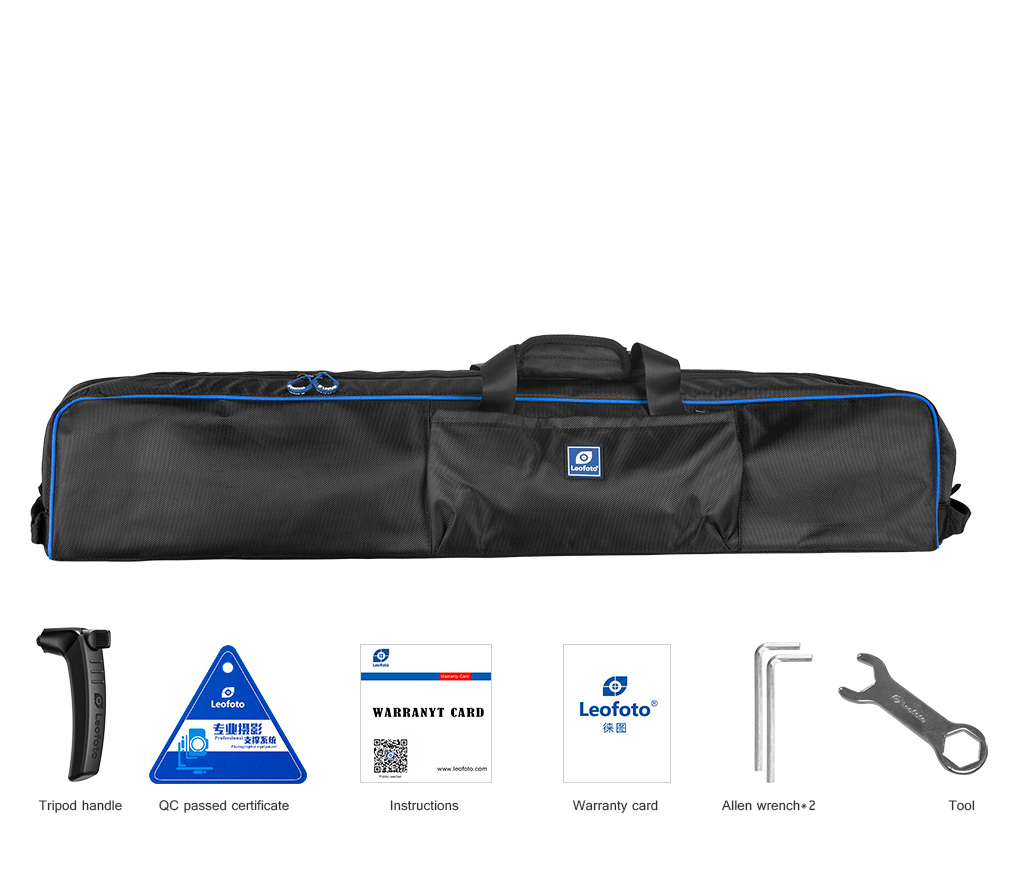

Tripod handle
QC passed certificate
Instructions
Warranty card
Allen wrench*2
Tool
Packaging and accessories
LVF-143C+FH-5L
BORING Series
Twin Leg Design
One Button Unlocking
Two ways of adjustment
The Leofoto LVF Series tripods feature dual leg tubes which offer greater rigidity and stability with two points of connection to the apex, the perfect choice for high-end cinematography and video. Traditional video tripods only come with a middle spreader system, but the LVF Series comes with an adjustable spreader system which enables the user to switch between a ground and mid-level spreader adding flexibility. These tripods are made of carbon flber for light weight and have the ability to collapse into a compact size for portability.
One Button Unlocking
One-button lock design is easy and quick for users to ajdust the height of the tripod, which allows photographers to capture every precious moment.
4 pcs tubes for each leg
Improved from 3 legs to 4 legs for double stability, perfect choice for high-end photography and video.has the ability to store down into a compact, easy to carry size.
Angle adjustment system
Switch of 3 positions and set-angle
Hoof-shaped rubber feet
Stainless steel spike feet and hoof-shaped rubber feet make the tripod more flexible in different environments.
Tripod handle
Custom designed for tripod, made from stainless steel, TPE, PA, PC and silicon etc. Easy to install without tool, convenient and fast. Featured with 4 location pins for anti-twisting. Can be mounted on both horizontal and vertical direction.

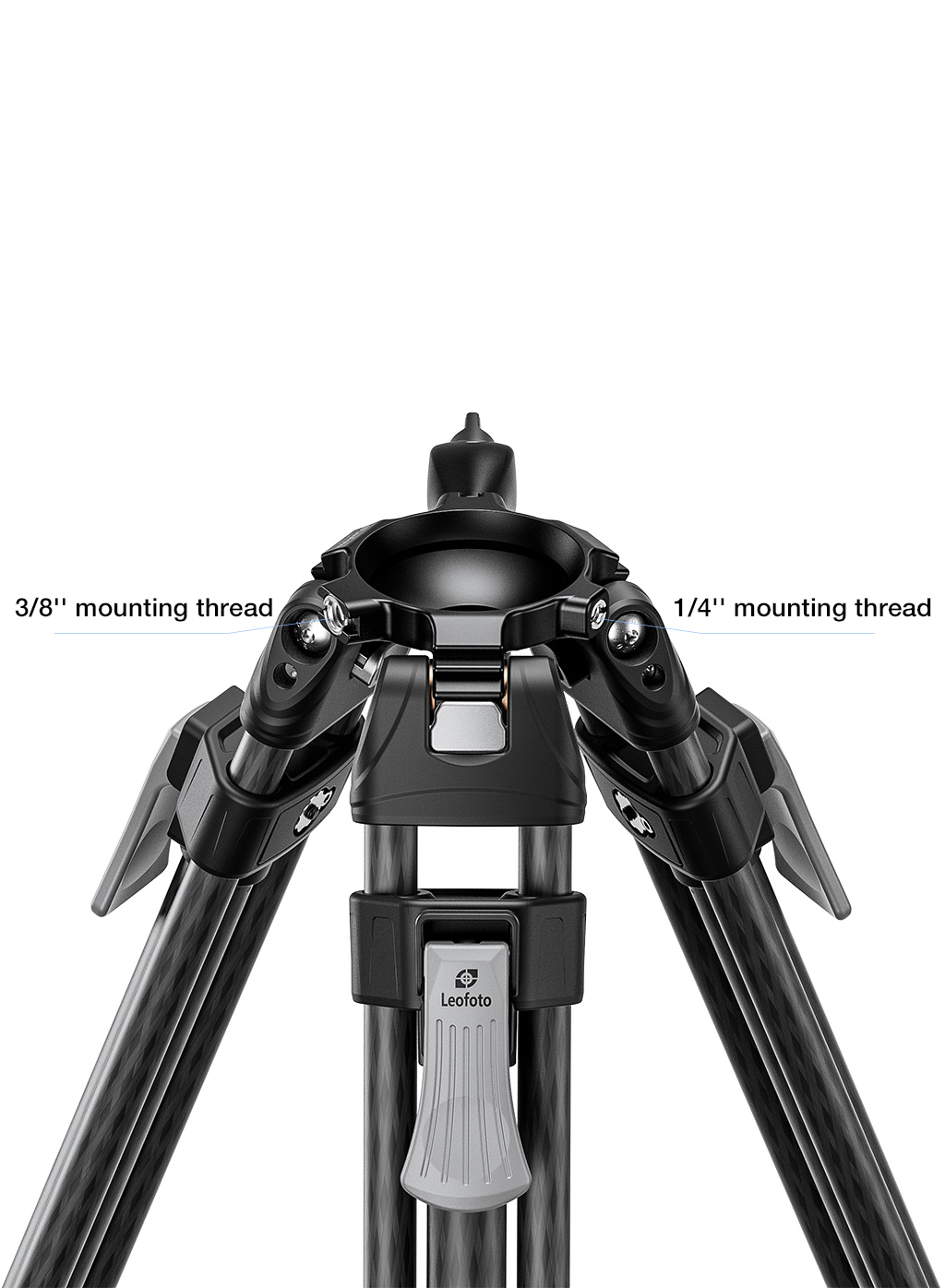

75 mm Half Ball
LVF’s spider designed to integrate the half bowl and spider, so there is no need to install the half bowl when users install the video head.
FH-5L FLUID VIDEO HEAD
FH-5L is Leofoto’s newly developed professional fluid head. Featured excellent functions, top quality and precision, ergonomics, quick adjustment and smooth operation, Leofoto’s FH-5L is the perfect choice for videos, bird-watching, long lens photography etc. Featured a precise and continuous rebound balance system, it is a perfect option for most of the video cameras.Precise and smooth tilting system and 90°\-60° damping adjustment. The clamp features a automatic lock system which protects the camera from sudden falling down. To remove the quick release plate, just push the silver security lock.
Fluid head · Tilt lock design
Ergonomic fluid tension, smooth tilting and moving 360 easy and smooth panning
Tilt angle: 90°←→-60°, 360° Panning
Press & release clamp for fast attachment/detachment of plate
The clamp features a automatic lock system which protects the camera from sudden falling down. To remove the quick release plate, just push the silver security lock.
Packaging and accessories

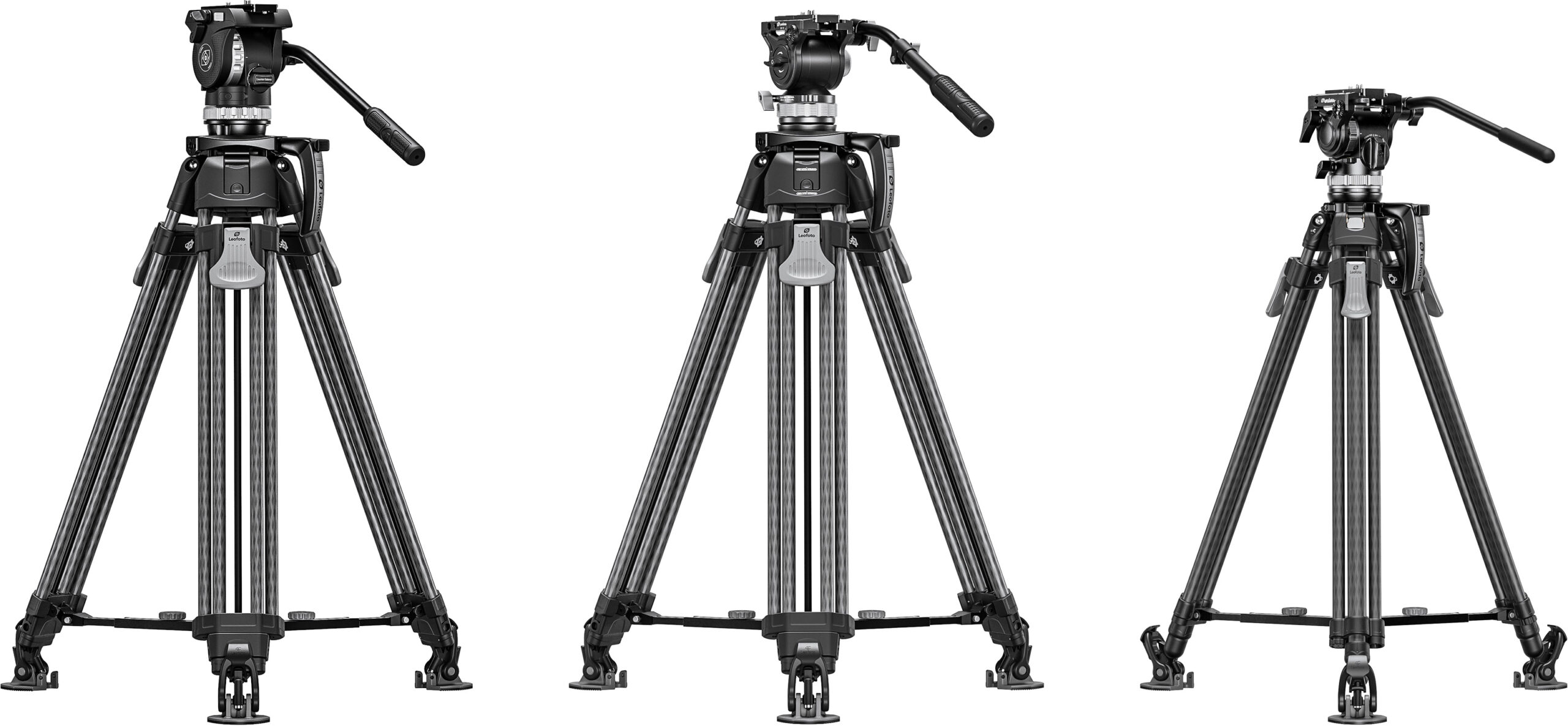

| Model | LVF-163C+FH-10 | LVF-163C++BV-15 | LVF-143C+FH-5L |
| Max. Height | 1740mm | 1720mm | 1620mm |
| Min. Height | 400mm | 380mm | 350mm |
| Folded length | 910mm | 890mm | 860mm |
| Leg Section | 3 | 3 | 3 |
| Weight | 5.28kg | 4.9kg | 4.46 |
| Max load | 8kg | 8kg | 7 |
| Leg Tube Sizes | 16mm | 16mm | 24mm |
